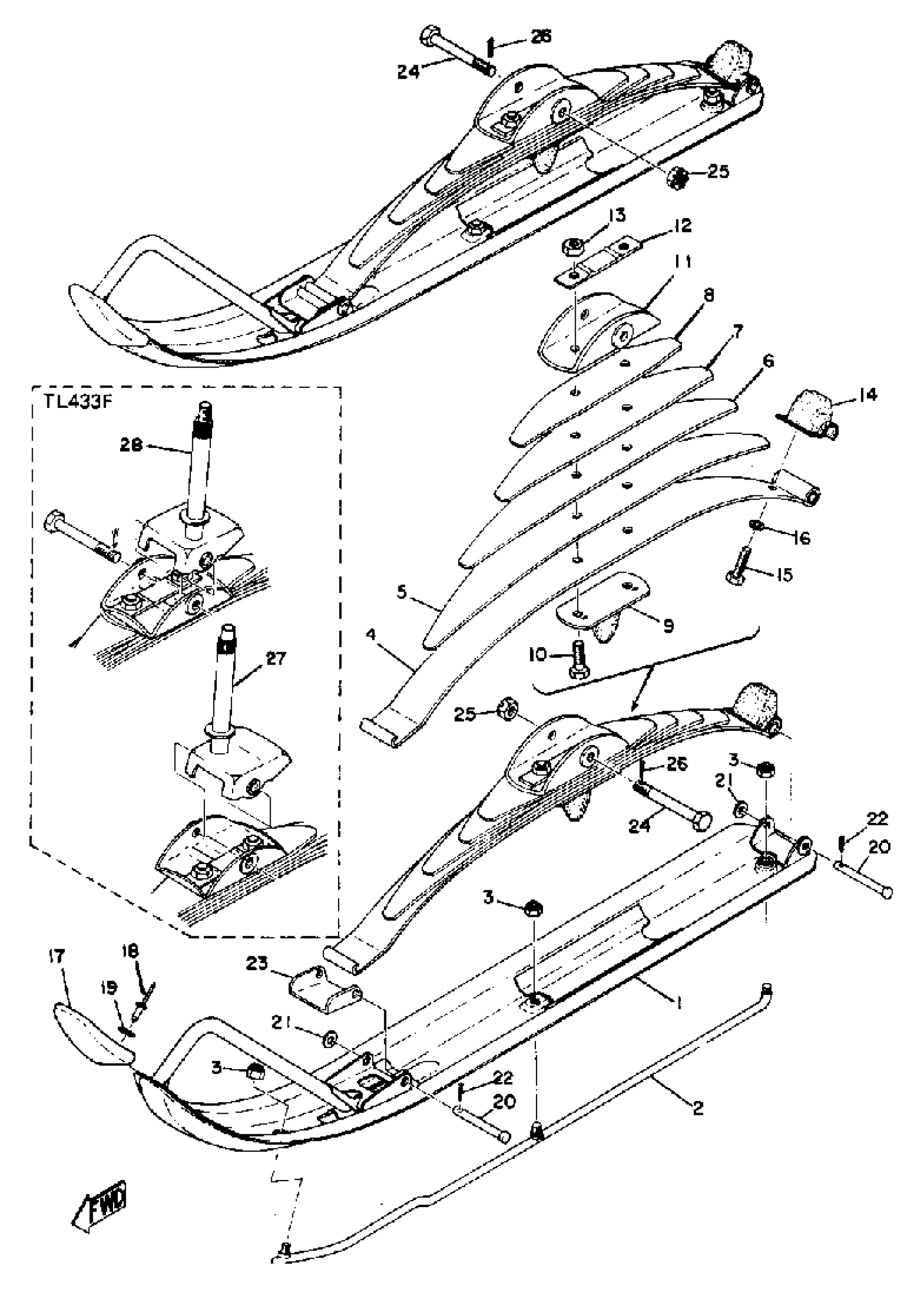

Find the part on the SKI diagram for your 1974 Yamaha TL433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TL433F SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

(863-23710-00-00)

1
Out of stock

1

SPRING ASSEMBLY 1

(874-23760-00-00)

1
Out of stock

1

NUT

90185-08055-00

1

$8.31

In stock

2

RUNNER 1

863-23731-02-00

1
Out of stock

2

SPRING ASSEMBLY 2

(874-23770-00-00)

1
Out of stock

3

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

4

LEAF 1

(865-23761-00-00)

1
Out of stock

5

LEAF 2

865-23762-10-00

1
Out of stock

6

. LEAF 3

865-23763-00-00

1
Out of stock

7

LEAF 4

(865-23764-00-00)

1
Out of stock

8

. LEAF 5

865-23771-00-00

1
Out of stock

9

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

10

. BOLT

90101-10060-00

1
Out of stock

11

SADDLE 1

(841-23766-00-00)

1
Out of stock

12

WASHER, SPEC''L SHAP

(90209-10037-00)

1
Out of stock

13

NUT(6TD)

95337-10600-00

—

$6.98

In stock

14

STOPPER 1

(841-23743-01-00)

1
Out of stock

15

BOLT, WITH HOLE

90102-10009-00

1
Out of stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

PROTECTOR, SKI

(863-23747-00-00)

1
Out of stock

18

RIVET, BLIND

(90267-40030-00)

1
Out of stock

19

—

$2.62

In stock

20

PIN, CLEVIS (801-23733-00)

90240-08035-00

1
Out of stock

21

WASHER(6TC)

92907-08200-00

—
Out of stock

22

PIN COTTER

91490-30025-00

—
Out of stock

23

PLATE, WEAR 1

802-23735-00-00

1
Out of stock

24

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

25

NUT, SLOTTED

95306-10900-00

1
Out of stock

26

PIN, COTTER

91490-20025-00

—

$1.31

In stock

27

COLUMN, SKI 1

(874-23853-00-00)

1
Out of stock

28

TANK, TQ/CONV OIL

891-21811-00-00

1
Out of stock
