1974 Yamaha TL433F Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 1974 Yamaha TL433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

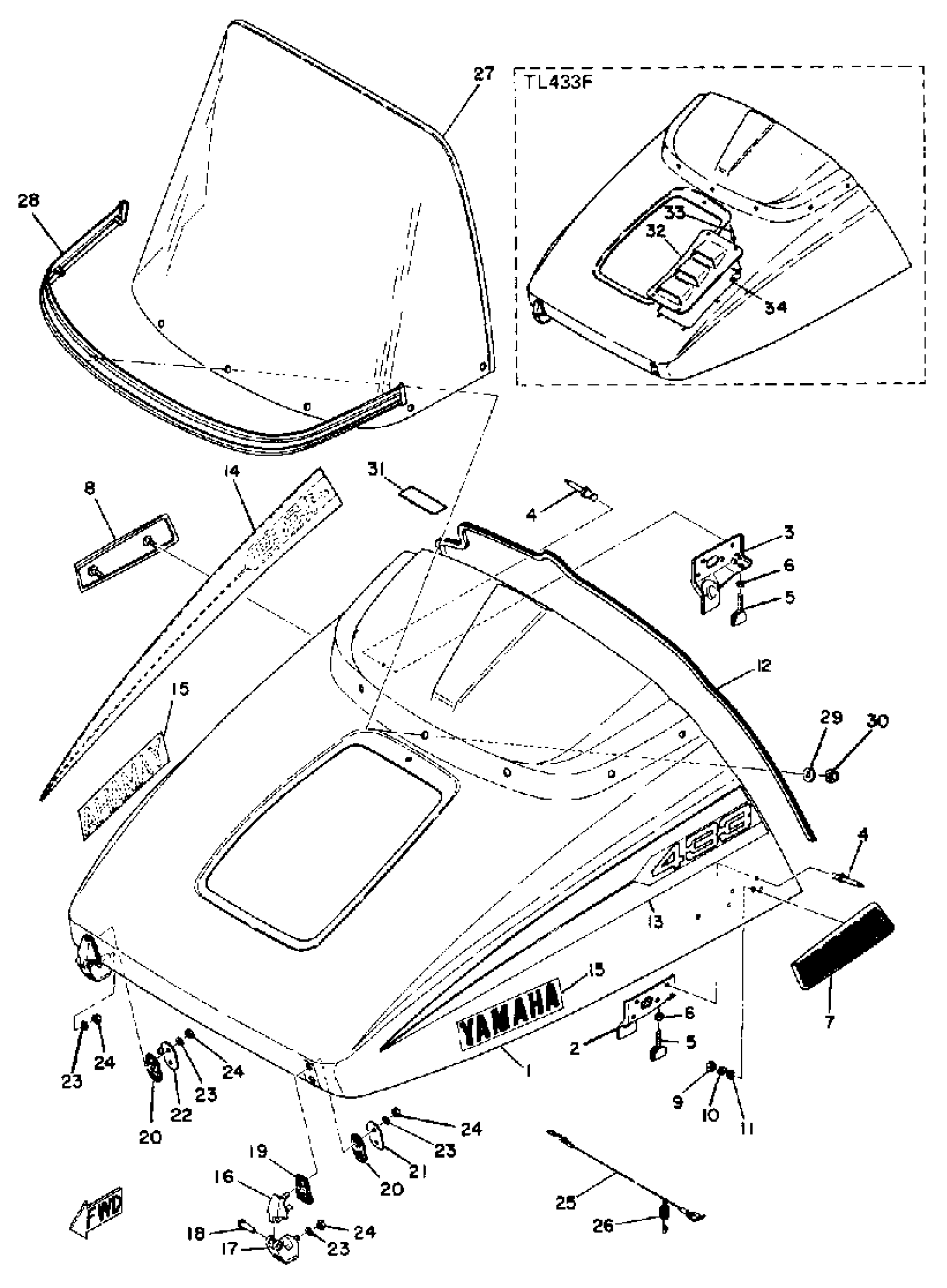

1974 Yamaha TL433F Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

(874-77111-00-00)

1
Out of stock

2

CLAMP 2

(841-77136-00-00)

1
Out of stock

3

CLAMP 4

(841-77138-00-00)

1
Out of stock

4

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

5

BODY, LATCH 1

(841-77171-01-00)

1
Out of stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

LOUVER 1

(838-77131-00-00)

1
Out of stock

8

LOUVER 2

838-77132-00-00

1
Out of stock

9

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

12

TRIM 2

(841-77166-00-00)

1
Out of stock

13

NO LONGER AVAILABLE

861-77163-00-00

1
Out of stock

14

ORNAMENT 2

(861-77164-00-00)

1
Out of stock

15

EMBLEM 7

(863-77357-00-00)

1
Out of stock

16

HINGEASSEMBLY

(841-77140-00-00)

1
Out of stock

17

HINGE 3

(841-77147-00-00)

1
Out of stock

18

PIN

90243-05003-00

1
Out of stock

19

DAMPER 1

(841-77198-00-00)

1
Out of stock

20

DAMPER 2

841-77199-00-00

1
Out of stock

21

PLATE, BACK UP 1

(841-77153-00-00)

1
Out of stock

22

PLATE, BACK UP 2

(841-77154-00-00)

1
Out of stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

STOPPER, SHROUD

8E4-77118-00-00

1
Out of stock

26

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

27

WINDSHIELD

(861-77210-00-00)

1
Out of stock

28

TRIM LOWER ASSEMBLY

(8A1-77220-00-00)

1
Out of stock

29

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

30

NUT, SELF-LOCKING

90185-05028-00

1
Out of stock

31

LABEL, SAFETY

288-21659-00-00

1
Out of stock

32

LOUVER 4

(874-77134-00-00)

1
Out of stock

33

RIVET (813)

90267-32070-00

—

$2.25

In stock

34

WASHER, PLATE 8077743700

90201-03313-00

—

$5.20

In stock
