1974 Yamaha TL433F Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1974 Yamaha TL433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

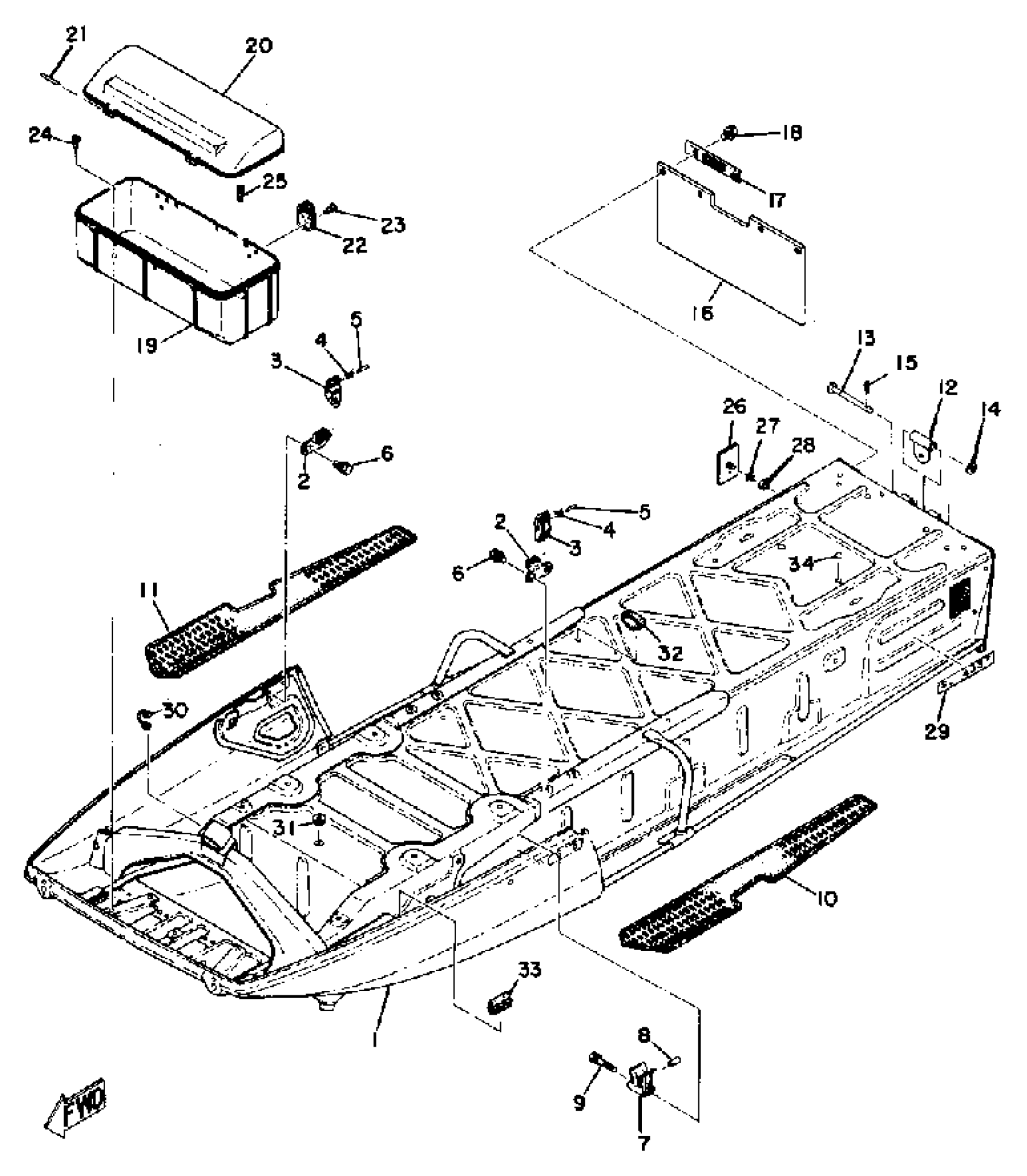

1974 Yamaha TL433F Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

806-77170-00-00

1
Out of stock

1

FRAME

(865-21910-00-00)

1
Out of stock

1

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

1

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

1

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

2

BODY, LATCH 2

(806-77172-00-00)

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

CLAMP

90464-09006-00

1
Out of stock

8

STOPPER

821-77188-01-00

1
Out of stock

9

BOLT, HEXAGON

97017-06045-00

1
Out of stock

10

COVER, FOOTREST

878-27413-00-00

1
Out of stock

11

COVER, FOOTREST

878-27423-00-00

1
Out of stock

12

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

13

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

14

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

15

PIN, COTTER

91490-25020-00

—

$2.94

In stock

16

FLAP

(802-77595-02-00)

1
Out of stock

17

PLATE, FLAP 1

(802-77593-00-00)

1
Out of stock

18

BOLT (661)

97013-06012-00

—

$4.71

In stock

19

LUGGAGE BOX

841-77391-00-00

1
Out of stock

20

COVER, LUGGAGE BOX

(8F6-77392-00-00)

1
Out of stock

21

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

22

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

23

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

24

WASHER, SPRING

92907-06100-00

—
Out of stock

24

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

24

SCREW, PAN

98507-06014-00

—

$6.18

In stock

25

WASHER, SPRING

92907-06100-00

—
Out of stock

25

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

25

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

26

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

29

EMBLEM 4

(874-77354-00-00)

1
Out of stock

30

BAND

(841-82591-00-00)

1
Out of stock

31

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

32

CLAMP

(90464-13008-00)

1
Out of stock

33

STRIP, WEATHER 1

(839-77161-00-00)

1
Out of stock

34

COVER, NUT

(867-21969-00-00)

1
Out of stock
