1974 Yamaha TL433F Flywheel Magneto Diagram

← All diagrams

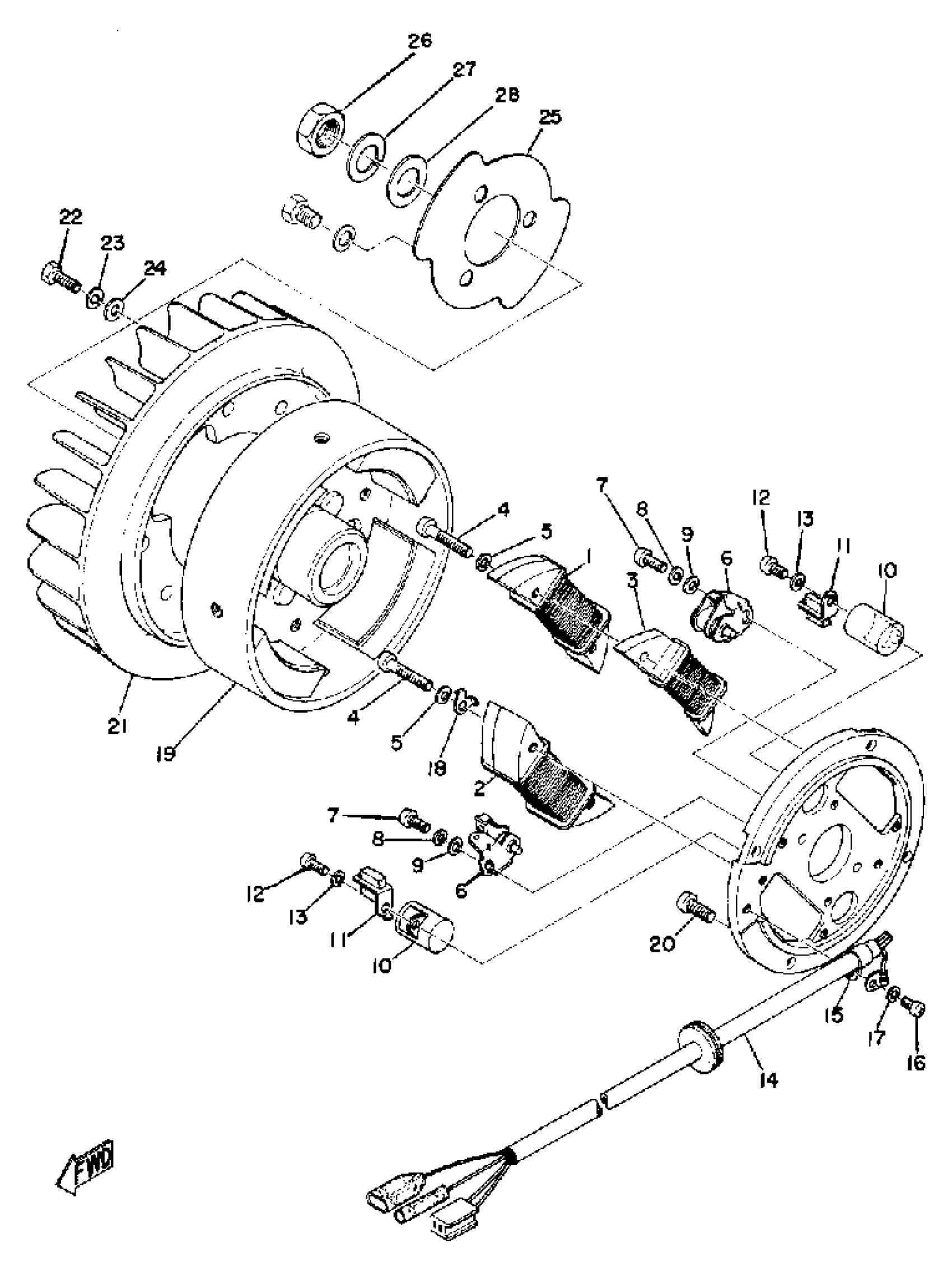

Find the part on the Flywheel Magneto diagram for your 1974 Yamaha TL433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TL433F Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHL MAGNETO ASSEMBLY

(861-81300-20-00)

1
Out of stock

1

. COIL, SOURCE

8A0-81312-20-00

1
Out of stock

2

COIL, LIGHTING 1

(838-81313-20-00)

1
Out of stock

3

. UNAVAILABLE IN PRICE BOOK

838-81314-00-00

1
Out of stock

4

. SCREW, PAN HEAD

802-81345-20-00

1
Out of stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

. CONTACT BRKR ASSEMBLY

806-81321-20-00

1

$27.71

In stock

7

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

9

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

10

. CONDENSER 1

802-81325-90-00

1
Out of stock

11

. LUBRICATOR

116-81331-20-00

1
Out of stock

12

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

LEAD WIRE ASSEMBLY

(838-81315-21-00)

1
Out of stock

15

CLAMP, LEAD

104-81328-20-00

—

$6.31

In stock

16

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

18

PLATE, TIMING

(812-81332-20-00)

1
Out of stock

19

ROTOR ASSEMBLY

(838-81350-20-00)

1
Out of stock

20

SCREW, PAN

98507-06014-00

—

$6.18

In stock

21

FAN

838-12611-00-00

1
Out of stock

22

BOLT

90101-06127-00

1
Out of stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

WASHER, PLATE

90201-06M08-00

1
Out of stock

25

COVER, HOLE

(812-81362-00-00)

1
Out of stock

26

NUT

90170-16425-00

—
Out of stock

27

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

28

WASHER

(92901-16247-00)

1
Out of stock
