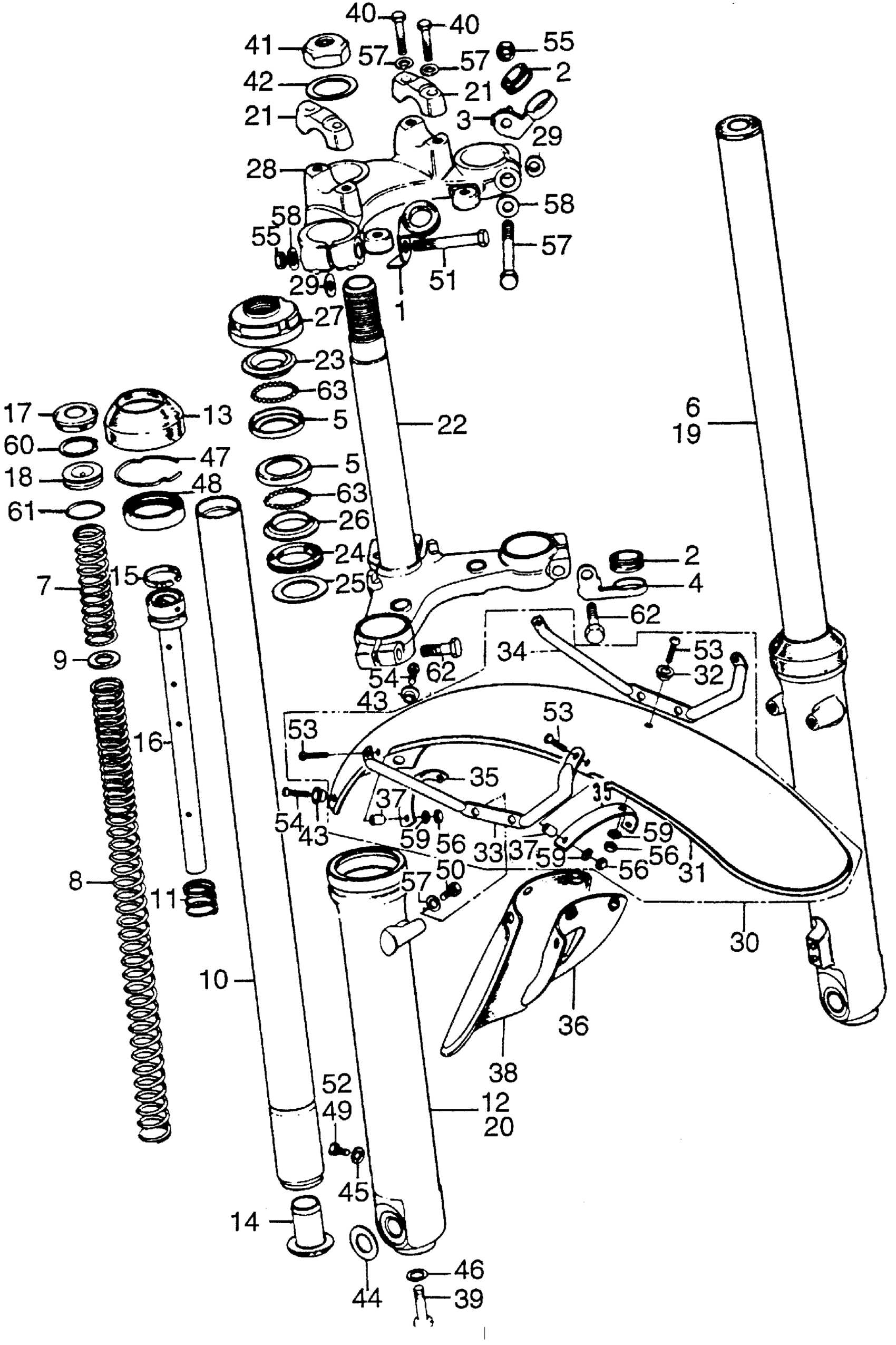

Honda TL125K2A MOTORCYCLE, JPN, VIN# TL125-1200001 FRONT FORK + FRONT FENDER + STEERING STEM K2 Diagram

CLIP, THROTTLE CABLE (NOT AVAILABLE)

17914-355-000

Unavailable

GUIDE, CABLE (INNER)

45466-329-000

$2.94

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45468-355-000

Unavailable

CLIP B, FR. BRAKE CABLE (NOT AVAILABLE)

45469-355-000

Unavailable

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.26

RACE, STEERING TOP BALL

50301-041-010

$12.26

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.26

FORK ASSY., R. FR. (SHOWA) This part replaces 51400-355-023.

51400-355-033

Unavailable

FORK ASSY., R. FR. (SHOWA)

51400-355-033

Unavailable

SPRING A, FR. FORK (NOT AVAILABLE)

51401-355-000

Unavailable

SPRING B, FR. FORK (NOT AVAILABLE)

51402-355-000

Unavailable

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-362-010

Unavailable

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-355-013

Unavailable

SPRING, FR. FORK REBOUND

51412-331-770

$4.20

CASE, R. FORK (LOWER) (SHOWA) (NOT AVAILABLE)

51421-355-003

Unavailable

DUST SEAL (SHOWA) This part replaces 51425-110-003.

91254-436-003

$16.89

DUST SEAL (SHOWA)

91254-436-003

$16.89

PIECE, OIL LOCKING (NOT AVAILABLE)

51432-331-770

Unavailable

RING, PISTON (NOT AVAILABLE)

51437-331-770

Unavailable

SEAT (LOWER) (SHOWA)

51440-355-003

Unavailable

CAP, FORK PIPE (NOT AVAILABLE) This part replaces 51449-355-003.

51449-355-013

Unavailable

CAP, FORK PIPE (NOT AVAILABLE)

51449-355-013

Unavailable

SEAT SET, SPRING (UPPER) (NOT AVAILABLE) This part replaces 51454-355-013.

51460-355-305

Unavailable

SEAT SET, SPRING (UPPER) (NOT AVAILABLE)

51460-355-305

Unavailable

FORK ASSY., L. FR. (SHOWA) This part replaces 51500-355-023.

51500-355-033

Unavailable

FORK ASSY., L. FR. (SHOWA)

51500-355-033

Unavailable

CASE, L. FORK (LOWER) (SHOWA)

51521-355-003

Unavailable

HOLDER, HANDLEBAR (UPPER)

53131-028-000

$6.71

HOLDER A1, HANDLEBAR (UPPER) This part replaces 95014-21100.

95014-21101

$6.28

HOLDER A1, HANDLEBAR (UPPER)

95014-21101

$6.28

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-355-000B

Unavailable

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$10.96

RACE, STEERING CONE (UPPER)

53211-028-010

$10.96

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$10.96

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.51

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.85

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.60

RACE, STEERING CONE (LOWER)

53212-030-010

$10.60

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.60

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.60

THREAD, STEERING HEAD TOP

53220-074-000

$15.21

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-110-305

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE) This part replaces 53231-110-000.

53230-110-305

Unavailable

SPACER, FORK TOP BRIDGE

53233-074-000

Unavailable

FENDER, FR. *NH44MS* This part replaces 61100-355-670MA.

61100-355-700MA

Unavailable

FENDER, FR. *NH44MS* This part replaces 61100-355-710MA.

61100-355-700MA

Unavailable

PANEL, FR. FENDER *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

61101-355-670MA

Unavailable

COLLAR, RIVETING

61102-329-300

$2.92

STAY, R. FR. FENDER *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

61102-355-000XW

Unavailable

STAY, L. *MRCR2* This part replaces 61103-355-670XW.

61103-355-000XW

Unavailable

PATCH, FENDER (NOT AVAILABLE)

61104-355-000

Unavailable

PLATE, FR. FENDER SPLASH GUARD

61105-355-000

Unavailable

COLLAR, FR. FENDER

61106-355-000

Unavailable

SPLASH GUARD, FR.

61114-033-000

Unavailable

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.10

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.10

BOLT, HEX. (6X28)

90117-065-000

$2.54

NUT, STEERING STEM This part replaces 90304-355-000.

90304-355-010

Unavailable

NUT, STEERING STEM

90304-355-010

Unavailable

WASHER, STEERING STEM This part replaces 90503-011-000.

90503-051-870

$2.74

WASHER, STEERING STEM

90503-051-870

$2.74

WASHER, CHAIN CASE SETTING

90522-028-000

$2.78

WASHER (12MM) (NOT AVAILABLE)

90528-110-000

Unavailable

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.38

WASHER, SPECIAL (8MM)

90544-283-000

$2.77

RING, OIL SEAL STOP

90601-354-000

$5.10

OIL SET, FR. OIL FILTER

51495-331-405

$19.90

OIL SEAL SET (FR FORK) This part replaces 91255-331-671.

51495-331-405

$19.90

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.43

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.43

BOLT, HEX. (6X8)

92101-06008-0A

$1.43

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

BOLT, HEX. (8X56) This part replaces 93000-08056-0B.

93101-08056-0B

Unavailable

BOLT, HEX. (6X8) This part replaces 93000-06008.

93000-06008-0A

Unavailable

BOLT, HEX. (6X8)

93000-06008-0A

Unavailable

BOLT, HEX. (6X8)

93101-06008-0A

$1.18

BOLT, HEX. (6X8) This part replaces 93300-06008.

93000-06008-0A

Unavailable

SCREW, PAN (5X12)

93500-05012-0A

$0.94

SCREW, PAN (6X14) This part replaces 93500-06014.

93500-06014-0A

$1.02

SCREW, PAN (6X14)

93500-06014-0A

$1.02

NUT, HEX. (8MM)

94001-08000-0S

$1.37

NUT, HEX. (5MM)

94002-05000-0S

$1.09

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94101-06800

Unavailable

WASHER, PLAIN (8MM)

94101-08000

Unavailable

WASHER, SPRING (5MM)

94111-05000

$1.09

CIRCLIP (INNER) (26MM)

94520-26000

$2.29

O-RING (19.4X2.8)

94608-40000

$1.28

BOLT, HEX. (8X32) (NOT AVAILABLE)

95100-08032

Unavailable

BALL, STEEL (#6) (3/16)

96211-06000

$0.55
