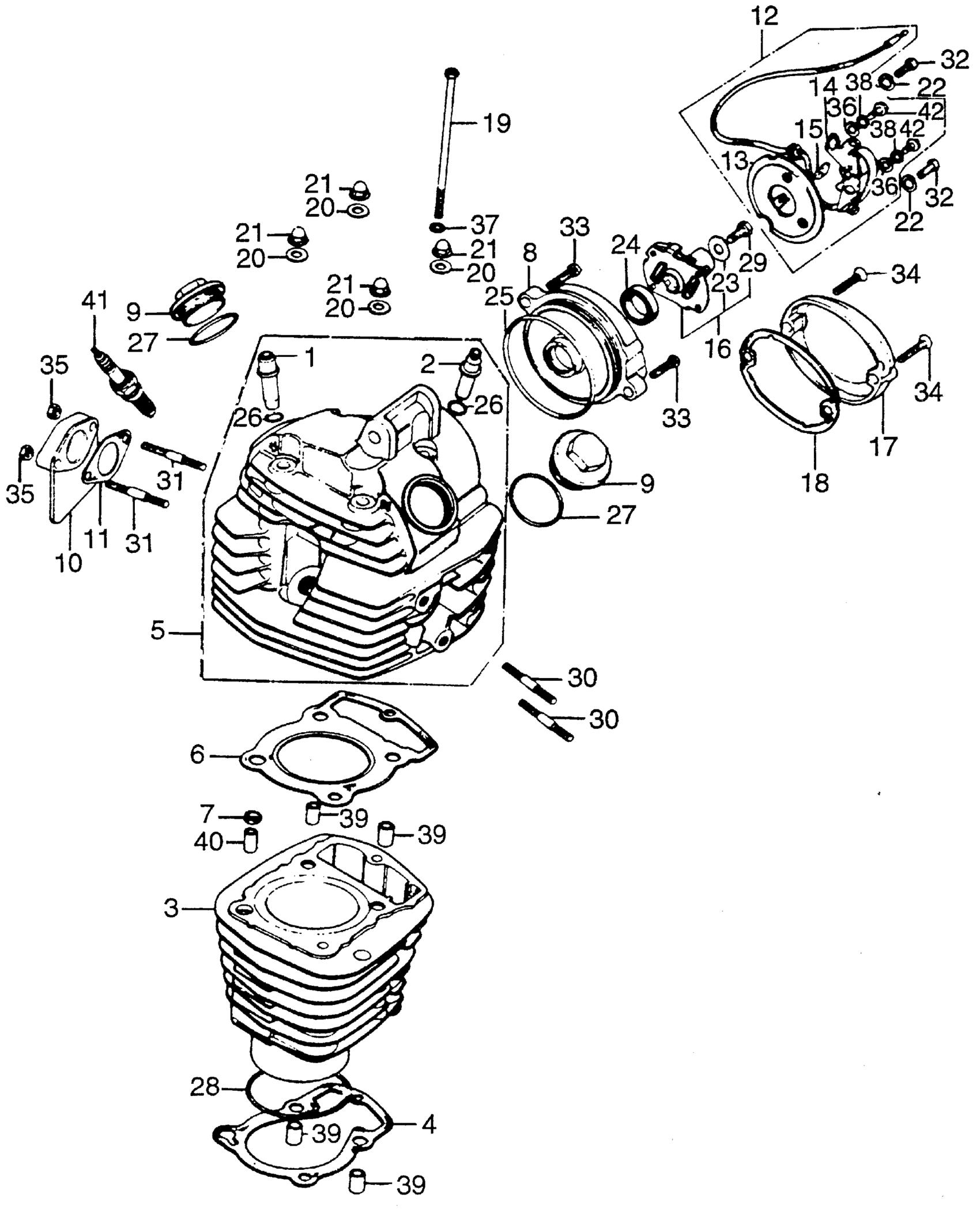

Honda TL125A MOTORCYCLE, JPN, VIN# TL125-1000003 CYLINDER + CYLINDER HEAD COVER + POINTS Diagram

#

Description
Price

1

GUIDE, VALVE

12021-107-310

Unavailable

2

GUIDE, EX. VALVE This part replaces 12023-324-310.

12023-439-300

Unavailable

3

CYLINDER (NOT AVAILABLE)

12100-324-010

Unavailable

4

GASKET, CYLINDER

12191-KAY-690

Unavailable

4

GASKET, CYLINDER This part replaces 12191-324-000.

12191-KAY-690

Unavailable

4

GASKET, CYLINDER This part replaces 12191-330-305.

12191-KAY-690

Unavailable

4

GASKET, CYLINDER This part replaces 12191-330-306.

12191-KAY-690

Unavailable

4

GASKET, CYLINDER This part replaces 12191-365-000.

12191-KAY-690

Unavailable

4

GASKET, CYLINDER This part replaces 12191-365-306.

12191-KAY-690

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE)

12200-324-010

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-331-770.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-331-771.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-331-772.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-437-020.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-437-306.

12251-437-P00

Unavailable

7

GASKET, CYLINDER STUD

12261-105-690

Unavailable

8

BASE, POINTS

12332-324-000

Unavailable

9

CAP, VALVE ADJ. This part replaces 12361-107-000.

12361-383-000

$6.40

9

CAP, VALVE ADJ.

12361-383-000

$6.40

10

INSULATOR, CARBURETOR (NOT AVAILABLE)

16213-355-000

Unavailable

11

GASKET, INSULATOR This part replaces 16229-107-000.

16229-107-306

Unavailable

11

GASKET, INSULATOR

16229-107-306

Unavailable

12

POINTS ASSY. (DENSO) (NOT AVAILABLE)

30200-329-004

Unavailable

13

PLATE, POINTS BASE (TOYO)

30201-107-154

Unavailable

13

PLATE, POINTS BASE (DENSO) (NOT AVAILABLE)

30201-329-004

Unavailable

14

POINTS (DENSO)

30202-107-004

$41.16

14

POINTS (TOYO)

30202-107-154

$26.67

15

FELT, OIL (KOKUSAN) (NOT AVAILABLE) This part replaces 30205-028-004.

30205-028-003

Unavailable

15

FELT, OIL (TOYO)

30205-300-154

Unavailable

16

ADVANCER ASSY., SPARK (DENSO)

30220-329-024

Unavailable

16

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE)

30220-355-154

Unavailable

17

COVER, POINTS

30370-324-000

Unavailable

18

GASKET, POINTS COVER This part replaces 30372-107-000.

30372-107-307

Unavailable

18

GASKET, POINTS COVER

30372-107-307

Unavailable

19

BOLT, HS (6MM)

90081-107-000

Unavailable

20

WASHER, SEALING (8MM)

90442-028-000

$1.71

21

NUT, CAP (8MM)

90443-107-000

$2.78

22

WASHER (5MM)

90482-028-000

$2.12

23

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.15

24

OIL SEAL (15X25X7) This part replaces 91202-107-003.

91203-965-003

$6.38

24

OIL SEAL (15X25X7)

91203-965-003

$6.38

25

O-RING (75X2.5)

91301-107-000

$4.85

26

O-RING (10X1.6)

91301-200-000

$2.99

27

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

28

O-RING (61.8X2.0)

91304-286-000

Unavailable

29

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.52

29

BOLT, HEX. (6X14)

92101-06014-0A

$1.52

30

BOLT, STUD (6X35) This part replaces 92700-06035-3E.

92900-06020-3E

Unavailable

30

BOLT, STUD (6X35) This part replaces 92700-06035-35.

92900-06020-3E

Unavailable

30

BOLT, STUD (6X35)

92900-06020-3E

Unavailable

31

BOLT 2, STUD (6X32) This part replaces 92700-06045.

92900-06032-0E

$3.19

31

BOLT 2, STUD (6X32) This part replaces 92900-06032-0B.

92900-06032-0E

$3.19

31

BOLT 2, STUD (6X32)

92900-06032-0E

$3.19

32

SCREW, PAN (5X12)

93500-05012-0A

Unavailable

33

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.23

34

SCREW, OVAL (5X20)

93700-05020-0B

$1.17

35

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.37

35

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.37

35

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.37

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.37

35

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.37

35

NUT, HEX. (6MM)

94001-06200-0S

$1.37

35

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.37

36

WASHER, PLAIN (4MM)

94101-04000

$0.95

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

37

WASHER, PLAIN (6MM)

94101-06800

Unavailable

38

WASHER, SPRING (4MM)

94111-04000

$1.03

39

PIN A, DOWEL (10X14)

94301-10140

Unavailable

40

PIN A, DOWEL (10X20)

94301-10200

Unavailable

41

SPARK PLUG (D8EA) (NGK) This part replaces 98069-38710.

98069-58717

Unavailable

41

SPARK PLUG (D8EA) (NGK)

98069-58717

Unavailable

41

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58717-S.

98069-58717

Unavailable

41

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58720.

98069-58717

Unavailable

41

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58721.

98069-58717

Unavailable

41

SPARK PLUG (D8EA) (NGK) This part replaces 98079-58721.

98069-58717

Unavailable

42

SCREW, PAN (4X6) This part replaces 99500-04006-0A.

93500-04006-0A

$0.86

42

SCREW, PAN (4X6) This part replaces 99500-04007-0A.

93500-04006-0A

$0.86
