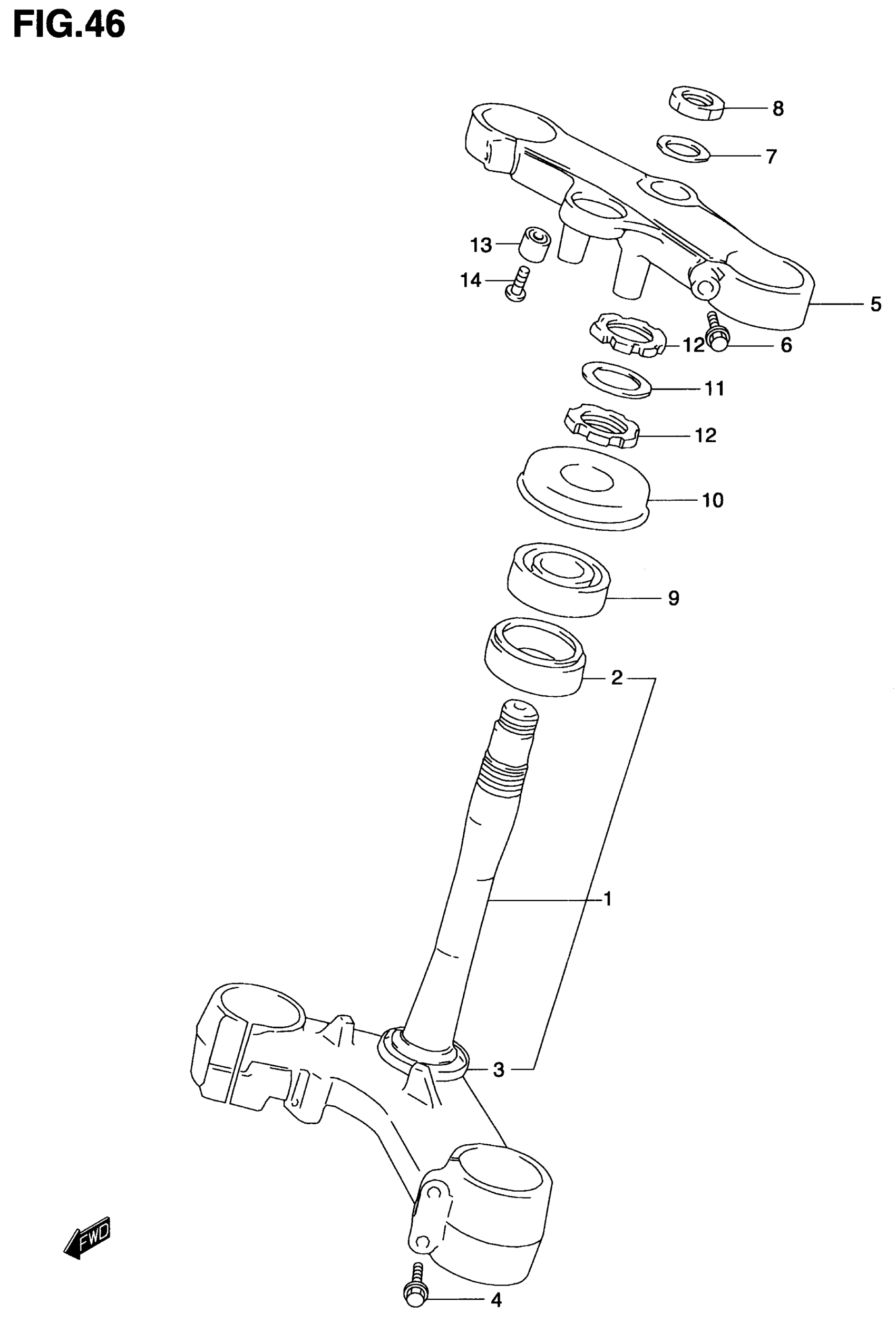

Suzuki TL1000S (2001) STEERING STEM (MODEL V) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-02F00

Unavailable

2

BEARING (30X55X17)

09267-30010

$43.41

3

SEAL, STEM LOWER

51644-12C00

$8.65

4

BOLT

01550-08407

$2.63

5

HEAD, STEERING STEM This part replaces 51311-02F00.

51311-02F10

Unavailable

6

BOLT | NO STEERING DAMPER

01550-08357

$3.19

6

BOLT, LH (8X32) | WITH STEERING DAMPER

51328-03FA0

Unavailable

6

BOLT, RH (8X35) | WITH STEERING DAMPER

01550-08357

$3.19

7

WASHER | NO STEERING DAMPER

51356-27C00

$7.62

7

WASHER | WITH STEERING DAMPER

51723-02F00

Unavailable

8

NUT | NO STEERING DAMPER

51353-02F00

Unavailable

8

NUT | WITH STEERING DAMPER

51353-02F10

Unavailable

9

BEARING (30X55X17)

09267-30010

$43.41

10

SEAL, STEERING UPR DUST

51643-33E00

$14.66

11

WASHER, STEM

51641-33E00

$5.67

12

NUT, STEM

51631-33E00

$21.64

13

BALANCER, BRACKET UPPER

56278-02F00

Unavailable

14

SCREW This part replaces 02142-06303.

02142-0630B

$3.30
