Description

Price

1

STAND, PROP

42310-02F10

Unavailable

2

BOLT, PROP STAND

09111-10027

$3.08

2A

WASHER | MODEL W/X/Y/K1

09164-08015

$2.90

3

NUT, REAR | MODEL V This part replaces 08319-21103.

08319-2110A

$2.29

3

NUT | MODEL W/X/Y/K1

09159-10097

$5.10

4

SPRING, INNER

09443-14066

$4.97

5

SPRING, OUTER

09443-19012

$5.31

6

BRACKET, PROP STAND

42330-02F00

Unavailable

7

BOLT This part replaces 07120-08303.

07120-0830A

$4.02

8

LOCK WASHER | MODEL V This part replaces 08321-01083.

08321-0108A

$1.83

9

PEDAL, BRAKE

43111-33E00

$168.72

10

WASHER

09160-18022

$2.80

11

HOOK, RETURN SPRING

43561-33E00

$9.97

12

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45

13

SPRING, RETURN

09443-11030

$3.33

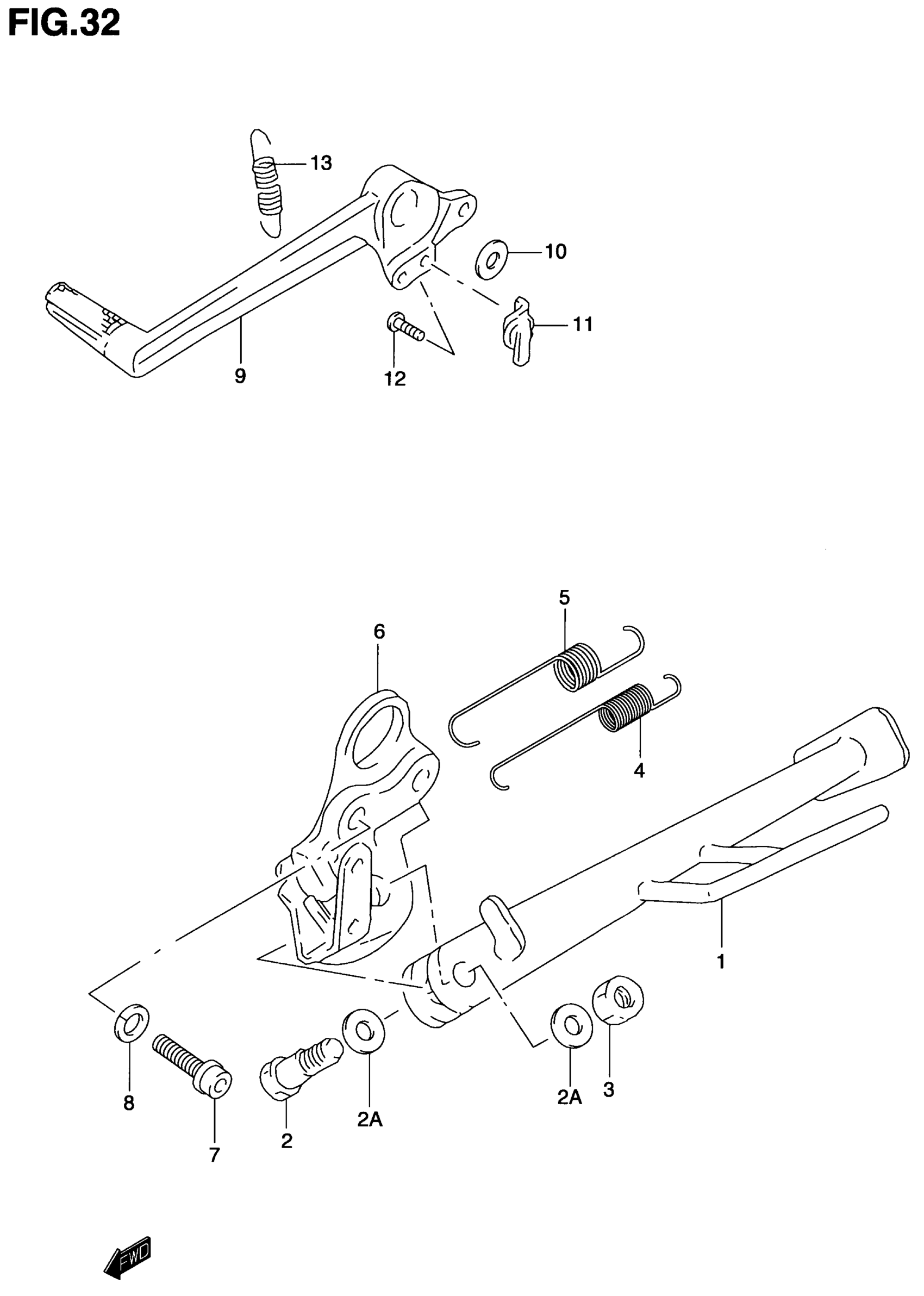

Suzuki TL1000S (2001) STAND Diagram
