2001 Suzuki TL1000S Oil Pump / Fuel Pump Diagram

← All diagrams

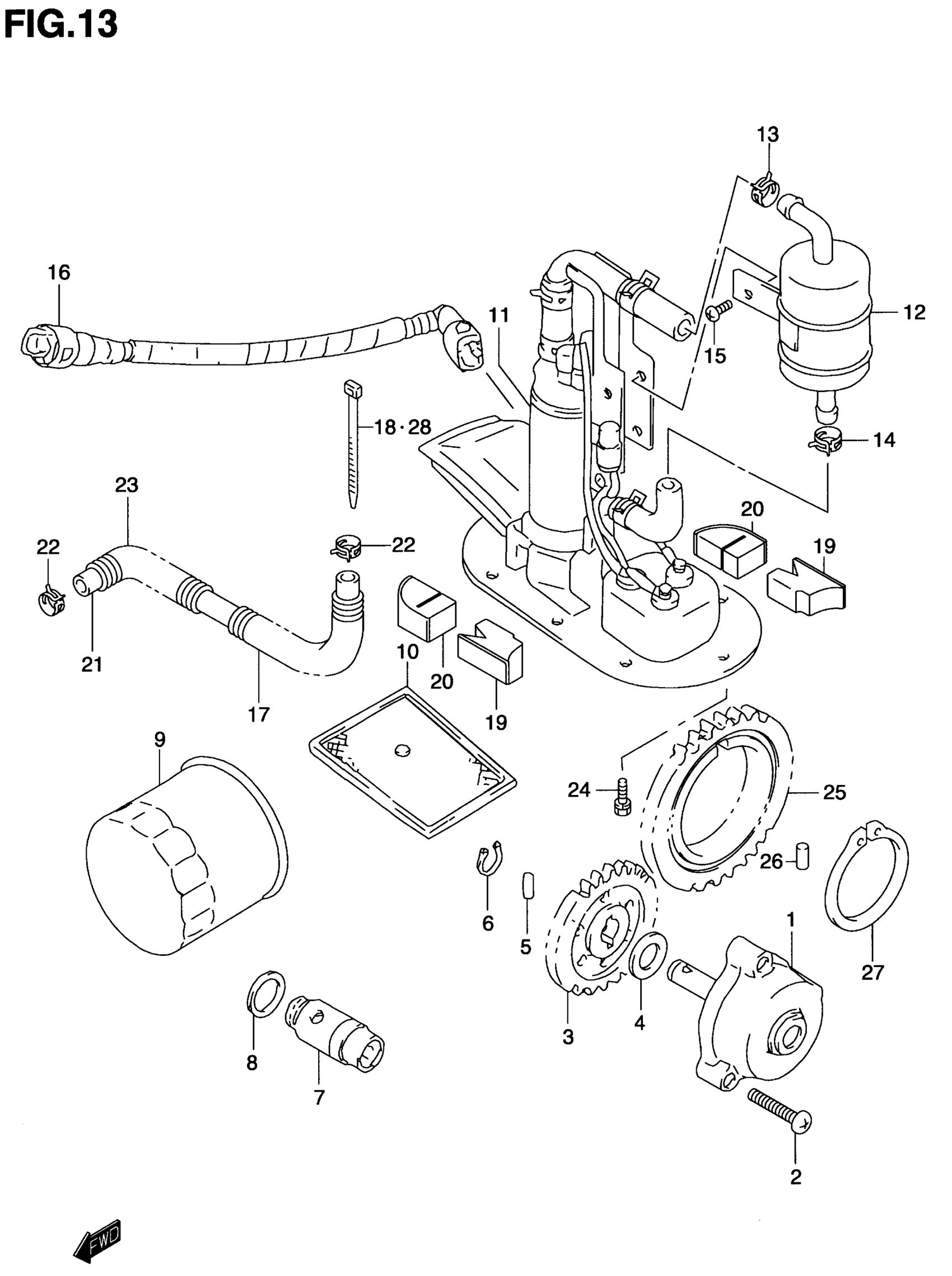

Find the part on the Oil Pump / Fuel Pump diagram for your 2001 Suzuki TL1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki TL1000S Oil Pump / Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,ENG OIL | MODEL V This part replaces 16400-02F00.

16400-02FB0

1
Out of stock

1

PUMP ASSY,ENG OIL | MODEL W/X This part replaces 16400-02FA0.

16400-02FB0

1
Out of stock

1

PUMP ASSY,ENG OIL | MODEL Y/K1

16400-02FB0

1
Out of stock

2

SCREW This part replaces 02112-06253.

02112-0625A

3
Out of stock

3

GEAR, OIL PUMP DRIVEN

16331-02F00

1
Out of stock

4

WASHER

09181-10158

1
Out of stock

5

PIN

09261-04009

1
Out of stock

6

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

7

VALVE ASSY, OIL RELIEF

16440-33E00

1
Out of stock

8

GASKET

09168-16002

1
Out of stock

9

FILTER, ENGINE OIL This part replaces 16510-34E00.

16510-07J00

1
Out of stock

10

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

1
Out of stock

11

PUMP ASSY, FUEL | Includes Item(s) 12 - 15

15100-02F00

1
Out of stock

12

FILTER, FUEL

15410-02F10

1
Out of stock

13

CLIP This part replaces 09401-13410.

09401-12414

1
Out of stock

14

CLIP This part replaces 09401-13410.

09401-12414

1
Out of stock

15

SCREW This part replaces 02112-34063.

02112-3406A

2
Out of stock

16

HOSE, FUEL

15810-02F00

1
Out of stock

17

PROTECTOR

15819-02F00

1
Out of stock

18

CLAMP (L:125) This part replaces 09407-08401.

09407-14403

2
Out of stock

19

SPACER, FUEL PUMP NO.1

15111-02F00

2
Out of stock

20

SPACER, FUEL PUMP NO.2

15112-02F00

2
Out of stock

21

HOSE | L:600?360

09355-54115-600

1
Out of stock

22

CLIP (ID:10.5,H:8) | MODEL V

09401-10409

2
Out of stock

22

CLIP | MODEL W/X/Y/K1

09401-11411

2
Out of stock

23

SPRING This part replaces 09440-13037.

09440-13037-XC0

1
Out of stock

24

BOLT This part replaces 15211-02F00..

09103-05017

8
Out of stock

25

GEAR, OIL PUMP DRIVE

16321-02F00

1
Out of stock

26

PIN

09261-06002

1
Out of stock

27

CIRCLIP This part replaces 08331-31506.

08331-31509

1
Out of stock

28

CLAMP, FUEL PUMP WIRE

09407-14403

1
Out of stock
