2003 Suzuki TL1000R Under Cowling Diagram

← All diagrams

Find the part on the Under Cowling diagram for your 2003 Suzuki TL1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

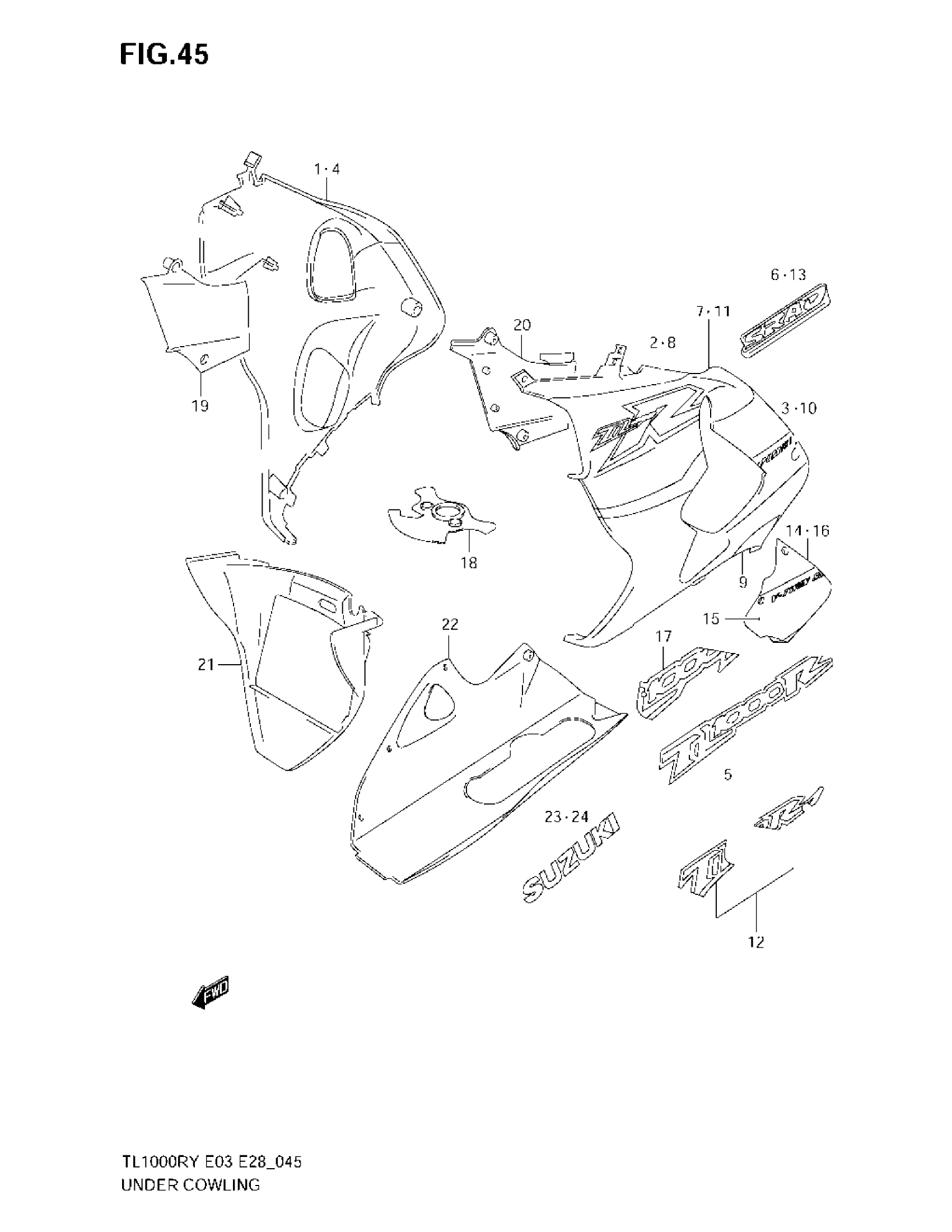

2003 Suzuki TL1000R Under Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING, UNDER RH | FOR L99; Includes Item(s) 2 - 3

94407-02FA0-M18

1
Out of stock

2

EMBLEM, RH

68181-02F00-K8T

1
Out of stock

3

TAPE, RH

68185-02F00-K3G

1
Out of stock

4

COWLING, UNDER RH (YELLOW) | Includes Item(s) 5 - 6

94407-02FB0-163

1
Out of stock

5

EMBLEM, "1000R" RH | FOR 163

68181-02F10-K8W

1
Out of stock

6

EMBLEM | FOR 163

68182-02F00-K8Z

1
Out of stock

7

COWLING, UNDER LH | FOR L99; Includes Item(s) 8 - 10

94408-02FA0-M18

1
Out of stock

8

EMBLEM, LH

68191-02F00-K8T

1
Out of stock

9

TAPE, LH (BLACK)

68186-02F00-019

1
Out of stock

10

TAPE SET, LH

68190-02F00-K3G

1
Out of stock

11

COWLING, UNDER LH (YELLOW) | Includes Item(s) 12 - 13

94408-02FB0-163

1
Out of stock

12

EMBLEM SET, "1000R" LH | FOR 163

68190-02F10-K8W

1
Out of stock

13

EMBLEM | FOR 163

68182-02F00-K8Z

1
Out of stock

14

LID ASSY, LOWER LH (WHITE) | FOR L99; Includes Item(s) 15

94405-02FA0-0JW

1
Out of stock

15

EMBLEM, LID LH

68199-02F00-K3G

1
Out of stock

16

LID ASSY, LOWER LH (YELLOW) | Includes Item(s) 17

94405-02FB0-163

1
Out of stock

17

EMBLEM, LID LH | FOR 163

68199-02F11-K8W

1
Out of stock

18

COVER, LOWER BRACKET

94458-02FA0

1
Out of stock

19

COWLING, INNER RH

94461-02FA0

1
Out of stock

20

COWLING, INNER LH

94462-02FA0

1
Out of stock

21

COWLING, UNDER CENTER

94490-02FA0

1
Out of stock

22

COWLING, UNDER REAR (BLACK) | FOR L99

94606-02FA0-019

1
Out of stock

22

COWLING, UNDER REAR (GRAY) | FOR 163; Includes Item(s) 23 - 24

94606-02FA0-35W

1
Out of stock

23

EMBLEM, RH (WHITE) | FOR 019

68191-02F10-0JW

1
Out of stock

23

EMBLEM, RH (CHARCOAL) | FOR 35W

68191-02F10-24K

1
Out of stock

24

EMBLEM, LH (WHITE) | FOR 019

68181-33C20-0JW

1
Out of stock

24

EMBLEM, LH (CHARCOAL) | FOR 35W

68181-33C20-24K

1
Out of stock

25

COLOR :

SPECIAL NOTE

—
Out of stock
