2003 Suzuki TL1000R Under Cowling Diagram

← All diagrams

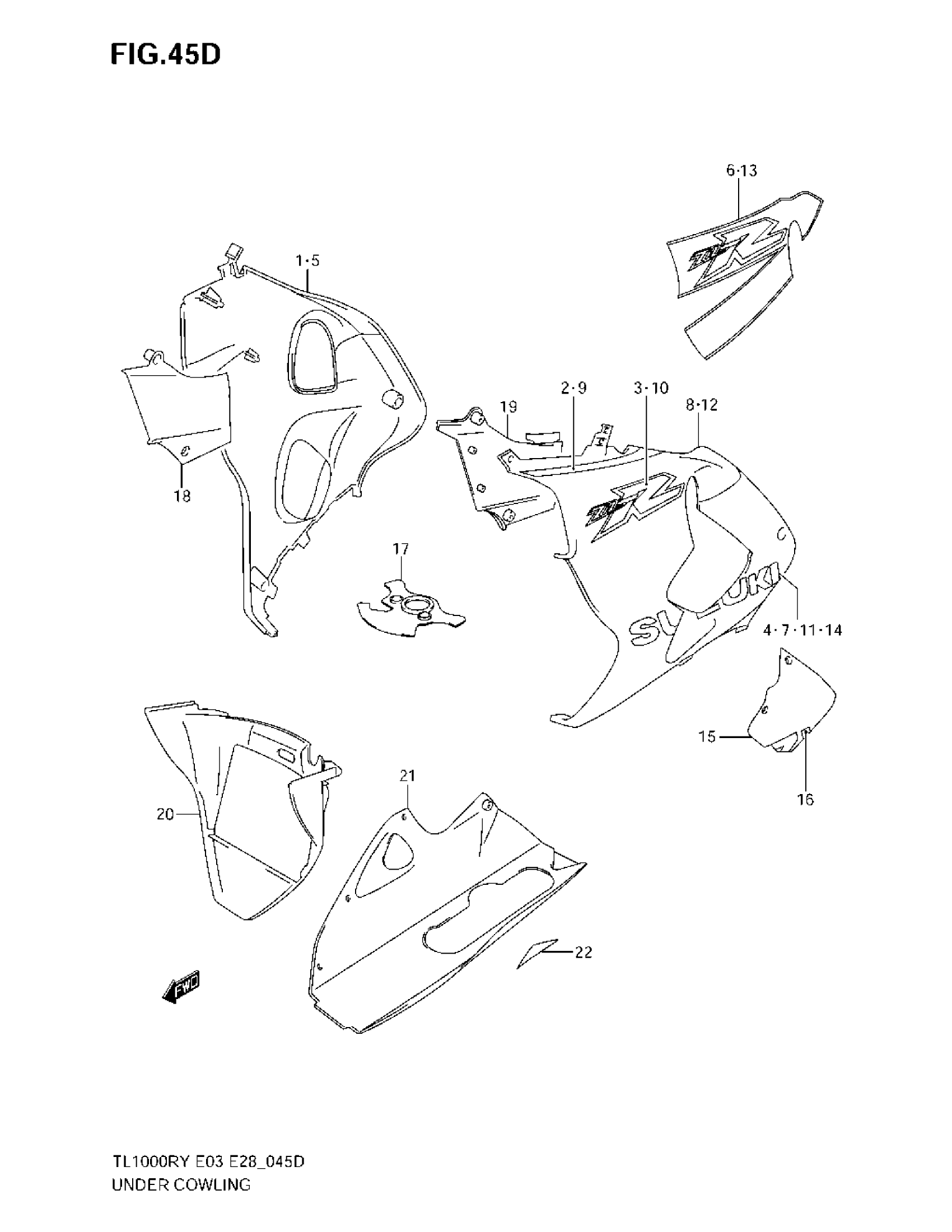

Find the part on the Under Cowling diagram for your 2003 Suzuki TL1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki TL1000R Under Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL ASSY, UNDER RH | FOR L99; Includes Item(s) 2 - 4

94407-02FJ0-M18

1
Out of stock

2

TAPE, UPPER RH (BLUE)

68185-02FB0-1LF

1
Out of stock

3

EMBLEM, "TL1000R"

68181-02FD0-HW3

1
Out of stock

4

EMBLEM, "SUZUKI" (WHITE)

68181-02FC0-0JW

1
Out of stock

5

COWL ASSY, UNDER RH | FOR Y9H; Includes Item(s) 6 - 7

94407-02FK0-BP9

1
Out of stock

6

TAPE, UPPER RH

68185-02FC0-YZ8

1
Out of stock

7

EMBLEM, "SUZUKI" (SILVER)

68181-02FC0-YD8

1
Out of stock

8

COWL ASSY, UNDER LH | FOR L99; Includes Item(s) 9 - 11

94408-02FJ0-M18

1
Out of stock

9

TAPE, UPPER LH (BLUE)

68195-02FB0-1LF

1
Out of stock

10

EMBLEM, "TL1000R"

68191-02FD0-HW3

1
Out of stock

11

EMBLEM, "SUZUKI" (WHITE)

68191-02FC0-0JW

1
Out of stock

12

COWL ASSY, UNDER LH | FOR BP9; Includes Item(s) 13 - 14

94408-02FK0-BP9

1
Out of stock

13

TAPE, UPPER LH

68195-02FC0-YZ8

1
Out of stock

14

EMBLEM, "SUZUKI" (SILVER)

68191-02FC0-YD8

1
Out of stock

15

LID ASSY, LH | FOR L99

94405-02FG0-M18

1
Out of stock

15

LID ASSY, LH | FOR Y9H; Includes Item(s) 16 - 16

94405-02FG0-BP9

1
Out of stock

16

EMBLEM (WHITE) | FOR M18

68199-02FD0-0JW

1
Out of stock

16

EMBLEM (SILVER) | FOR BP9

68199-02FD0-YD8

1
Out of stock

17

COVER, LOWER BRACKET

94458-02FA0

1
Out of stock

18

COWLING, INNER RH

94461-02FA0

1
Out of stock

19

COWLING, INNER LH

94462-02FA0

1
Out of stock

20

COWLING, CENTER

94490-02FA0

1
Out of stock

21

COWL, UNDER REAR (BLUE) | FOR L99

94606-02FC0-1LE

1
Out of stock

21

COWL, UNDER REAR (BLACK) | FOR Y9H; Includes Item(s) 22 - 22

94606-02FC0-Y7L

1
Out of stock

22

TAPE SET (WHITE) | FOR 1LE

68180-02FC0-0JW

1
Out of stock

22

TAPE SET (YELLOW) | FOR Y7L

68180-02FC0-Y9H

1
Out of stock

23

COLOR :

SPECIAL NOTE

—
Out of stock
← Under Cowling Under Cowling →
