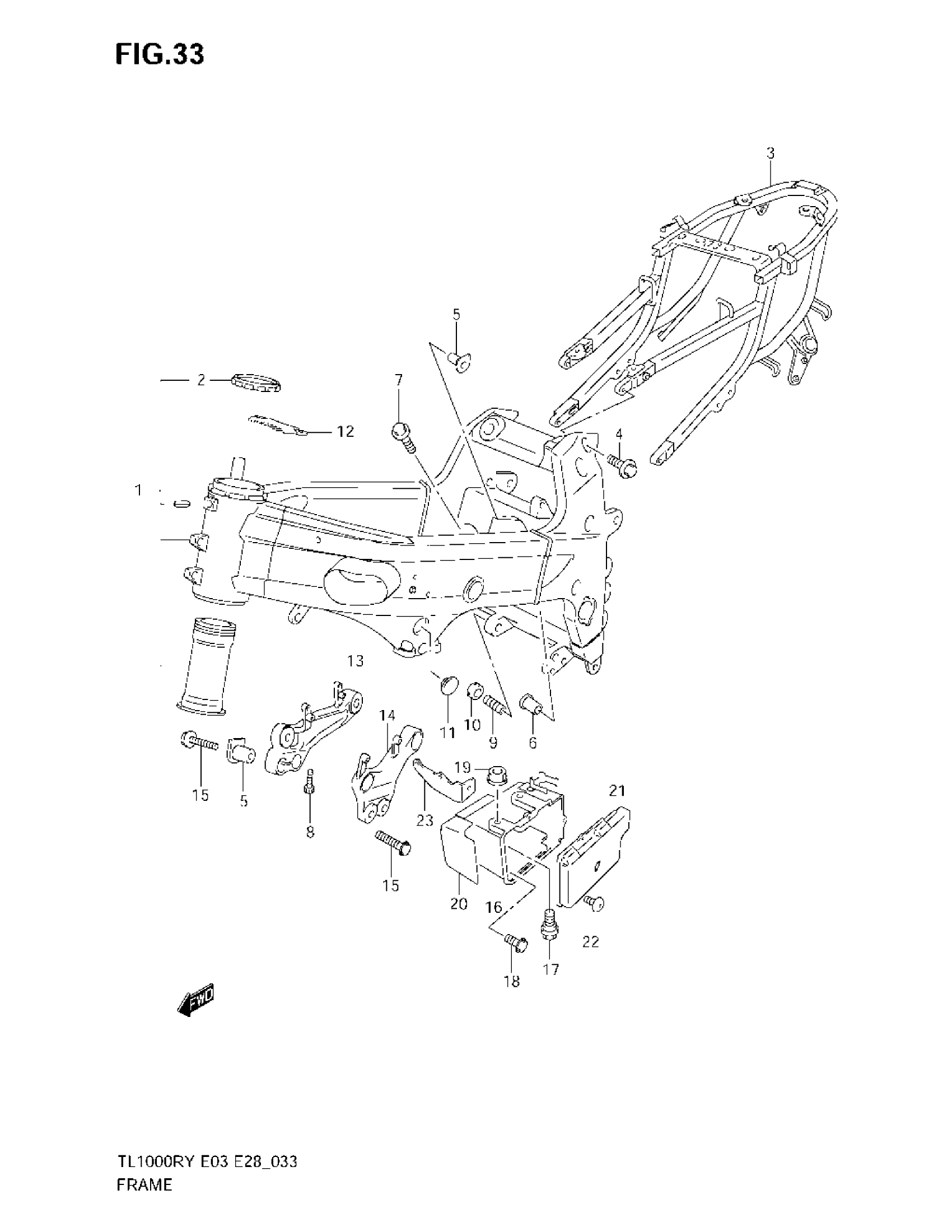

Suzuki TL1000R (2003) FRAME Diagram

#

Description
Price

1

FRAME SET | Includes Item(s) 2

41101-02820

Unavailable

2

NUT, STEM PIPE

42621-02FA0

Unavailable

3

RAIL, SEAT

41200-02FA0

Unavailable

4

BOLT, SEAT RAIL

09103-10296

$6.07

5

SPACER, ENGINE MOUNT

41915-02FA0

Unavailable

6

SPACER, REAR UPPER RH

41935-02FA0

Unavailable

7

BOLT This part replaces 01550-08253.

01550-0825A

$2.31

8

BOLT This part replaces 07130-08253.

07130-0825B

$3.04

9

BOLT, CRANKCASE ADJUST RH

41921-33E11

$55.78

10

NUT,CRANK CASE ADJUST This part replaces 41922-33E10.

41922-33E30

$24.80

11

PLUG This part replaces 09250-06001.

09250-06005

$2.35

12

PLATE, STEM NUT

42622-02FA0

Unavailable

13

BRACKET, FRONT RH

41911-02FA1

Unavailable

14

BRACKET, FRONT LH

41921-02FA1

Unavailable

15

BOLT This part replaces 01550-10403.

01550-1040A

$3.25

16

HOLDER, BATTERY

41540-02FA0

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 09111-08059.

09111-08059-XC0

Unavailable

18

BOLT, LOWER | MODEL W/X

09111-06066

$2.64

18

BOLT, LOWER | MODEL Y/K1/K2/K3

09113-06001

$2.75

19

NUT This part replaces 08310-00053.

08310-0005A

$1.83

20

SHIELD, BATTERY HOLDER

41548-02FA0

Unavailable

21

CAP, BATTERY HOLDER

41561-02FA0

$30.72

22

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

23

PLATE, LOWER

41570-02FA0

Unavailable
