2003 Suzuki TL1000R Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2003 Suzuki TL1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

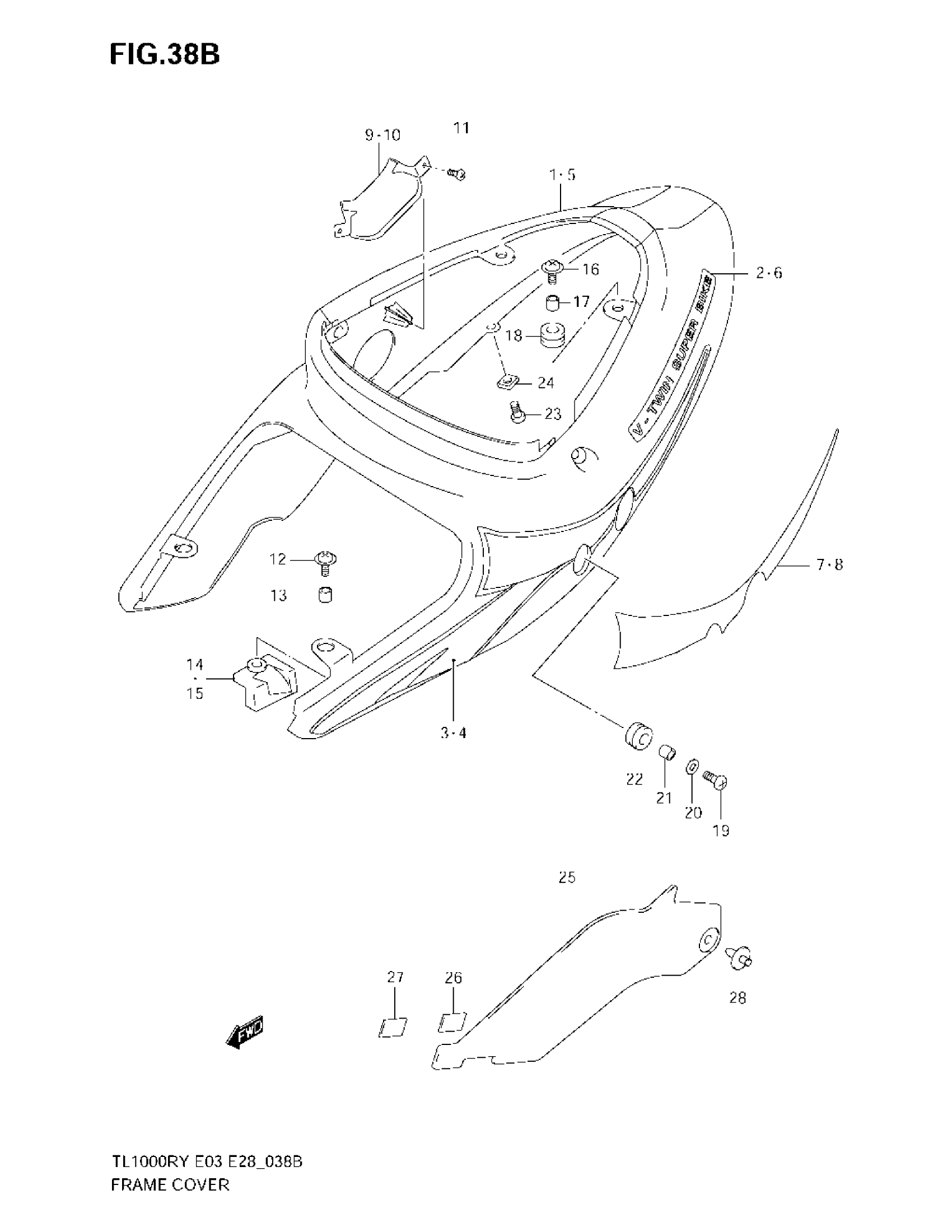

2003 Suzuki TL1000R Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME | FOR L99; Includes Item(s) 2 - 4

47110-02FE0-3SP

1
Out of stock

2

EMBLEM

68131-02FA0-3SP

2
Out of stock

3

TAPE SET, RH

68135-02FB0-CA5

1
Out of stock

4

TAPE SET, LH

68145-02FB0-CA5

1
Out of stock

5

COVER, FRAME | FOR Y9H; Includes Item(s) 6 - 8

47110-02FF0-Z9X

1
Out of stock

6

EMBLEM

68131-02FA0-BZ9

2
Out of stock

7

TAPE, RH (YELLOW)

68135-02FC0-Y9H

1
Out of stock

8

TAPE, LH (YELLOW)

68145-02FC0-Y9H

1
Out of stock

9

CAP, RH

47511-02FA0

1
Out of stock

10

CAP, LH

47521-02FA0

1
Out of stock

11

SCREW This part replaces 03541-04163.

03541-0416A

4
Out of stock

12

SCREW, FRONT

09136-06022

2
Out of stock

13

SPACER

09180-06263

2
Out of stock

14

CUSHION,FRAME C This part replaces 47161-02FA0.

47161-02FA1

1
Out of stock

15

CUSHION,FRAME C This part replaces 47261-02FA0.

47261-02FA1

1
Out of stock

16

SCREW, UPPER

09136-06105

2
Out of stock

17

SPACER

09180-06286

2
Out of stock

18

CUSHION

09320-10045

2

$3.63

In stock

19

SCREW, SIDE

09139-06071

2
Out of stock

20

WASHER

09160-06054

2
Out of stock

21

SPACER

09180-06258

2
Out of stock

22

CUSHION This part replaces 94433-26B00.

94433-26B01

2
Out of stock

23

CLIP, REAR

09409-07313

2
Out of stock

24

NUT

09148-05038

2
Out of stock

25

COVER, FRAME FRONT

47321-02FA0

1
Out of stock

26

FASTENER, NO.1

47322-02FA0

3
Out of stock

27

FASTENER, NO.2

47323-02FA0

3
Out of stock

28

CLIP, FRONT (GRAY)

09409-07330-6GS

1
Out of stock

29

COLOR :

SPECIAL NOTE

—
Out of stock
