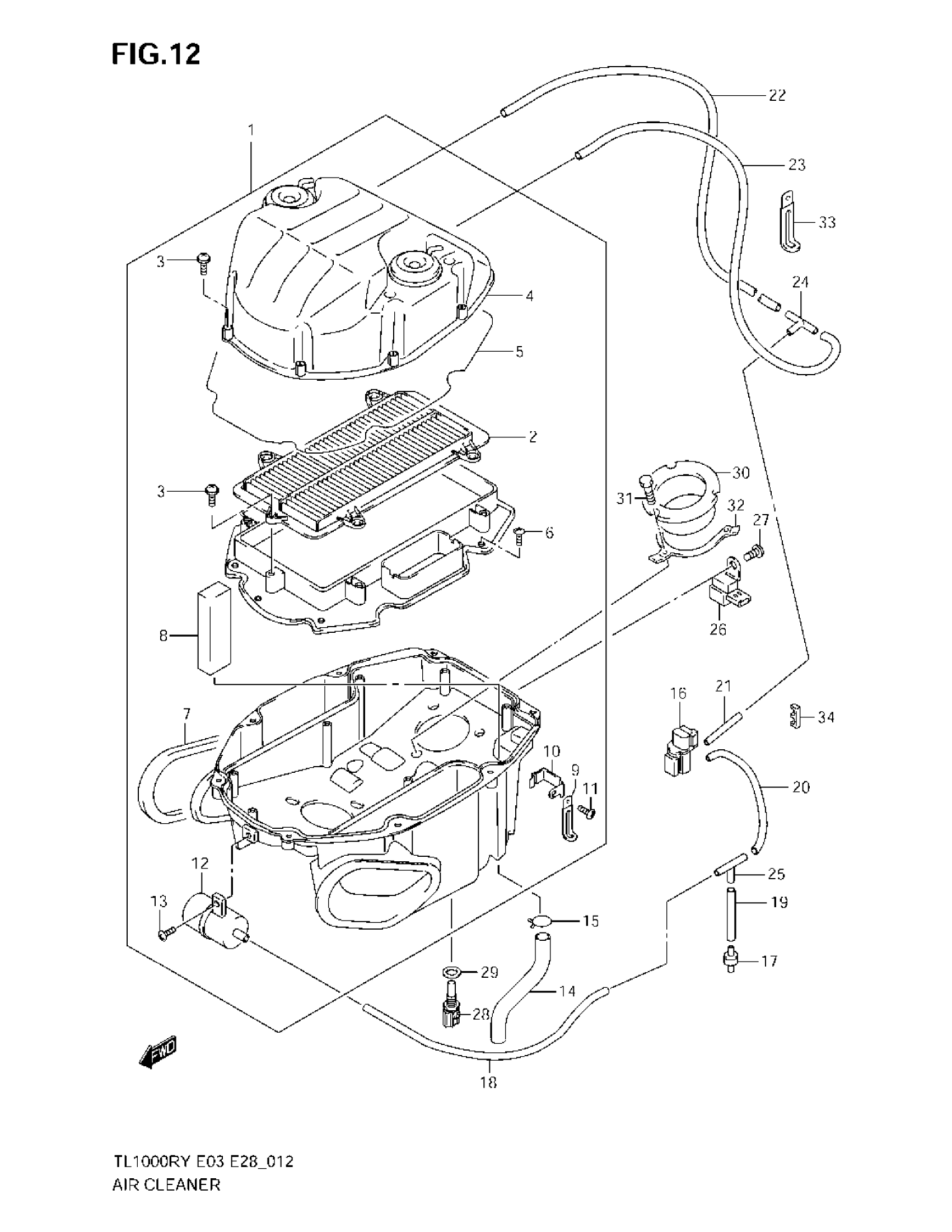

Suzuki TL1000R (2003) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL W/X/Y This part replaces 13700-02FB0.

13700-02FA0

Unavailable

1

CLEANER ASSY, AIR | MODEL K1/K2/K3; Includes Item(s) 2 - 13

13700-02FA0

Unavailable

2

FILTER

13780-02FA0

$55.52

3

SCREW

13831-02FA0

$2.78

4

CAP

13740-02FA0

Unavailable

5

GASKET

13756-02FA0

Unavailable

6

SCREW This part replaces 03541-04163.

03541-0416A

$1.48

7

CUSHION, DUCT

13736-02FA0

$10.27

8

FILTER, BREATHER

13788-02FA1

$25.80

9

CLAMP This part replaces 09404-06432.

09404-06039

$1.79

10

BRACKET, SOLENOID VALVE

18116-02FA0

Unavailable

11

SCREW This part replaces 02142-06123.

02142-0612A

$1.41

12

CHAMBER, VACUUM

13715-02F00

Unavailable

13

SCREW This part replaces 02142-05163.

02142-0516A

$1.46

14

TUBE, BREATHER

13851-02FA0

Unavailable

15

CLIP

09401-15101

$2.36

16

VALVE ASSY, SOLENOID

18115-70G10

$136.95

17

VALVE, CHECK

95569-78040

$50.77

18

HOSE (3.5X7.5X600) | L:600->280 This part replaces 09355-35755-600.

09355-35007-600

$6.57

19

HOSE (3.5X7.5X600) | L:600->50 This part replaces 09355-35755-600.

09355-35007-600

$6.57

20

HOSE (3.5X7.5X600) | L:600->180 This part replaces 09355-35755-600.

09355-35007-600

$6.57

21

HOSE (3.5X7.5X600) | L:600->40 This part replaces 09355-35755-600.

09355-35007-600

$6.57

22

HOSE (3.5X7.5X600) | L:600->520 This part replaces 09355-35755-600.

09355-35007-600

$6.57

23

HOSE (3.5X7.5X600) | L:600->400 This part replaces 09355-35755-600.

09355-35007-600

$6.57

24

3WAY,VACUUM HOSE

13685-02FA0

$7.95

25

3WAY,VACUUM HOSE

13685-02FA0

$7.95

26

SENSOR, BOOST

15620-02F00

$259.45

27

SCREW This part replaces 02142-06123.

02142-0612A

$1.41

28

SENSOR, AIR TEMPERATURE

13650-61B00

$122.53

29

GASKET (12X17X1.0)

09168-12017

$2.01

30

FUNNEL, AIR CLEANER

13881-02FA0

Unavailable

31

BOLT | MODEL W/X/Y/K1

09128-06057

$1.70

31

BOLT | MODEL K2/K3 This part replaces 09128-06006.

09128-06057

$1.70

32

WASHER, AIR FUNNEL

13889-02FA0

$12.02

33

CLAMP This part replaces 09404-06432.

09404-06039

$1.79

34

CLIP, VACUUM HOSE

09408-00033

$3.08
