2025 Kawasaki Teryx4 S Special Edition Steering Wheel Diagram

← All diagrams

Find the part on the Steering Wheel diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

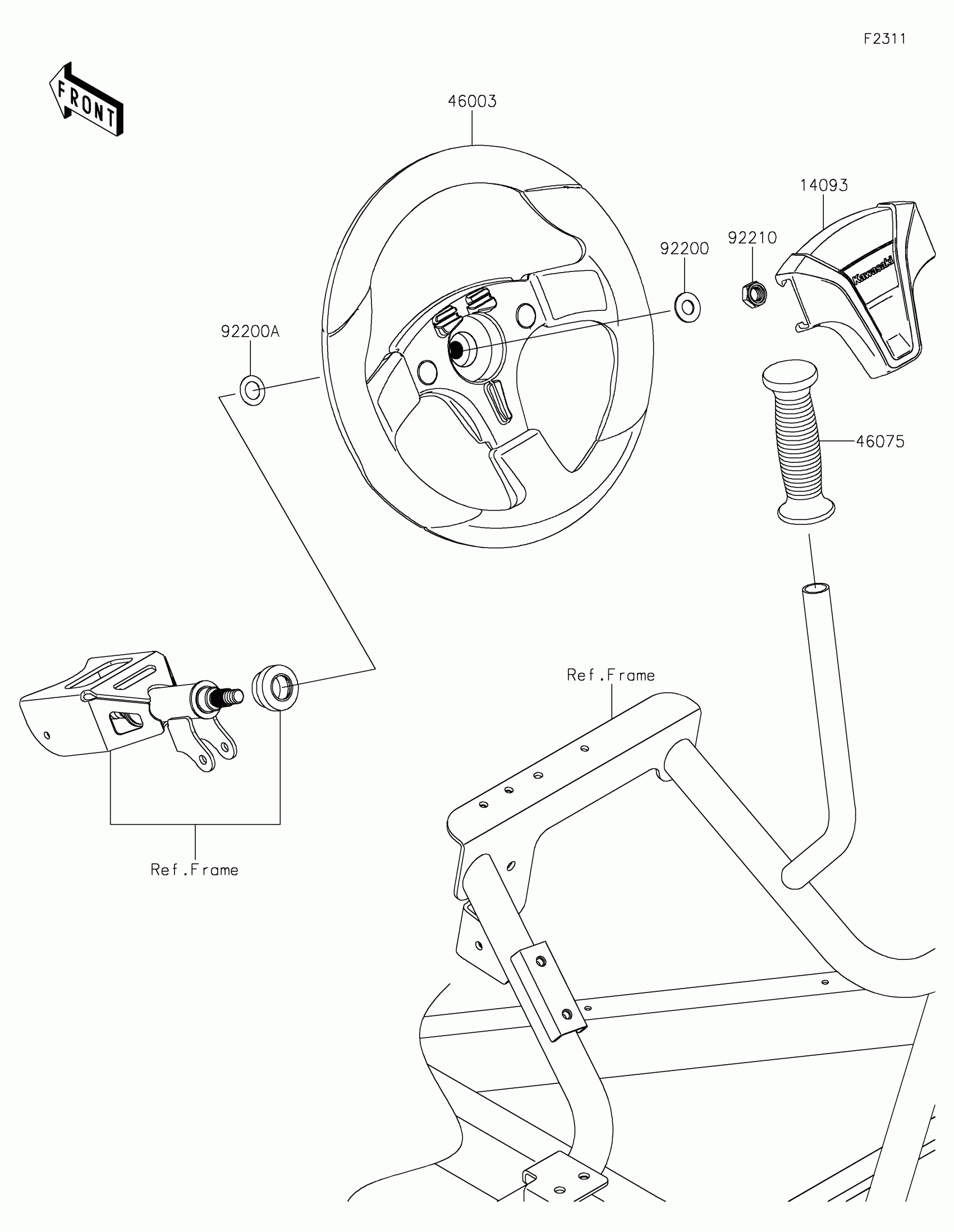

2025 Kawasaki Teryx4 S Special Edition Steering Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,HANDLE

14093-0803

1

$22.69

In stock

46003

HANDLE

46003-0809

1

$111.50

In stock

46075

GRIP

46075-0582

1

$17.24

In stock

92200

WASHER,12.1X25X1.6

92200-0455

1
Out of stock

92200A

WASHER,15X25X1.6

92200-0460

1
Out of stock

92210

NUT,LOCK,12MM

92210-1249

1
Out of stock
