2025 Kawasaki Teryx4 S Special Edition Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

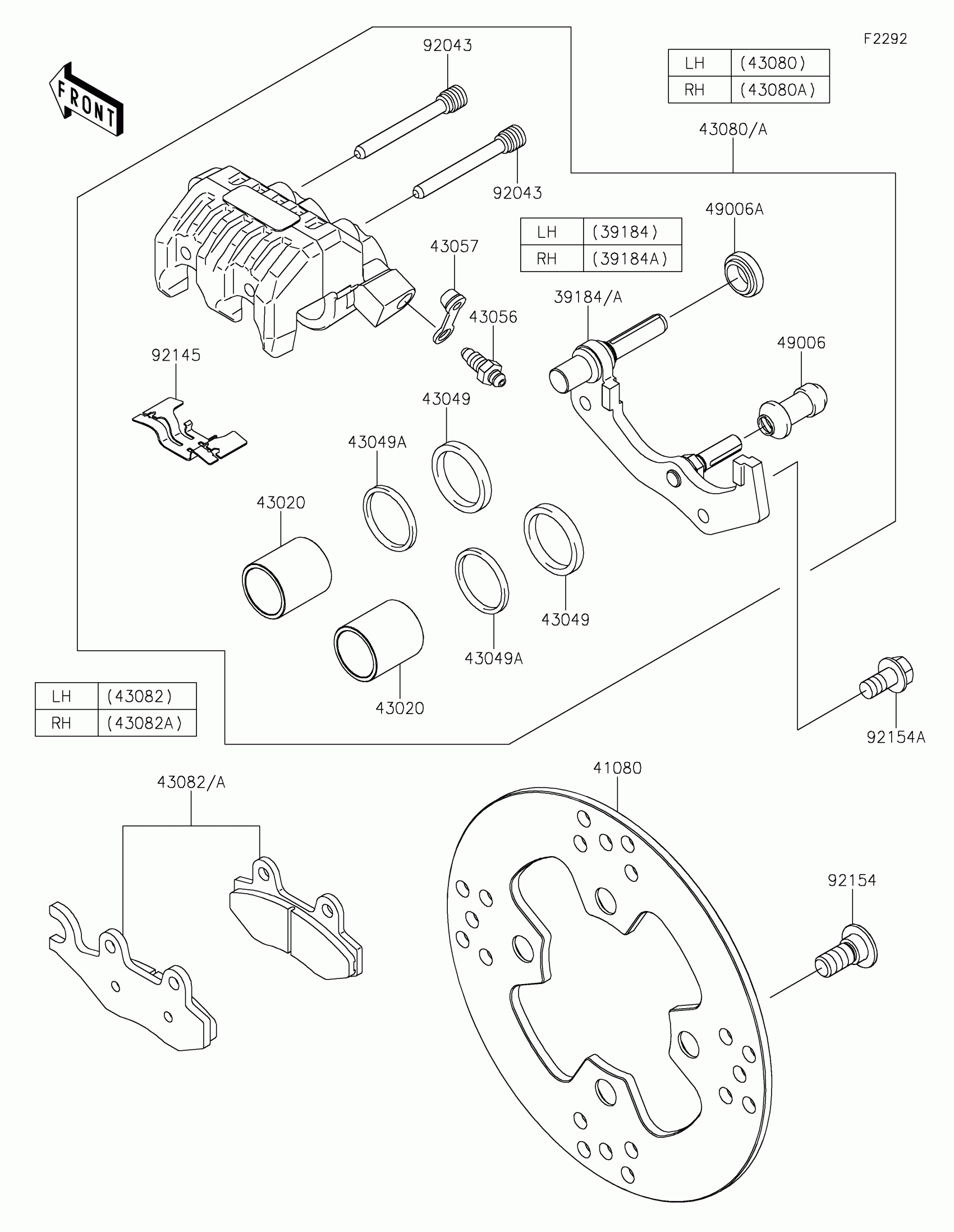

2025 Kawasaki Teryx4 S Special Edition Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39184

BRACKET-ASSY,LH

39184-0045

1
Out of stock

39184A

BRACKET-ASSY,RH

39184-0046

1
Out of stock

41080

DISC,200MM

41080-0661

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0054

1
Out of stock

43049

PACKING

43049-0556

1
Out of stock

43049A

PACKING

43049-0557

1
Out of stock

43056

BREATHER-BRAKE

43056-0055

1
Out of stock

43057

CAP-BREATHER

43057-0552

1
Out of stock

43080

CALIPER-SUB-ASSY,LH

43080-0165

1
Out of stock

43080A

CALIPER-SUB-ASSY,RH

43080-0166

1
Out of stock

43082

PAD-ASSY-BRAKE,LH

43082-0126

1
Out of stock

43082A

PAD-ASSY-BRAKE,RH

43082-0127

1
Out of stock

49006

BOOT

49006-0565

1
Out of stock

49006A

BOOT

49006-0566

1
Out of stock

92043

PIN

92043-0184

1
Out of stock

92145

SPRING

92145-0705

1
Out of stock

92154

BOLT,SOCKET,10X23

92154-0713

1
Out of stock

92154A

BOLT,FLANGED,8X16

92154-1952

1
Out of stock
