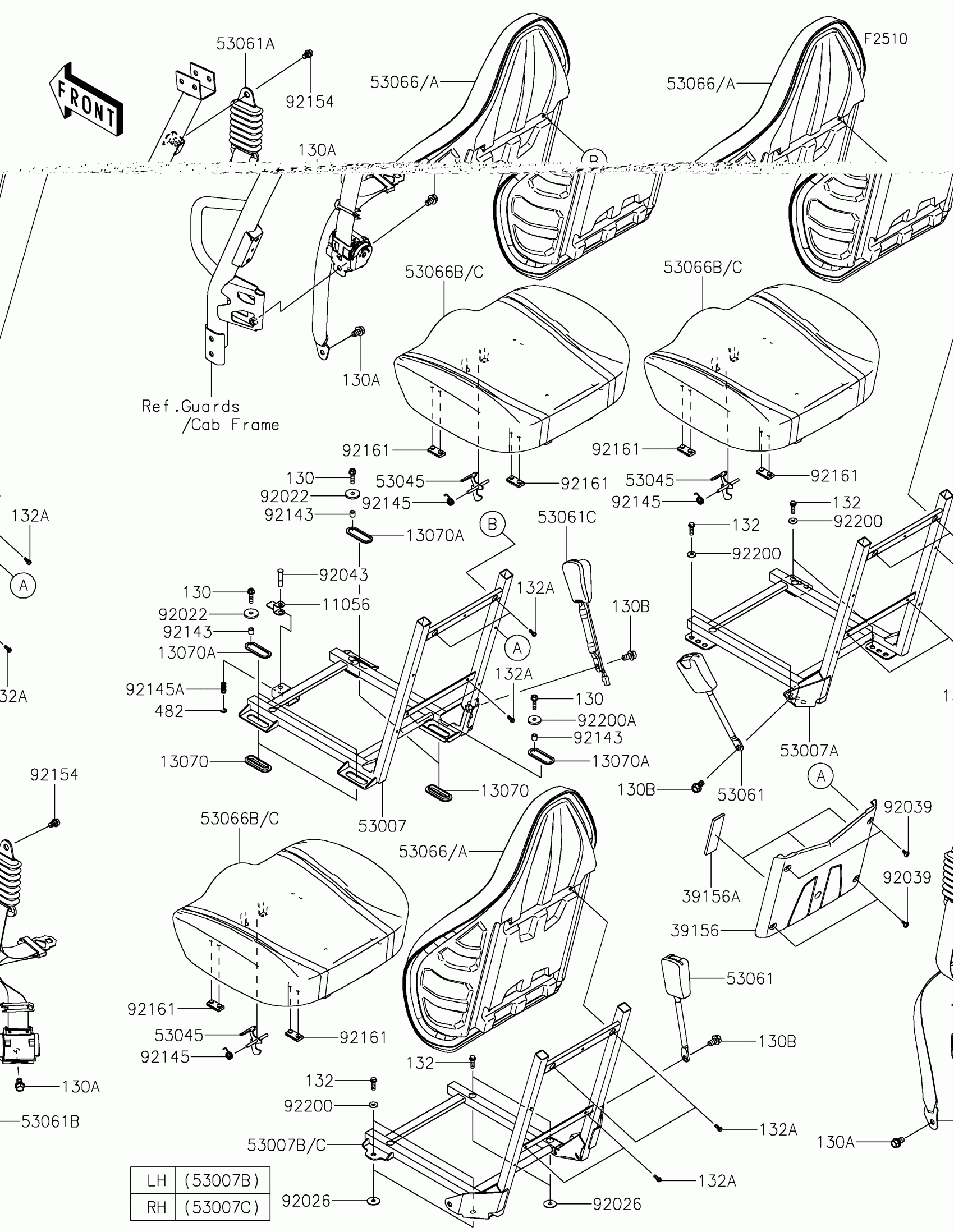

Kawasaki Teryx4™ S LE Seat Diagram

#

Description
Price

11056

BRACKET

11056-7917

$7.44

13070

GUIDE

13070-0806

$1.36

13070A

GUIDE

13070-0807

$1.39

39156

PAD,SEAT BACK

39156-0805

$17.05

39156A

PAD,FR SEAT BACK

39156-0929

$43.12

53007

FRAME-SEAT,FR,LH

53007-0375

$112.04

53007A

FRAME-SEAT,FR,RH

53007-0376

$112.04

53007B

FRAME-SEAT,RR,LH

53007-0378

$112.04

53007C

FRAME-SEAT,RR,RH

53007-0379

$112.04

53045

HOOK-ASSY

53045-0019

$7.63

53061

BELT-SEAT,BUCKLE

53061-0039

$27.99

53061A

BELT-SEAT,RETRACTOR,L=2500

53061-0345

$159.72

53061B

BELT-SEAT,RETRACTOR,L=2650

53061-0346

$159.72

53061C

BELT-SEAT,BUCKLE,SW.

53061-0364

$49.05

53066

SEAT-ASSY,BACK,BLACK+SIL+GRY

53066-0820-71C

$446.02

53066B

SEAT-ASSY,BASE,BLACK+SIL+GRY

53066-0821-71C

$291.87

92022

WASHER

92022-2116

$1.66

92026

SPACER,8.6X30X4.5

92026-0714

$3.55

92039

RIVET,FASTENER

92039-0713

$1.57

92043

PIN

92043-0882

$7.46

92143

COLLAR,8.8X12X11.5

92143-1340

$4.17

92145

SPRING,SEAT LATCH

92145-0022

$5.43

92145A

SPRING

92145-1682

$3.15

92154

BOLT,FLANGED,10X16

92154-2089

$7.25

92161

DAMPER,SEAT

92161-1489

$2.31

92200

WASHER,8.2X20.0X2.5

92200-0205

$2.68

92200A

WASHER,8.6X31X4.5

92200-1758

$1.55

130

BOLT-FLANGED,8X30

130BA0830

$1.44

130A

BOLT-FLANGED,12X20

130BA1220

$2.84

130B

BOLT-FLANGED,13X22

130BB1222

$4.19

132

BOLT-FLANGED-SMALL,8X25

132BA0825

$3.69

132A

BOLT-FLANGED-SMALL,6X14

132BB0614

$1.77

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63
