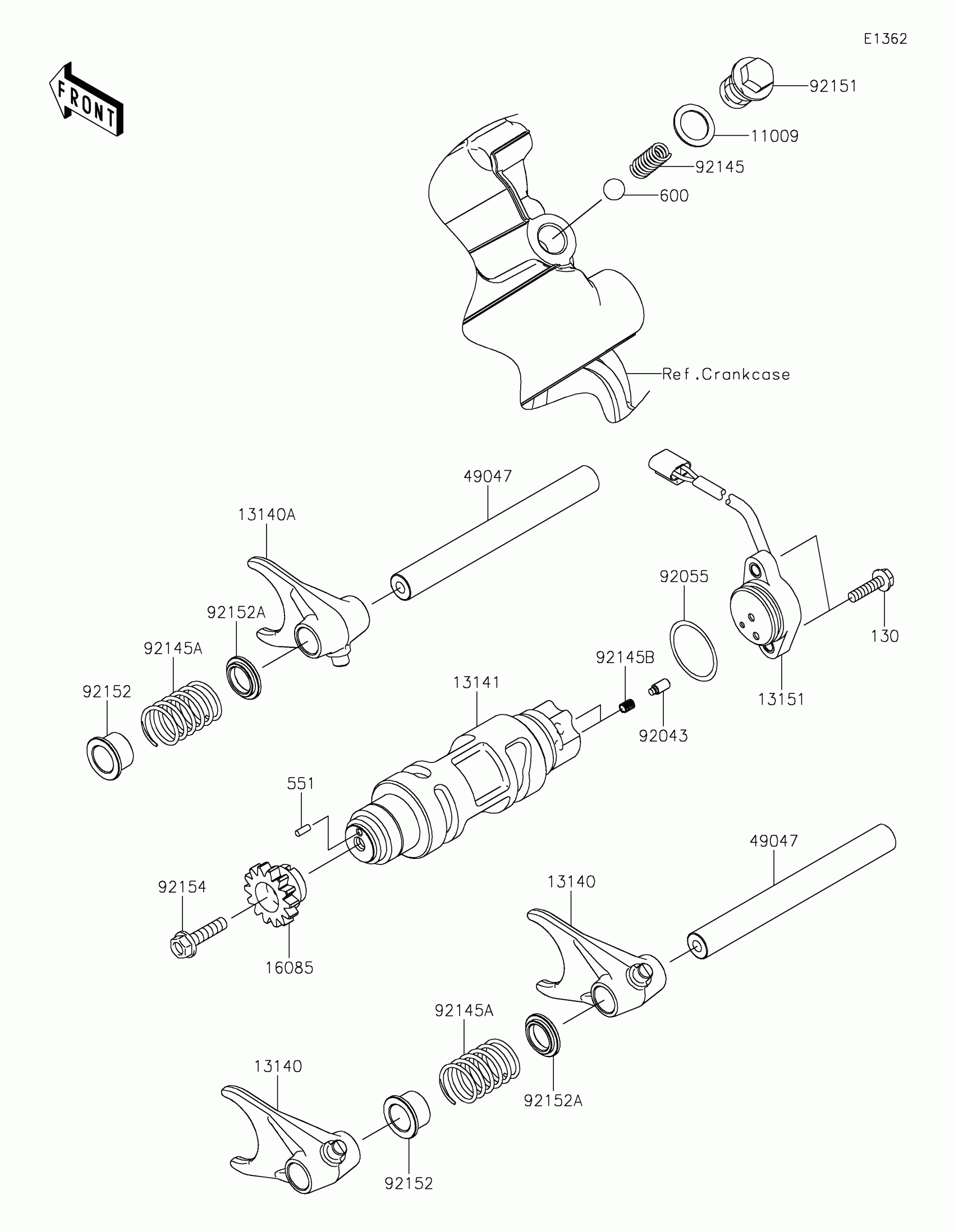

Kawasaki Teryx4™ S LE Gear Change Drum/Shift Fork(s) Diagram

Description

Price

11009

GASKET,15.5X22X1

11009-1008

$2.75

13140

FORK-SHIFT,COUNTER

13140-0622

$50.29

13140A

FORK-SHIFT,INPUT

13140-0623

$50.29

13141

DRUM-CHANGE

13141-0576

$112.37

13151

SWITCH-COMP,GEAR POSITION

13151-0561

$48.80

16085

GEAR,14T

16085-0589

$73.13

49047

ROD-SHIFT

49047-0619

$33.87

92043

92043-1654

$2.84

92055

RING-O,27.7X2.4

92055-091

$4.67

92145

SPRING

92145-0828

$1.93

92145A

SPRING

92145-0898

$3.92

92145B

SPRING

92145-1414

$3.03

92151

BOLT

92151-1451

$14.44

92152

COLLAR,14X18X12.5

92152-2156

$15.15

92152A

COLLAR,14X18X4

92152-2157

$10.97

92154

BOLT,FLANGED,6X25

92154-0707

$0.95

130

BOLT-FLANGED,5X20

130BA0520

$0.79

551

PIN DOWEL 3X8

551A0308

$0.59

600

BALL-STEEL,13/32"

600A1300

$0.78
