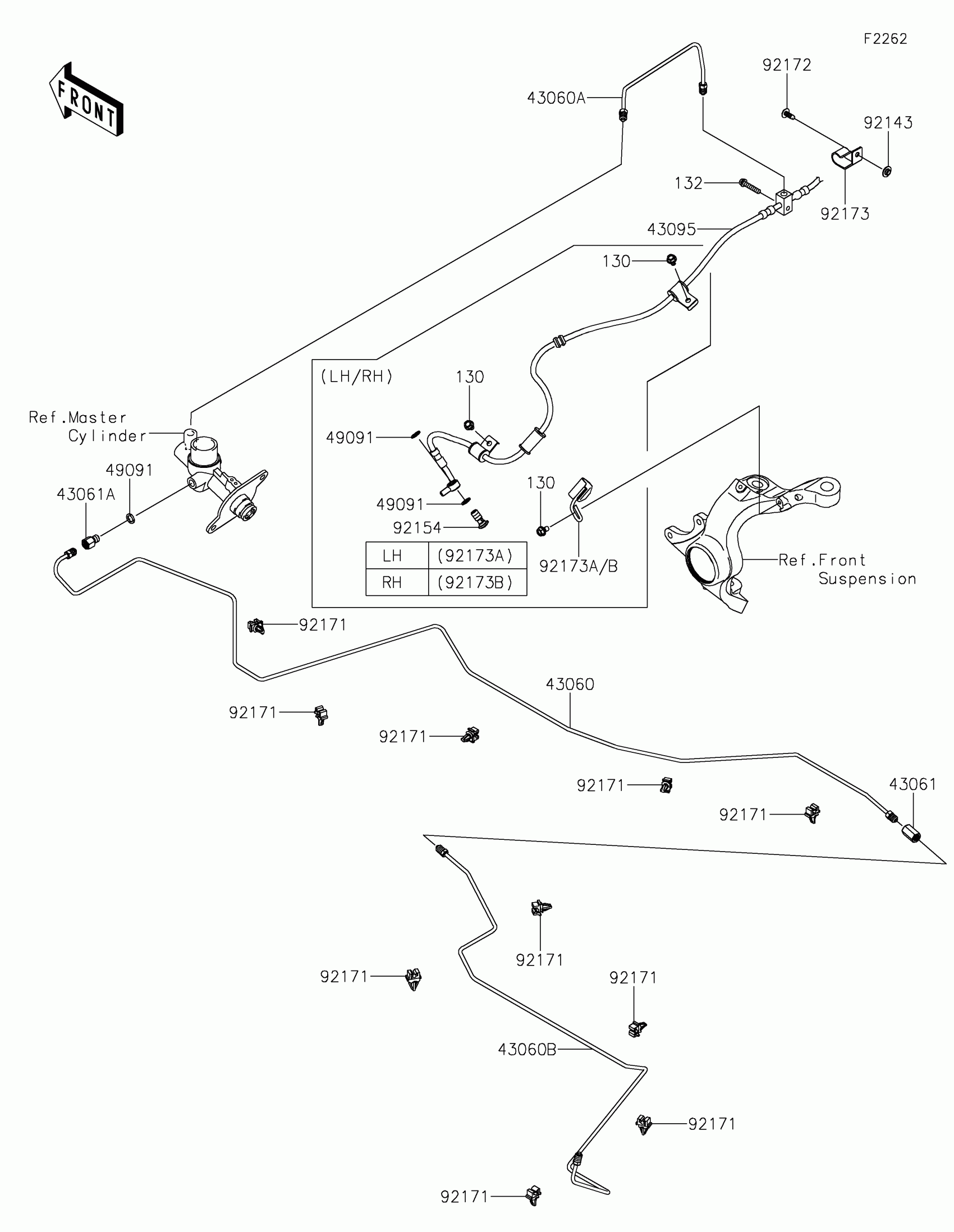

Find the part on the Brake Piping diagram for your 2024 Kawasaki Teryx4™ S Le, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Teryx4™ S Le Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43060

1

$44.45

In stock

43060A

1

$20.76

In stock

43060B

1

$37.94

In stock

43061

JOINT-BRAKE

43061-0003

1

$47.25

In stock

43061A

JOINT-BRAKE,M/C

43061-0302

1

$33.87

In stock

43095

HOSE-BRAKE,FR

43095-1749

1

$138.35

In stock

49091

1

$1.81

In stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92154

BOLT,TORX,10X23

92154-1875

1

$9.37

In stock

92171

CLAMP

92171-0805

1

$3.11

In stock

92172

SCREW,TAPPING,6X16

92172-0739

1

$0.85

In stock

92173

CLAMP

92173-0930

1

$7.51

In stock

92173A

CLAMP,LH

92173-0934

1

$9.78

In stock

92173B

CLAMP,RH

92173-0935

1

$9.78

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

132

1

$2.17

In stock
