2021 Kawasaki TERYX4™ S Camo Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 2021 Kawasaki TERYX4™ S Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

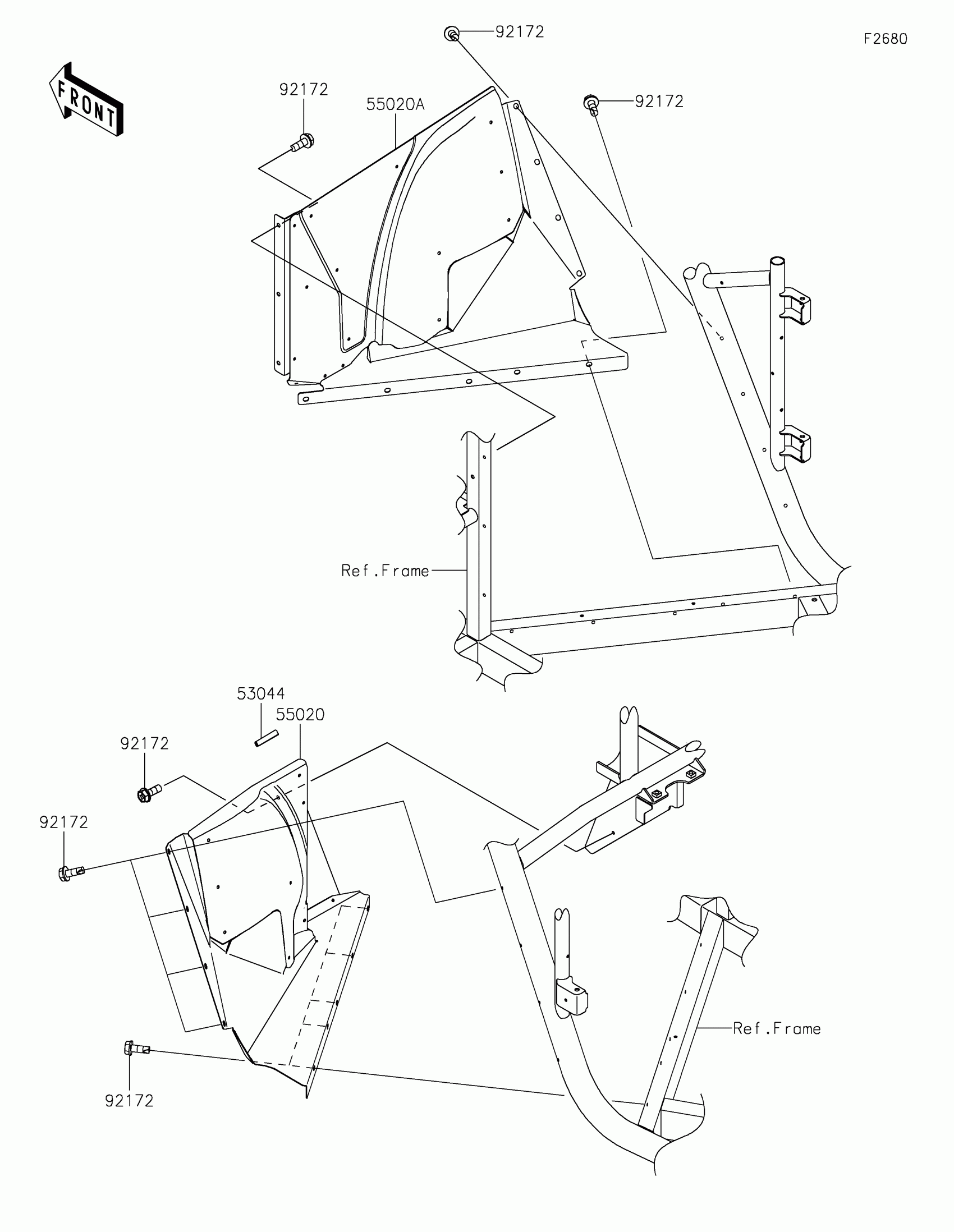

2021 Kawasaki TERYX4™ S Camo Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

53044

TRIM,L=50

53044-0699

1
Out of stock

55020

GUARD,1PIECE,LH

55020-2167

1
Out of stock

55020A

GUARD,1PIECE,RH

55020-2168

1
Out of stock

92172

SCREW,TAPPING,6X16

92172-1388

1
Out of stock
← Front Fender Guards/cab Frame →
