2021 Kawasaki TERYX4™ S Camo Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2021 Kawasaki TERYX4™ S Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

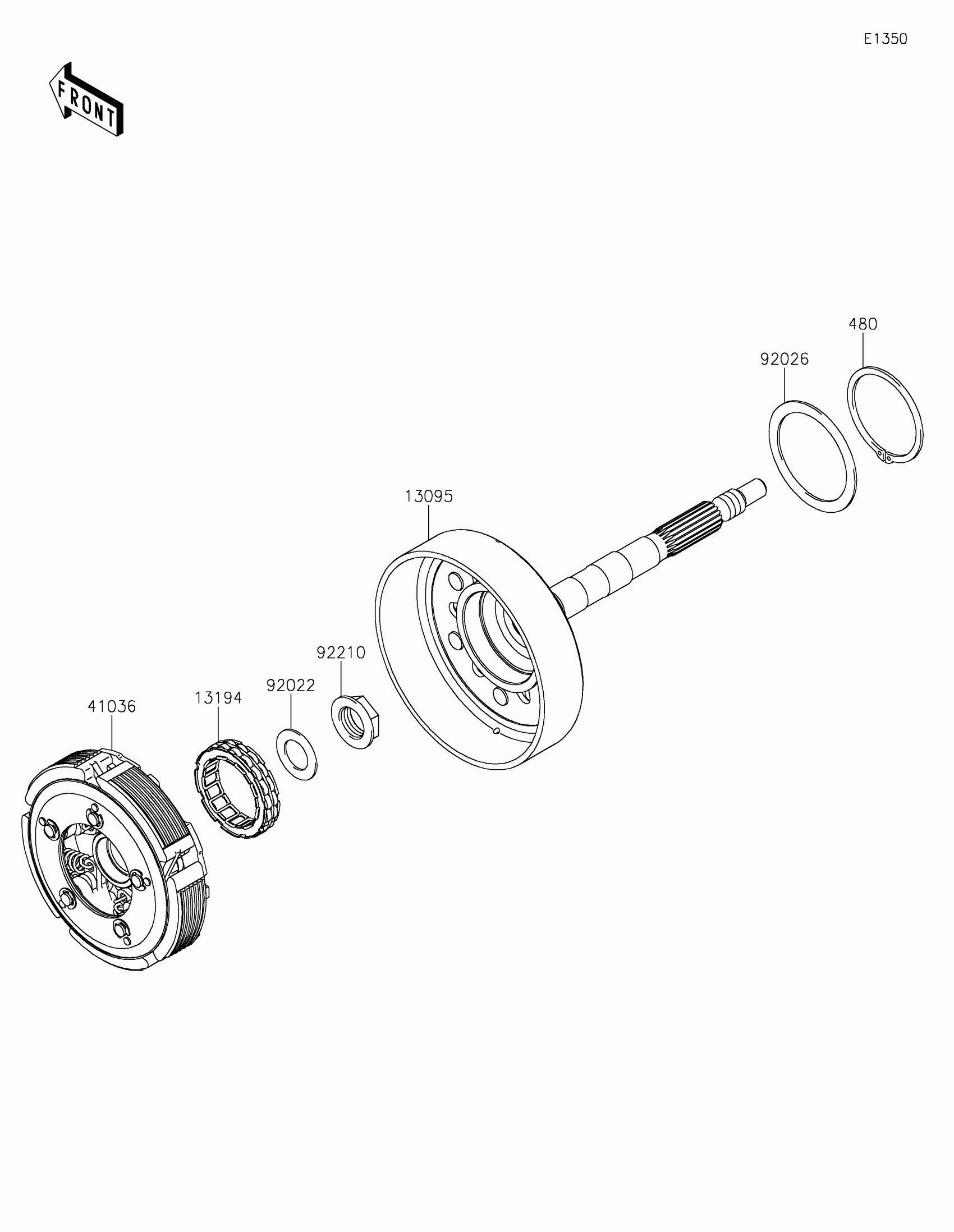

2021 Kawasaki TERYX4™ S Camo Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13095

HOUSING-COMP-CLUTCH

13095-0554

1

$363.35

In stock

13194

CLUTCH-ONEWAY

13194-0555

1
Out of stock

41036

HUB-ASSY

41036-0639

1

$444.35

In stock

92022

WASHER,20.5X34X1.4

92022-168

1
Out of stock

92026

SPACER

92026-0710

1
Out of stock

92210

NUT,20MM

92210-0711

1
Out of stock

480

CIRCLIP-TYPE-C,60MM

480J6000

1
Out of stock
