2018 Kawasaki TERYX4™ Le Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2018 Kawasaki TERYX4™ Le, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

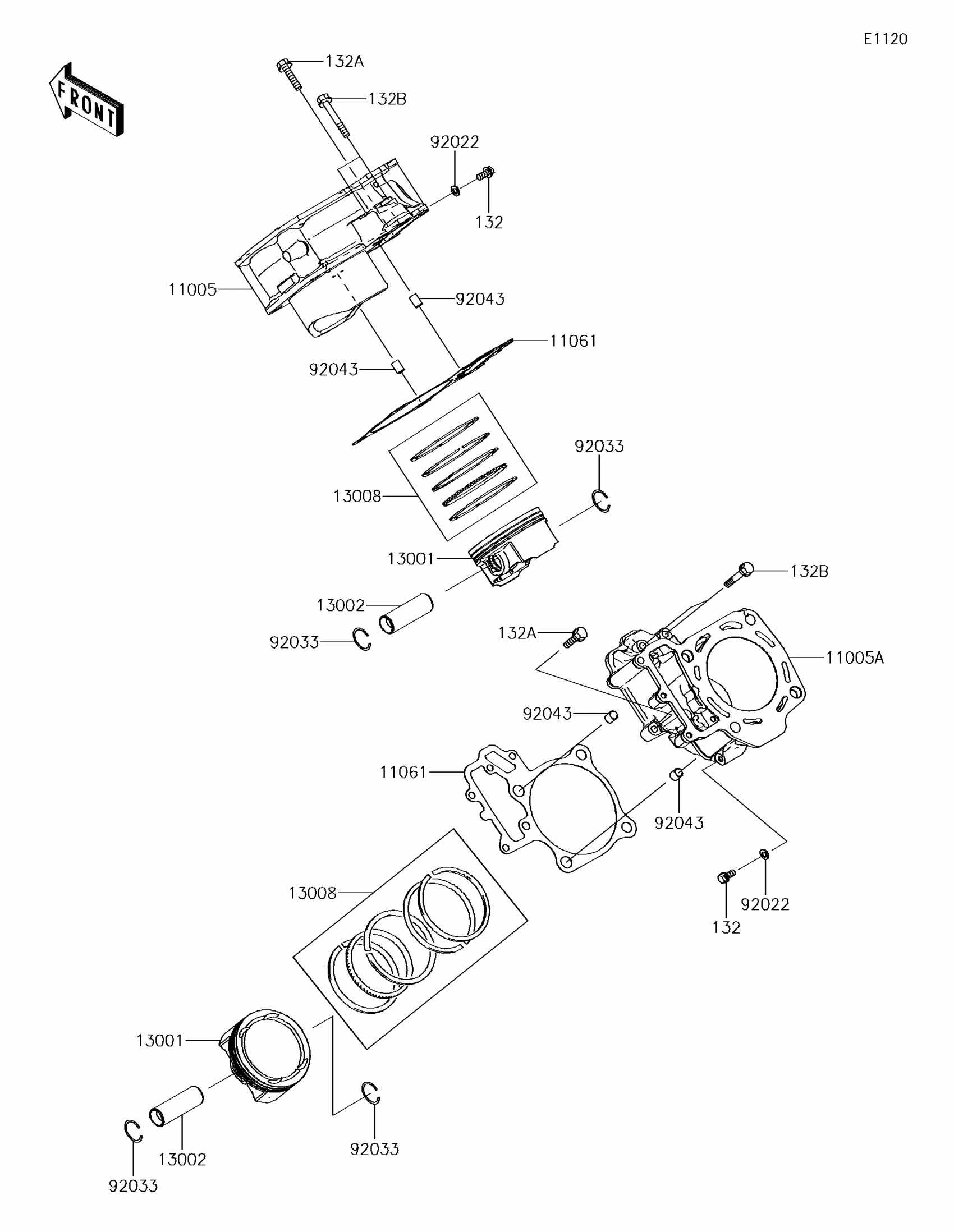

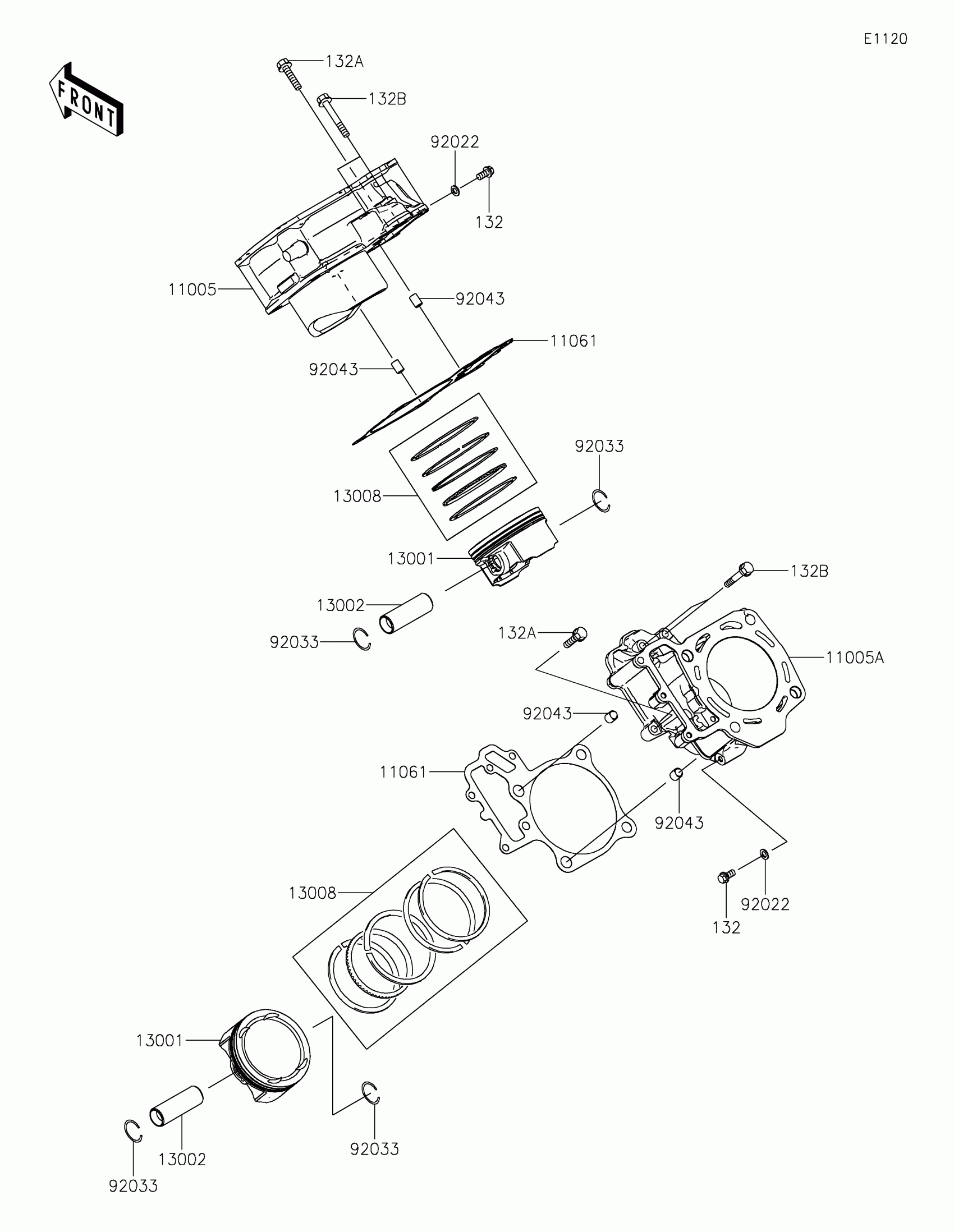

2018 Kawasaki TERYX4™ Le Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE,FR

11005-0628

1
Out of stock

11005A

CYLINDER-ENGINE,RR

11005-0629

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-0730

1
Out of stock

13001

PISTON-ENGINE

13001-0740

1
Out of stock

13002

PIN-PISTON

13002-0711

1
Out of stock

13008

RING-SET-PISTON

13008-0042

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92033

RING-SNAP

92033-1207

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BA0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X40

132BA0640

1
Out of stock
