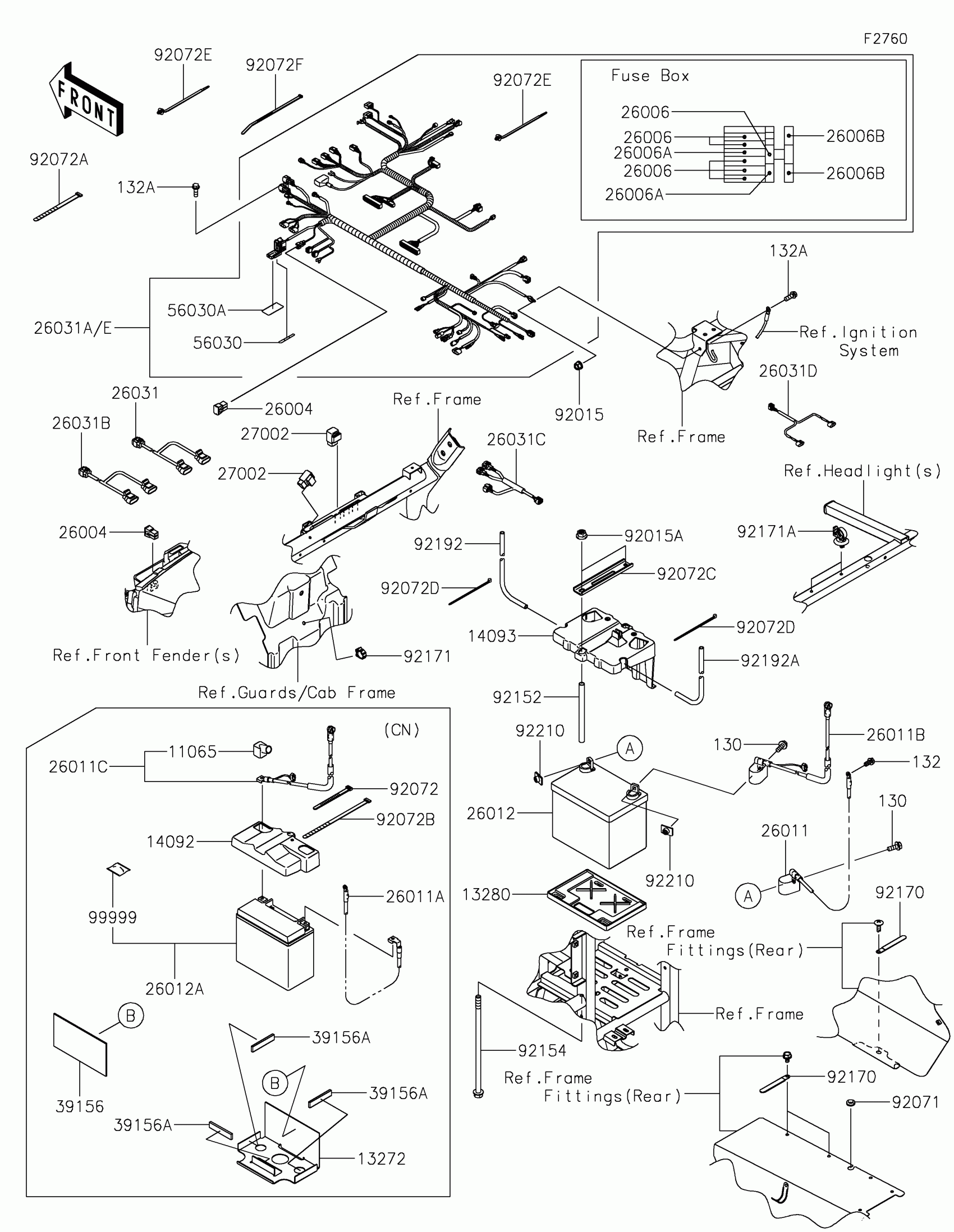

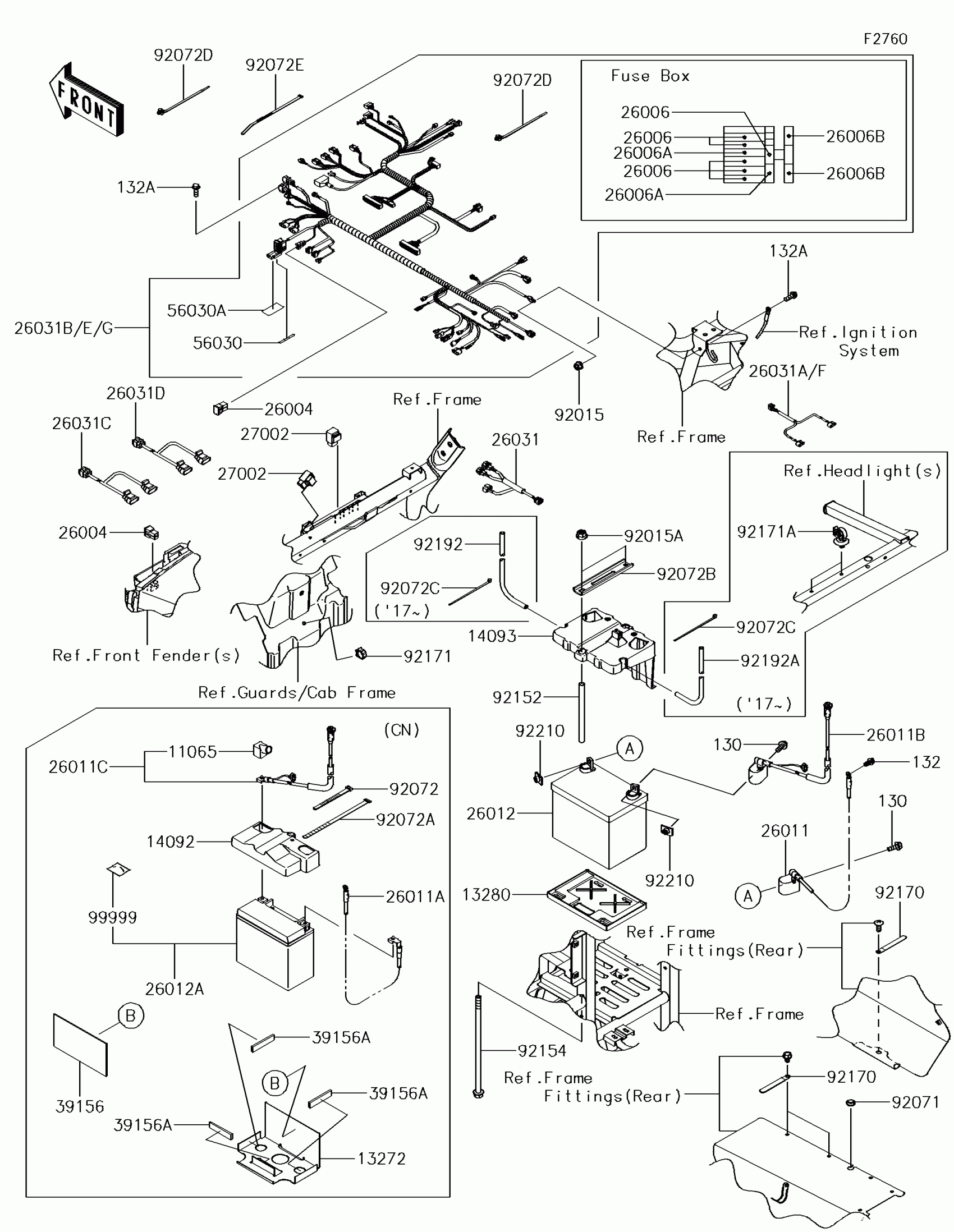

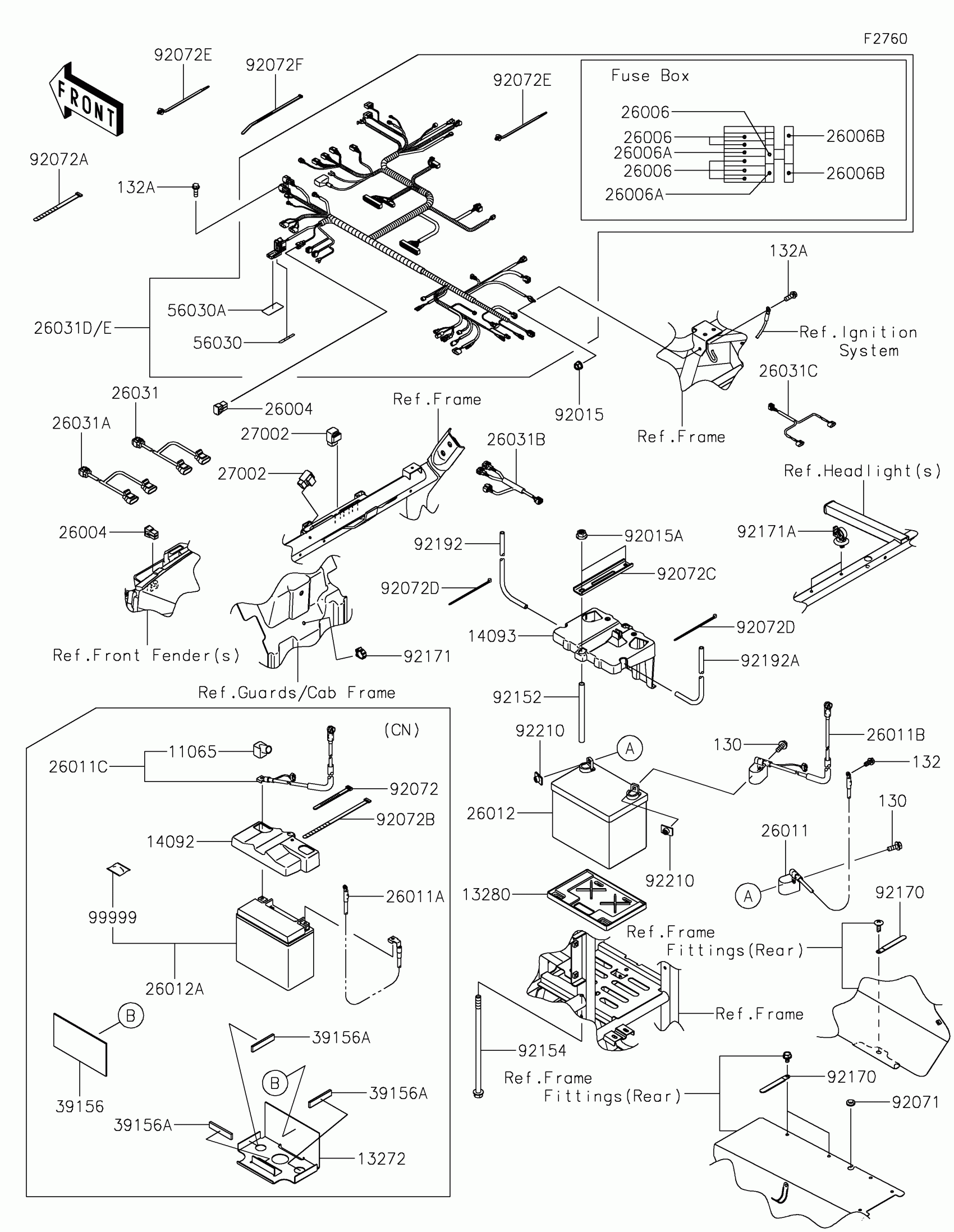

Kawasaki TERYX4™ LE Chassis Electrical Equipment Diagram

#

Description
Price

13280

HOLDER,BATTERY

13280-0709

$7.80

26004

FUSE-ASSY,40A

26004-1093

$4.11

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006A

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$4.87

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26031

HARNESS,SUB,TPS

26031-1264

$28.09

26031A

HARNESS,SUB

26031-1439

$84.80

26031C

HARNESS,SUB,LH

26031-1831

$31.61

26031D

HARNESS,SUB,RH

26031-1832

$31.32

26031E

HARNESS,MAIN

26031-1999

$724.88

26031F

HARNESS,SUB,TAIL

26031-2203

$84.80

27002

RELAY-ASSY

27002-1062

$45.39

56030

LABEL,FUSE BOX,30A

56030-0404

$3.77

56030A

LABEL,FUSE BOX

56030-0900

$2.94

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.49

92015A

NUT,FLANGED,8MM

92015-1406

$4.45

92071

GROMMET,10X20X6

92071-0733

$1.49

92072B

BAND

92072-0707

$7.59

92072D

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072E

BAND,L=292.1

92072-3509

$2.12

92152

COLLAR,10.2X12.7X165.8

92152-1555

$3.21

92154

BOLT,FLANGED,8X185

92154-0889

$9.17

92170

CLAMP

92170-1925

$2.40

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.49

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

14093

COVER,BATTERY

14093-0546

$7.99

26011

WIRE-LEAD,BATTERY(-)

26011-0897

$26.13

26011B

WIRE-LEAD,BATTERY(+)

26011-0928

$84.83

26012

BATTERY,12V 14AH

26012-0107

$113.09

92072C

BAND,92X2.4

92072-0791

$1.49

92171A

CLAMP

92171-0453

$3.54

92192

TUBE,7X10X450

92192-1695

$1.89

92192A

TUBE,7X10X560

92192-1818

$2.41

92210

NUT,PLATE,6MM

92210-1352

$2.41

130

BOLT-FLANGED,6X16

130BA0616

$1.49
