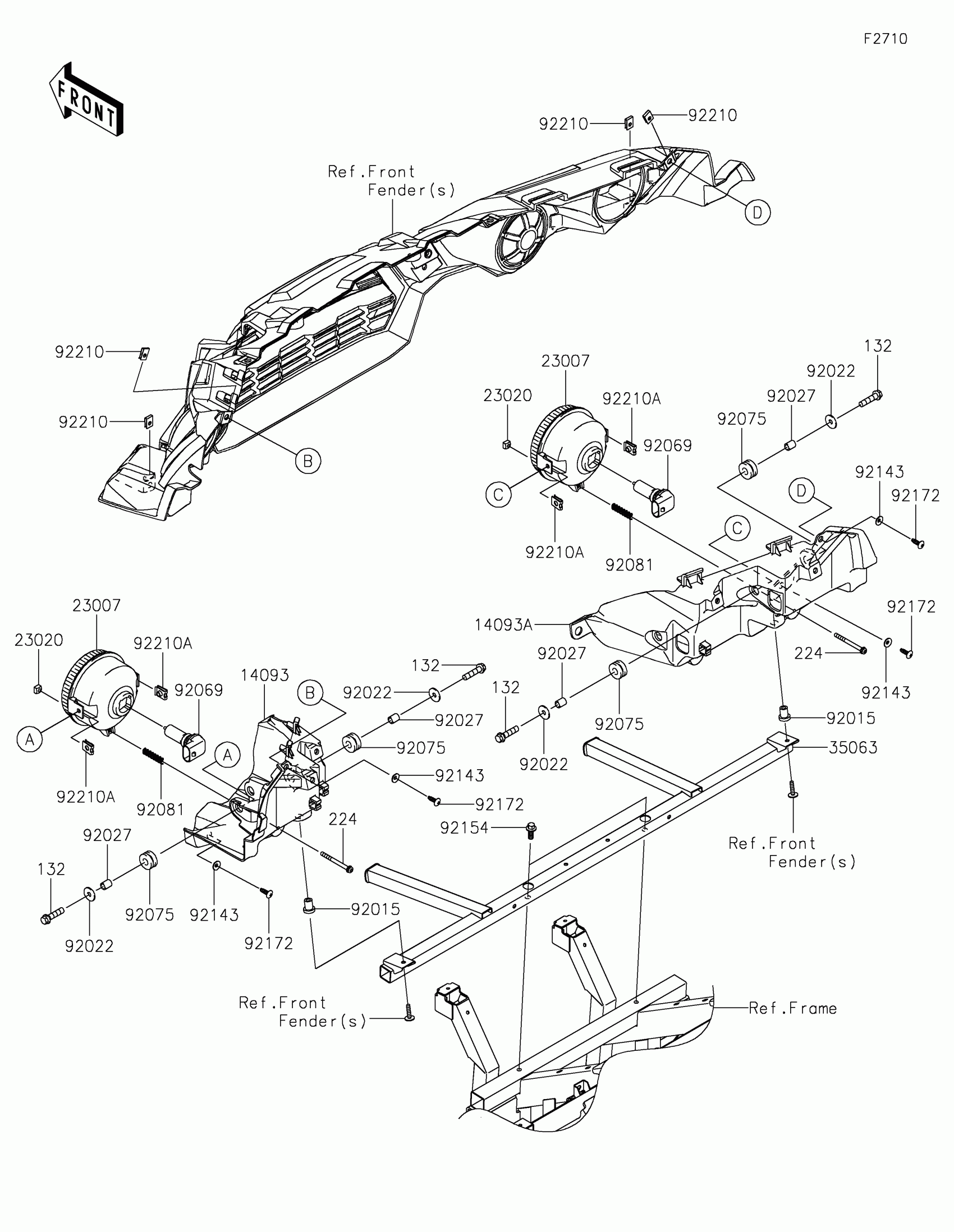

Kawasaki TERYX4™ Headlight(s) Diagram

Description

Price

14093

COVER,HEADLIGHT,LH

14093-0207

$19.75

14093A

COVER,HEADLIGHT,RH

14093-0208

$18.90

23007

LENS-COMP,HEAD LAMP

23007-0096

$44.76

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

35063

STAY,HEADLAMP

35063-1405

$79.89

92015

NUT,RUBBER,6MM

92015-1692

$5.61

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 35/35W

92069-0019

$11.94

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92143

COLLAR

92143-1087

$2.98

92154

BOLT,FLANGED,8X20

92154-1226

$0.85

92172

SCREW,TAPPING,6X20

92172-0488

$2.11

92210

NUT,LEAF SPRING,6MM

92210-0624

$1.66

92210A

NUT

92210-1125

$3.63

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.33
