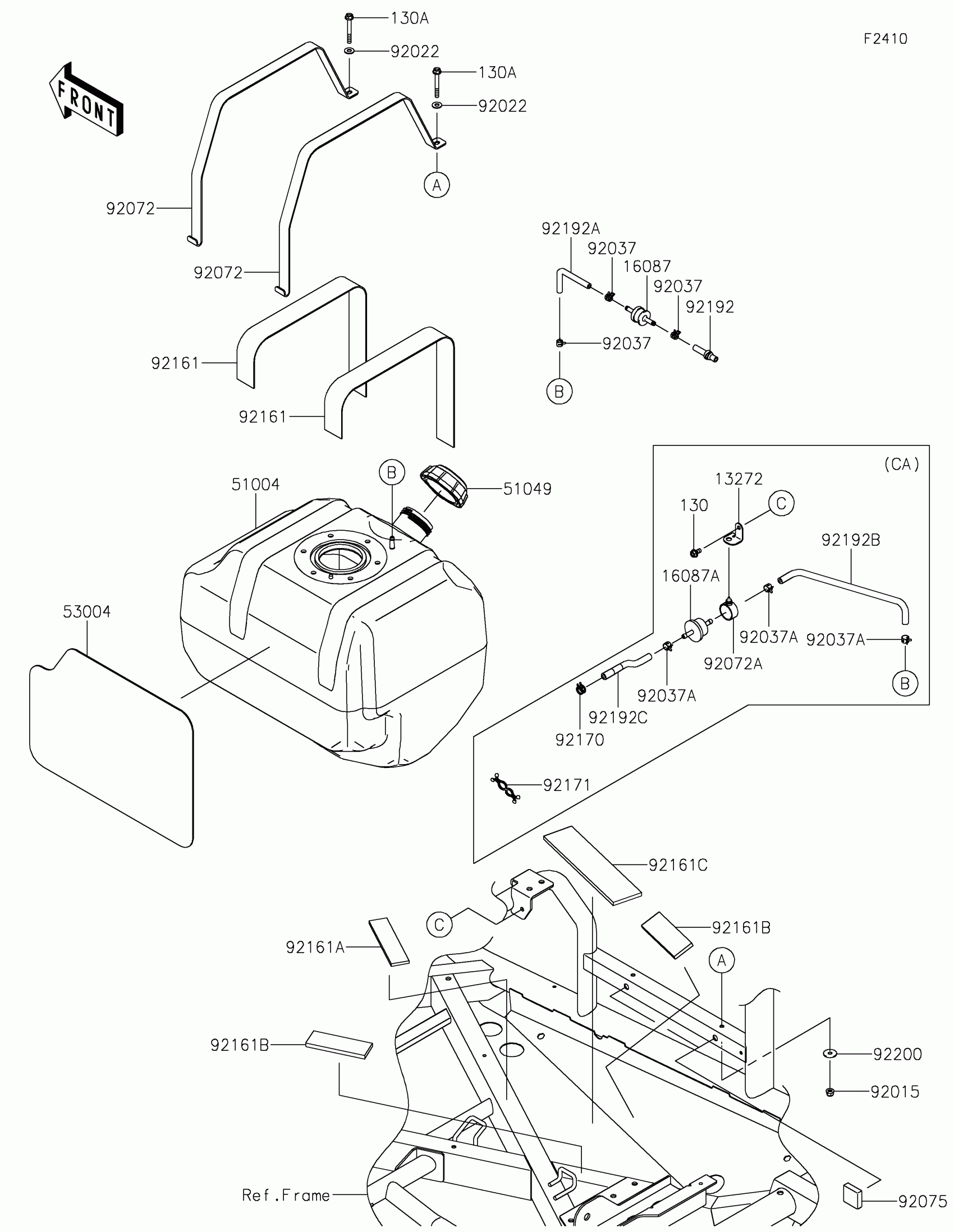

Kawasaki TERYX4™ Fuel Tank Diagram

#

Description
Price

13272

PLATE

13272-2276

$2.53

16087

VALVE-CHECK

16087-0008

$33.58

16087A

VALVE-CHECK

16087-0011

$38.71

51004

TANK-FUEL

51004-0002

$288.87

51049

CAP-TANK,FUEL

51049-0718

$58.05

53004

MAT

53004-0554

$9.78

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92022

WASHER,7X16X1.2

92022-1344

$2.99

92037

CLAMP,TUBE

92037-1461

$2.93

92037A

CLAMP

92037-2113

$0.97

92072

BAND,FUEL TANK

92072-0704

$13.86

92072A

BAND

92072-0852

$4.42

92075

DAMPER

92075-1882

$6.18

92161

DAMPER,FUEL TANK

92161-0794

$20.63

92161A

DAMPER,31.1X130X5

92161-0936

$4.15

92161B

DAMPER,38X105X7

92161-0948

$3.19

92161C

DAMPER,55X225X6.35

92161-1811

$13.76

92170

CLAMP

92170-2082

$0.71

92171

CLAMP

92171-0476

$3.51

92192

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.49

92192A

TUBE,VENT

92192-0949

$1.54

92192B

TUBE,5X10.4X40/240

92192-1735

$41.07

92192C

TUBE,FILTER-CHECK VALVE

92192-2259

$23.92

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X50

130BA0650

$0.84
