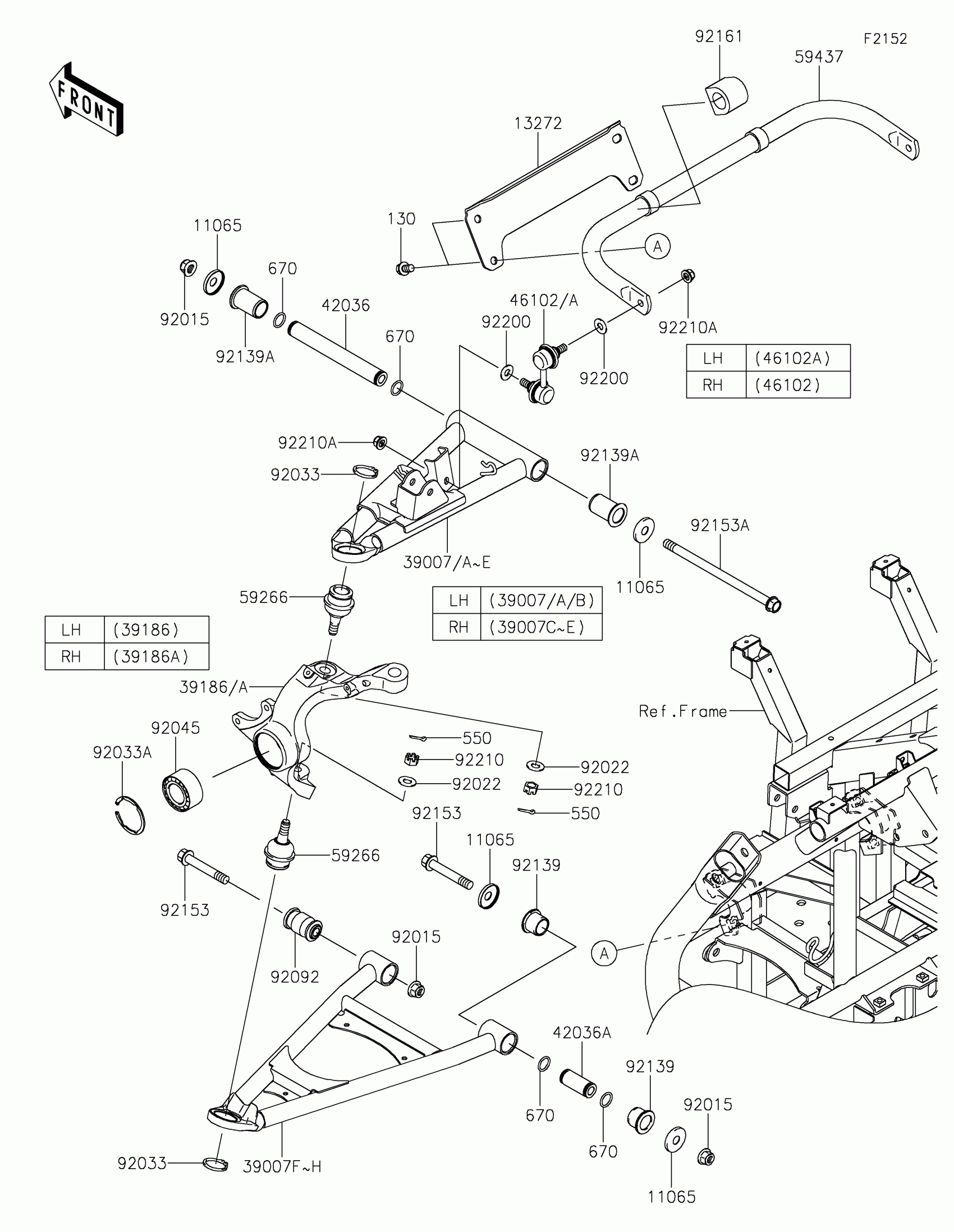

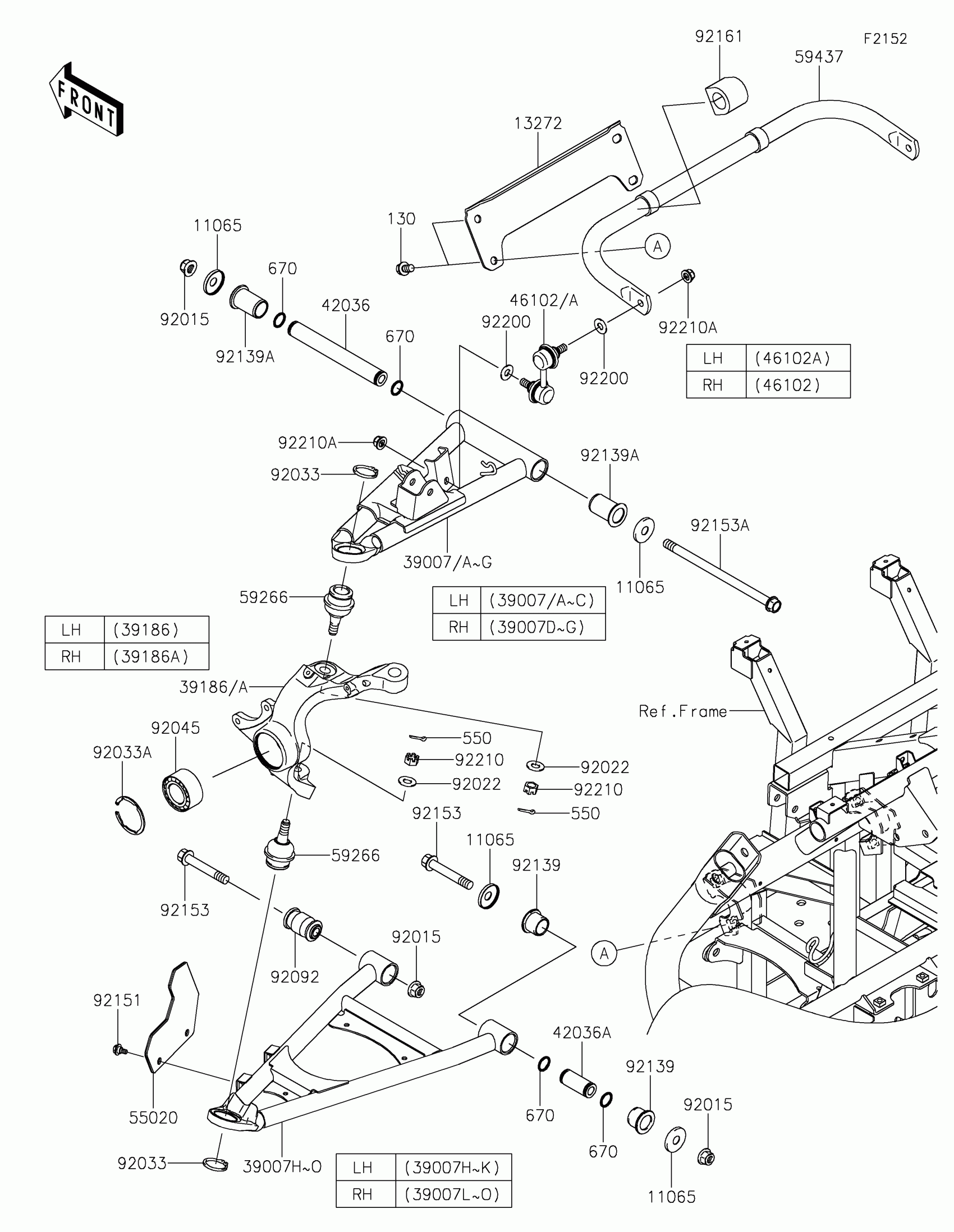

Kawasaki TERYX4™ Front Suspension Diagram

#

Description
Price

11065

CAP

11065-0253

$2.95

13272

PLATE

13272-1650

$49.77

39007B

ARM-SUSP,FR,UPP,LH,C.B.ORANGE

39007-0367-42R

$152.88

39007C

ARM-SUSP,FR,UPP,LH,ORANGE

39007-0367-57V

$152.88

39007F

ARM-SUSP,FR,UPP,RH,C.B.ORANGE

39007-0368-42R

$152.88

39007G

ARM-SUSP,FR,UPP,RH,ORANGE

39007-0368-57V

$152.88

39007J

ARM-SUSP,FR,LWR,LH,C.B.ORANGE

39007-0389-42R

$133.00

39007K

ARM-SUSP,FR,LWR,LH,ORANGE

39007-0389-57V

$133.00

39007N

ARM-SUSP,FR,LWR,RH,C.B.ORANGE

39007-0390-42R

$133.00

39007O

ARM-SUSP,FR,LWR,RH,ORANGE

39007-0390-57V

$133.00

39186

KNUCKLE,FR,LH

39186-0311

Unavailable

39186A

KNUCKLE,FR,RH

39186-0312

Unavailable

42036

SLEEVE

42036-0061

$41.45

42036A

SLEEVE

42036-0062

$19.37

46102

ROD,STABILIZER,LH

46102-0100

$43.00

46102A

ROD,STABILIZER,RH

46102-0101

$43.00

55020

GUARD,FRONT ARM

55020-0839

$13.66

59266

JOINT-BALL

59266-0711

$85.37

59437

STABILIZER,FR

59437-0010

$114.94

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92022

WASHER

92022-1831

$4.18

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$4.81

92033A

RING-SNAP,55MM

92033-1274

$7.18

92045

BEARING-BALL,30X55X32

92045-0800

$31.22

92092

BUSHING-RUBBER

92092-0555

$14.43

92139

BUSHING

92139-0231

$5.87

92139A

BUSHING,22.4X28.2X46

92139-0806

$6.28

92151

BOLT,FLANGED,6X13

92151-1703

$3.01

92153

BOLT,FLANGED,12X76.5

92153-1733

$5.91

92153A

BOLT,FLANGED,12X213

92153-1958

$16.51

92161

DAMPER

92161-1508

$4.49

92200

WASHER,10.3X23X1.6

92200-2009

$1.04

92210

NUT,CASTLE,12MM

92210-0395

$2.95

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

130

BOLT-FLANGED,10X16

130CA1016

$2.31

550

PIN-COTTER,3.0X25

550AA3025

$0.59

670

O RING,18MM

670B2018

$1.08
