2020 Kawasaki TERYX4™ Camo Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2020 Kawasaki TERYX4™ Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

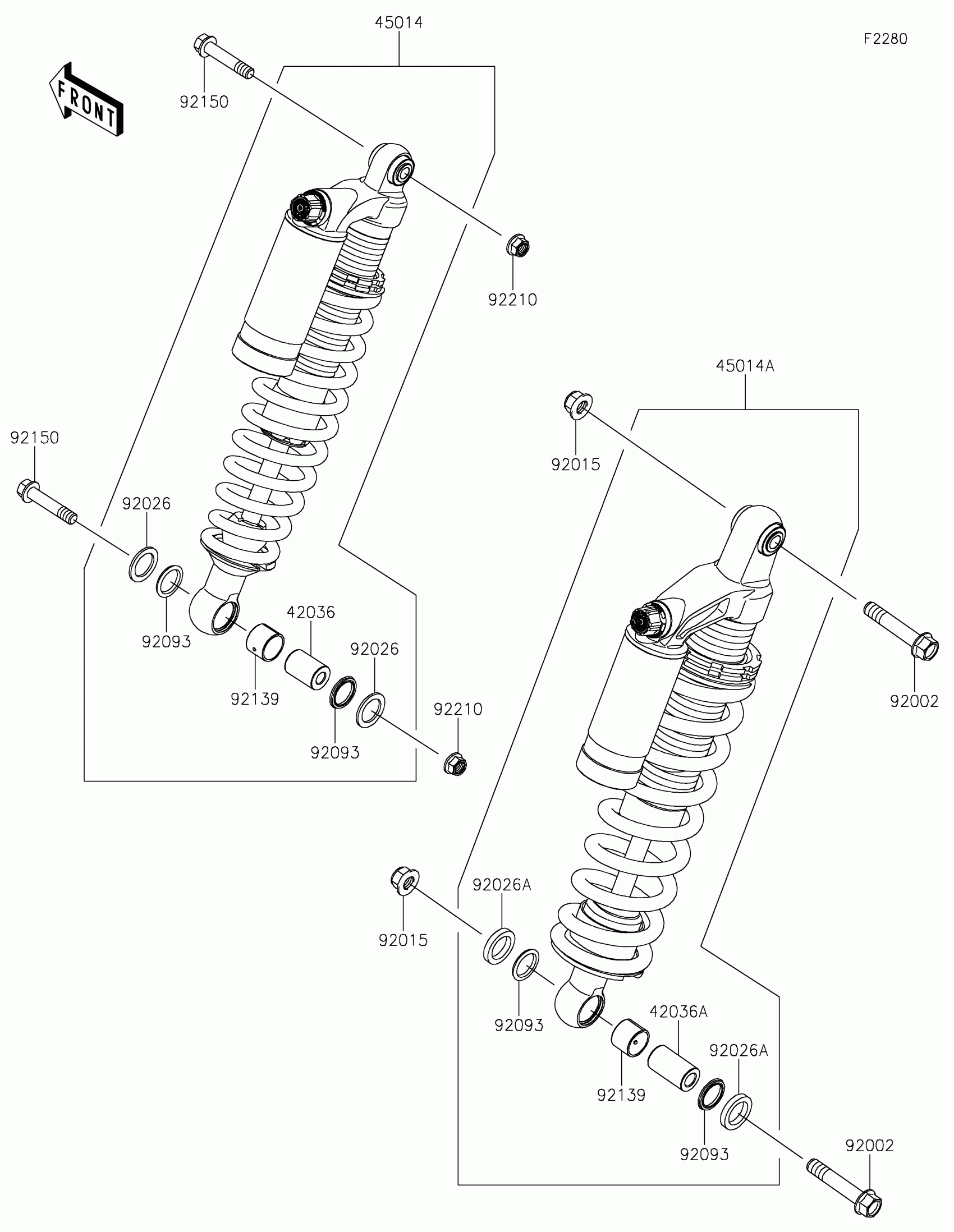

2020 Kawasaki TERYX4™ Camo Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

42036

SLEEVE

42036-0772

1
Out of stock

42036A

SLEEVE

42036-0773

1
Out of stock

45014

SHOCKABSORBER,FR,BLACK

45014-0486-10

1
Out of stock

45014A

SHOCKABSORBER,RR,BLACK

45014-0487-10

1
Out of stock

92002

BOLT,ROD,12MM

92002-1757

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92026

SPACER

92026-0793

1
Out of stock

92026A

SPACER

92026-0794

1
Out of stock

92093

SEAL

92093-0609

1
Out of stock

92139

BUSHING

92139-0809

1
Out of stock

92150

BOLT,FLANGED,10X50

92150-1125

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
