2020 Kawasaki TERYX4™ Camo Master Cylinder Diagram

← All diagrams

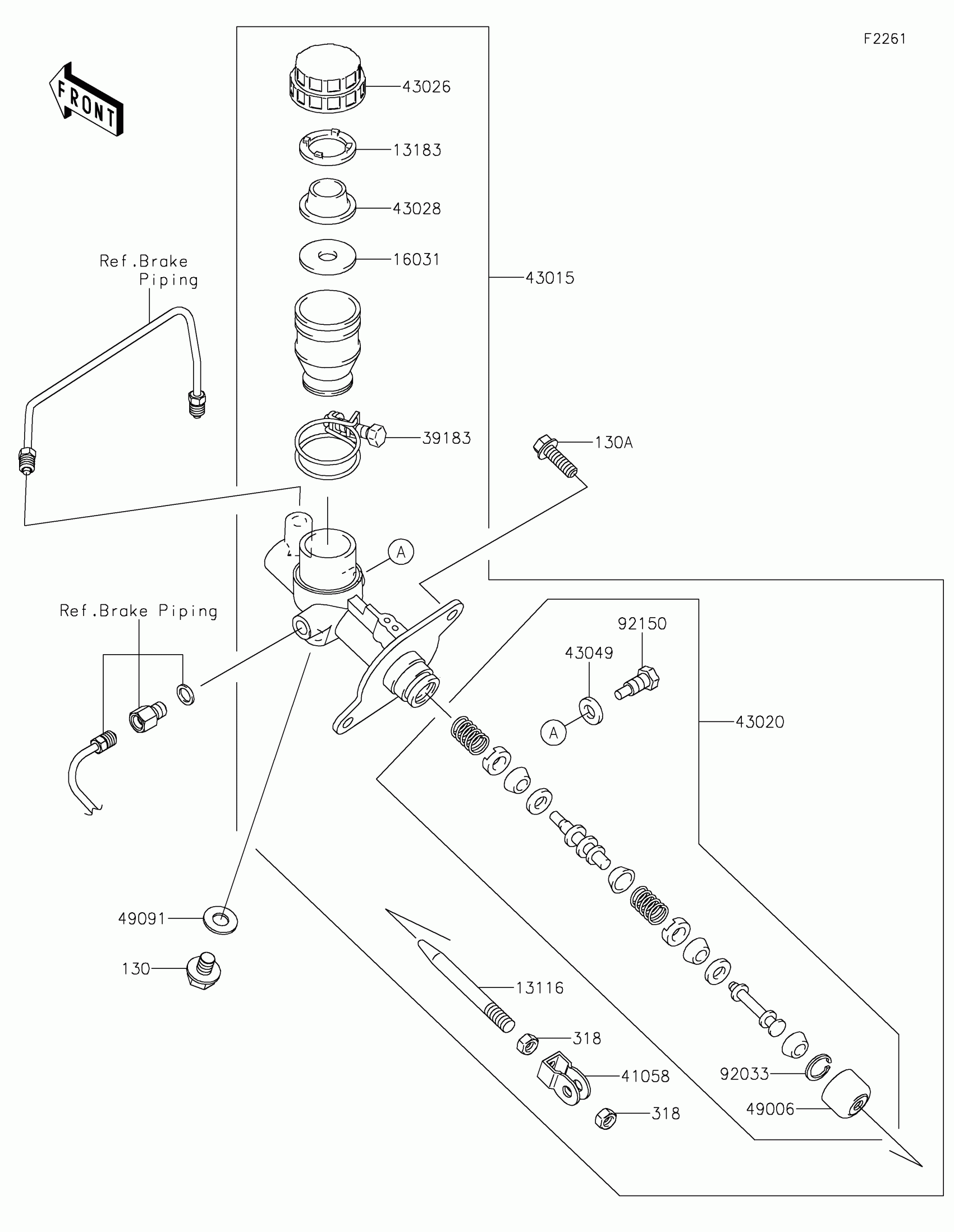

Find the part on the Master Cylinder diagram for your 2020 Kawasaki TERYX4™ Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki TERYX4™ Camo Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13116

ROD-PUSH

13116-1134

1
Out of stock

13183

PLATE

13183-1306

1
Out of stock

16031

FLOAT

16031-1069

1
Out of stock

39183

BAND-ASSY

39183-1055

1

$10.63

In stock

41058

RODEND-BRAKE

41058-1057

1

$16.37

In stock

43015

CYLINDER-ASSY-MASTER

43015-1683

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1124

1
Out of stock

43026

CAP-BRAKE

43026-1067

1
Out of stock

43028

DIAPHRAGM

43028-1078

1
Out of stock

43049

PACKING

43049-1065

1
Out of stock

49006

BOOT

49006-1245

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92033

RING-SNAP

92033-1255

1
Out of stock

92150

BOLT,STOP

92150-1165

1
Out of stock

130

BOLT-FLANGED,10X12

130AA1012

1

$4.17

In stock

130A

BOLT-FLANGED,8X25

130BA0825

1

$2.34

In stock

318

NUT-HEX-SMALL,8MM

318BA0800

1
Out of stock
