Partiron

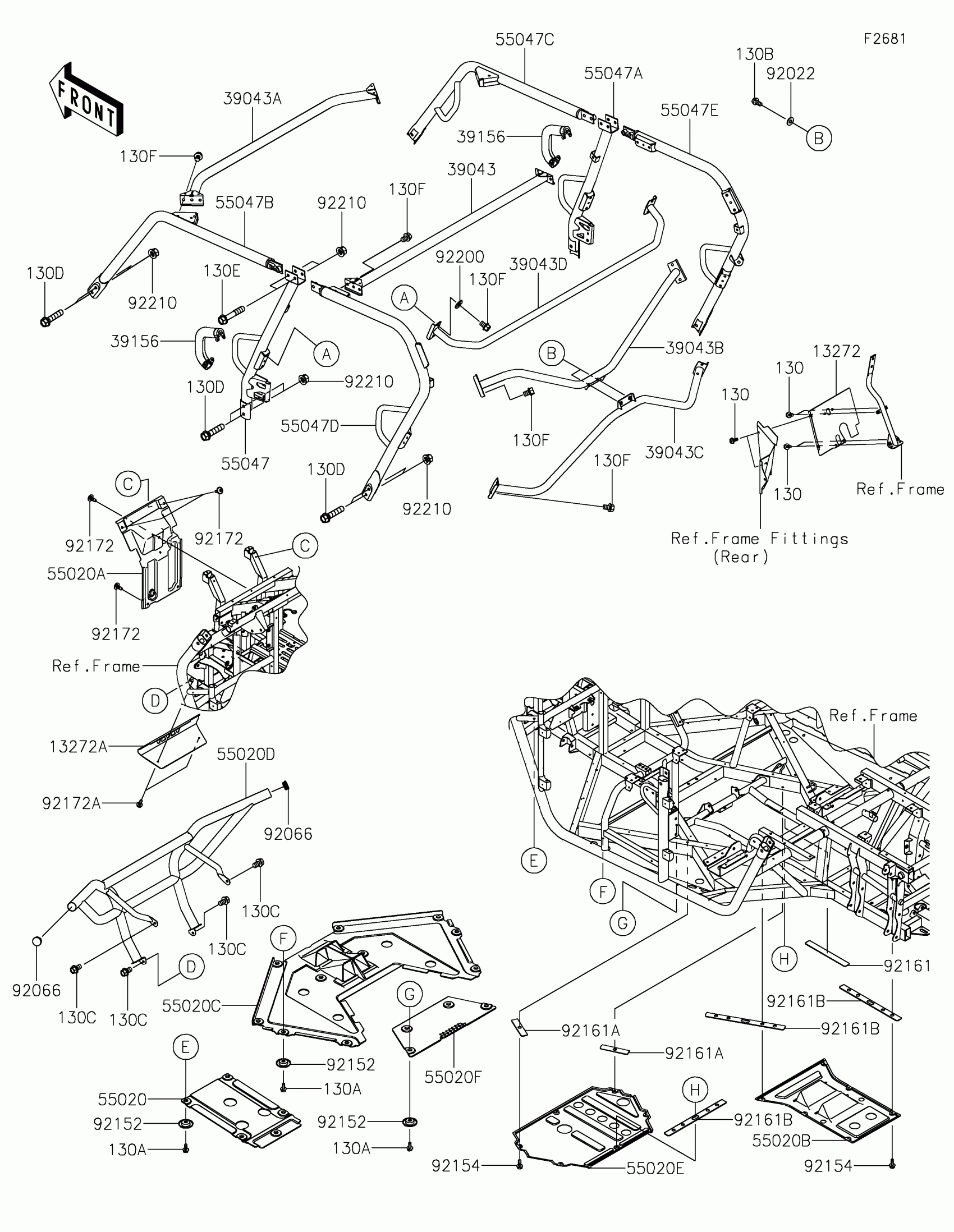

Kawasaki TERYX4™ CAMO Guards/Cab Frame Diagram

#

Description
Price

13272A

PLATE

13272-2064

$12.54

13272B

PLATE,FRONT,T.BLACK

13272-2232-388

$34.98

39043

CROSSMEMBER-COMP,UPP,RR,T.BLK

39043-0009-388

$112.49

39043A

CROSSMEMBER-COMP,UPP,FR,T.BLK

39043-0010-388

$105.51

39043B

CROSSMEMBER-COMP,UPP,T.BLACK

39043-0011-388

$105.51

39043C

CROSSMEMBER-COMP,LWR,T.BLACK

39043-0012-388

$105.51

39043D

CROSSMEMBER-COMP,CNT,LWR,T.BLK

39043-0325-388

$112.49

39156

PAD,SHOULDER

39156-0939

$17.80

55020

GUARD,SKID,FR

55020-0723

$30.77

55020A

GUARD,FR FRAME

55020-0741

$30.86

55020B

GUARD,SKID,RR

55020-0812

$60.86

55020C

GUARD,SKID,FR MIDDLE

55020-0890

$134.19

55020D

GUARD,FRONT,T.BLACK

55020-1859-388

$258.50

55020E

GUARD,SKID,CNT

55020-1884

$116.72

55020F

GUARD

55020-1951

$29.32

55047

BAR-COMP,B-PILLAR,LH,T.BLACK

55047-0357-388

$75.88

55047A

BAR-COMP,B-PILLAR,RH,T.BLACK

55047-0358-388

$75.88

55047B

BAR-COMP,A-PILLAR,LH,T.BLACK

55047-0368-388

$120.77

55047C

BAR-COMP,A-PILLAR,RH,T.BLACK

55047-0369-388

$120.77

55047D

BAR-COMP,C-PILLAR,LH,T.BLACK

55047-0370-388

$108.25

55047E

BAR-COMP,C-PILLAR,RH,T.BLACK

55047-0371-388

$108.25

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92066

PLUG,42MM

92066-0830

Unavailable

92152

COLLAR

92152-0784

$1.54

92154

BOLT,FLANGED,6X16

92154-0887

$1.24

92161

DAMPER,32X270X3

92161-1597

$4.64

92161A

DAMPER,32X140X3

92161-1598

$3.14

92161B

DAMPER,32X390X3

92161-1599

$4.15

92172

SCREW,6X16

92172-0826

$1.62

92172A

SCREW,TAPPING,6X16

92172-0869

$1.14

92200

WASHER,10.2X23X2.5

92200-7506

$3.51

92210

NUT,12MM

92210-0603

$6.85

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X14

130BA0614

$0.97

130B

BOLT-FLANGED,10X16

130BA1016

$3.63

130C

BOLT-FLANGED,8X16

130BB0816

$1.27

130D

BOLT-FLANGED,12X55

130BB1255

$3.24

130E

BOLT-FLANGED,12X65

130BB1265

$7.76

130F

BOLT-FLANGED,10X14

130CB1014

$2.71
