2020 Kawasaki TERYX4™ Camo Drive Converter Diagram

← All diagrams

Find the part on the Drive Converter diagram for your 2020 Kawasaki TERYX4™ Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

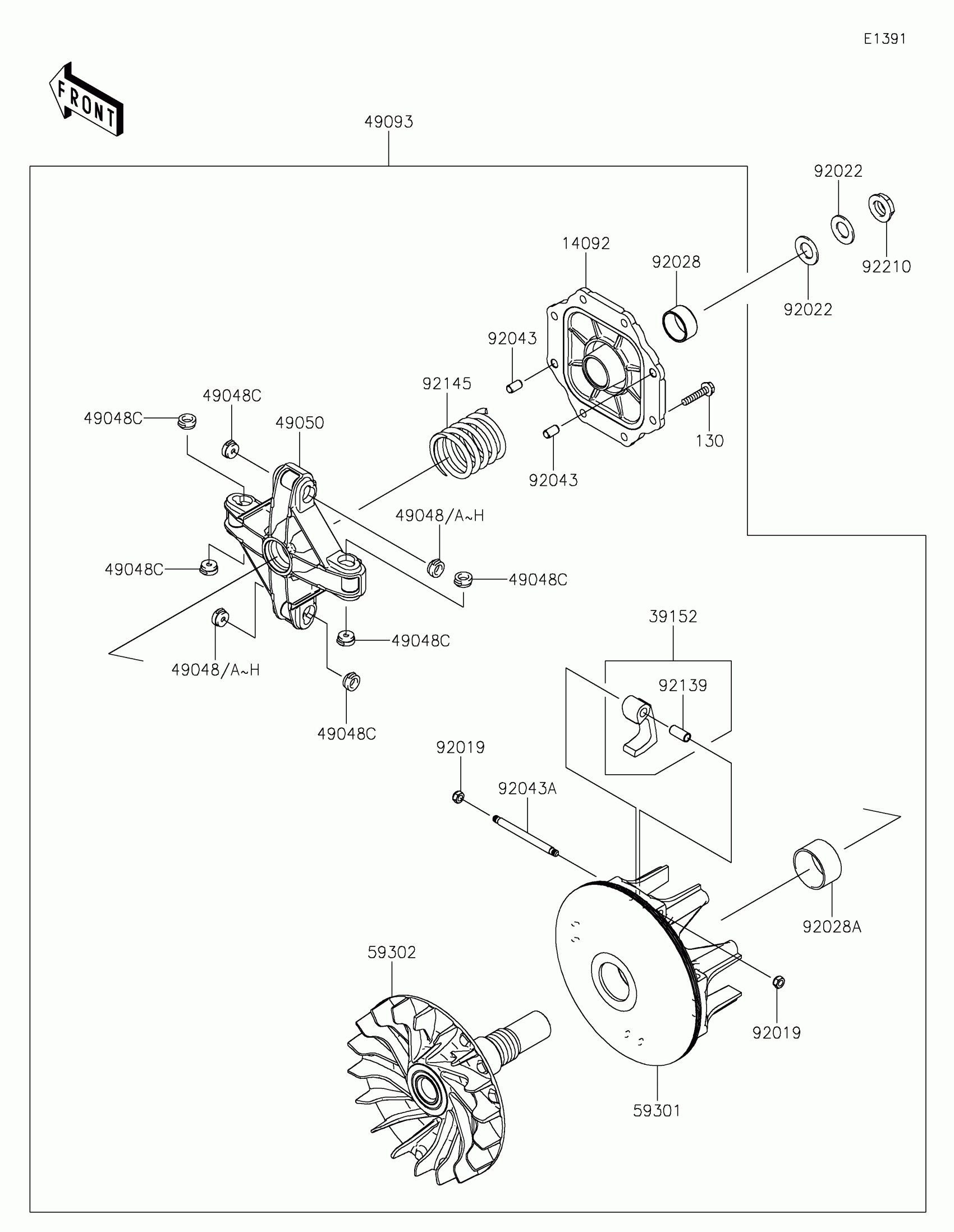

2020 Kawasaki TERYX4™ Camo Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER

14092-1107

1
Out of stock

39152

WEIGHT-RAMP

39152-0042

1

$56.72

In stock

49048

SHOE,T=7.2

49048-1087

—
Out of stock

49048A

SHOE,T=7.3

49048-1088

—
Out of stock

49048B

SHOE,T=7.4

49048-1089

—
Out of stock

49048C

SHOE,T=7.5

49048-1090

1
Out of stock

49048D

SHOE,T=7.6

49048-1091

—
Out of stock

49048E

SHOE,T=7.7

49048-1092

—
Out of stock

49048F

SHOE,T=7.8

49048-1093

—
Out of stock

49048G

SHOE,T=7.9

49048-1094

—
Out of stock

49048H

SHOE,T=8.0

49048-1095

—
Out of stock

49050

SPIDER

49050-0039

1
Out of stock

49093

CONVERTER-ASSY-DRIVE

49093-0049

1
Out of stock

59301

SHEAVE-MOVABLE

59301-0029

1
Out of stock

59302

SHEAVE-COMP

59302-0087

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1
Out of stock

92022

WASHER,16.3X29X1.75

92022-1356

1
Out of stock

92028

BUSHING,KICK LEVER,OUTSIDE

92028-1900

1
Out of stock

92028A

BUSHING

92028-1975

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN

92043-1688

1
Out of stock

92139

BUSHING

92139-0852

1
Out of stock

92145

SPRING

92145-0958

1
Out of stock

92210

NUT,LEFT HANDED,16MM

92210-0350

1
Out of stock

130

BOLT-FLANGED,6X30

130CA0630

1

$2.05

In stock
