2020 Kawasaki TERYX4™ Camo Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2020 Kawasaki TERYX4™ Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

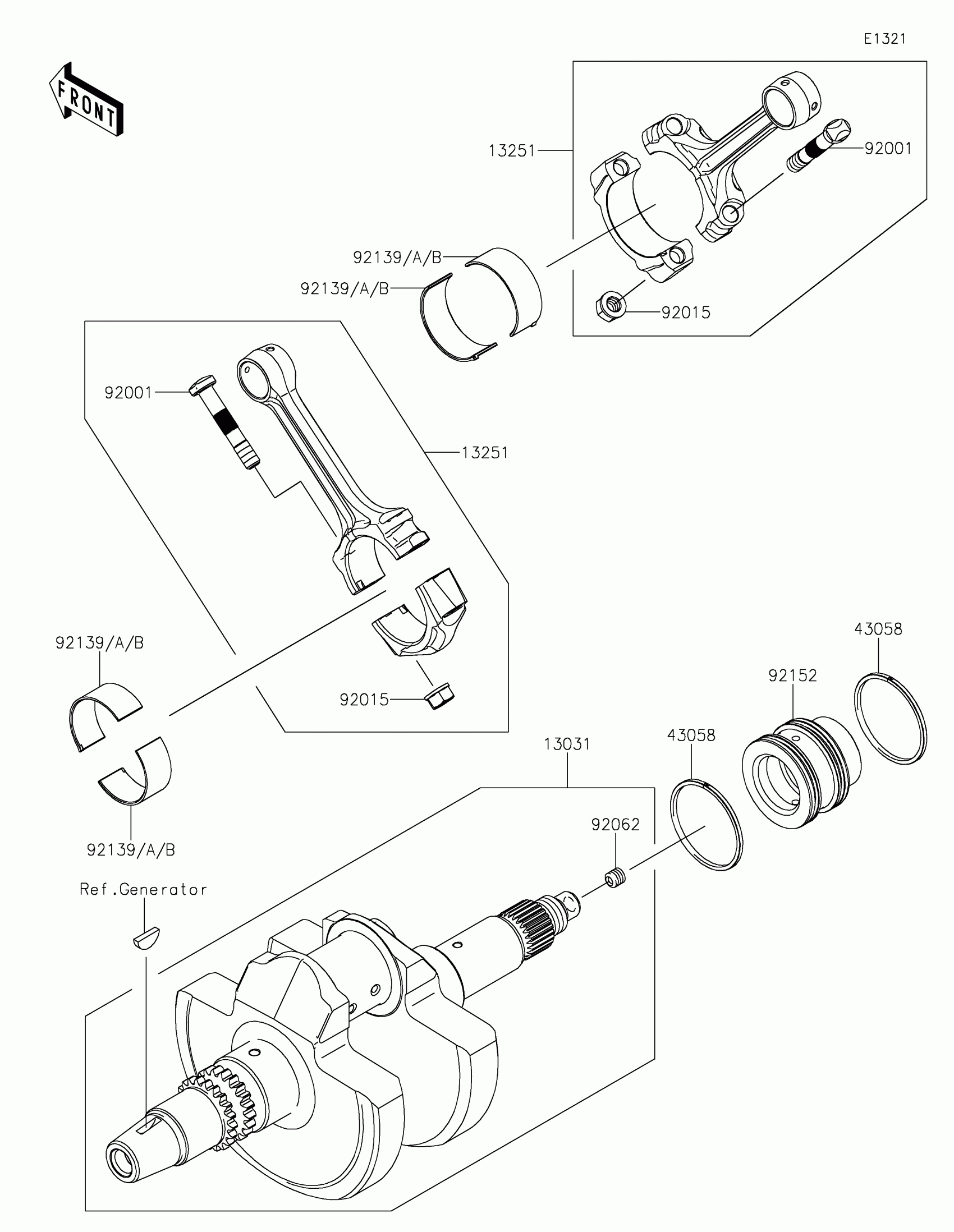

2020 Kawasaki TERYX4™ Camo Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0762

1
Out of stock

13251

ROD-ASSY-CONNECTING

13251-0709

1
Out of stock

43058

RING

43058-0702

1
Out of stock

92001

BOLT,CONNECTING ROD

92001-1980

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92062

NOZZLE,8X8,SILVER

92062-1082

1
Out of stock

92139

BUSHING,CONNECTING ROD,GREEN

92139-0764

—
Out of stock

92139A

BUSHING,CONNECTING ROD,YELLOW

92139-0765

1
Out of stock

92139B

BUSHING,CONNECTING ROD,BROWN

92139-0766

—
Out of stock

92152

COLLAR,CRANK-CLUTCH

92152-0956

1
Out of stock
