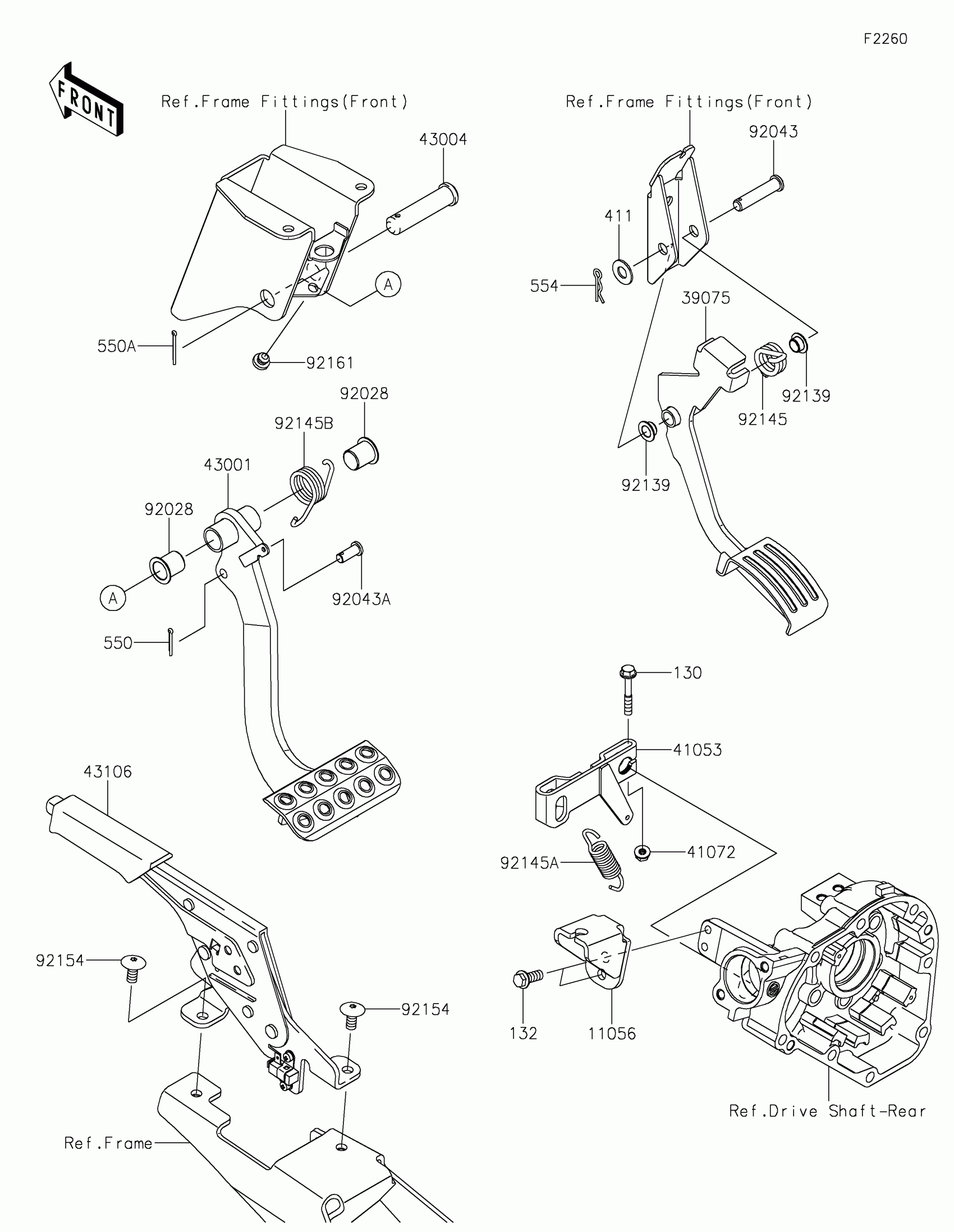

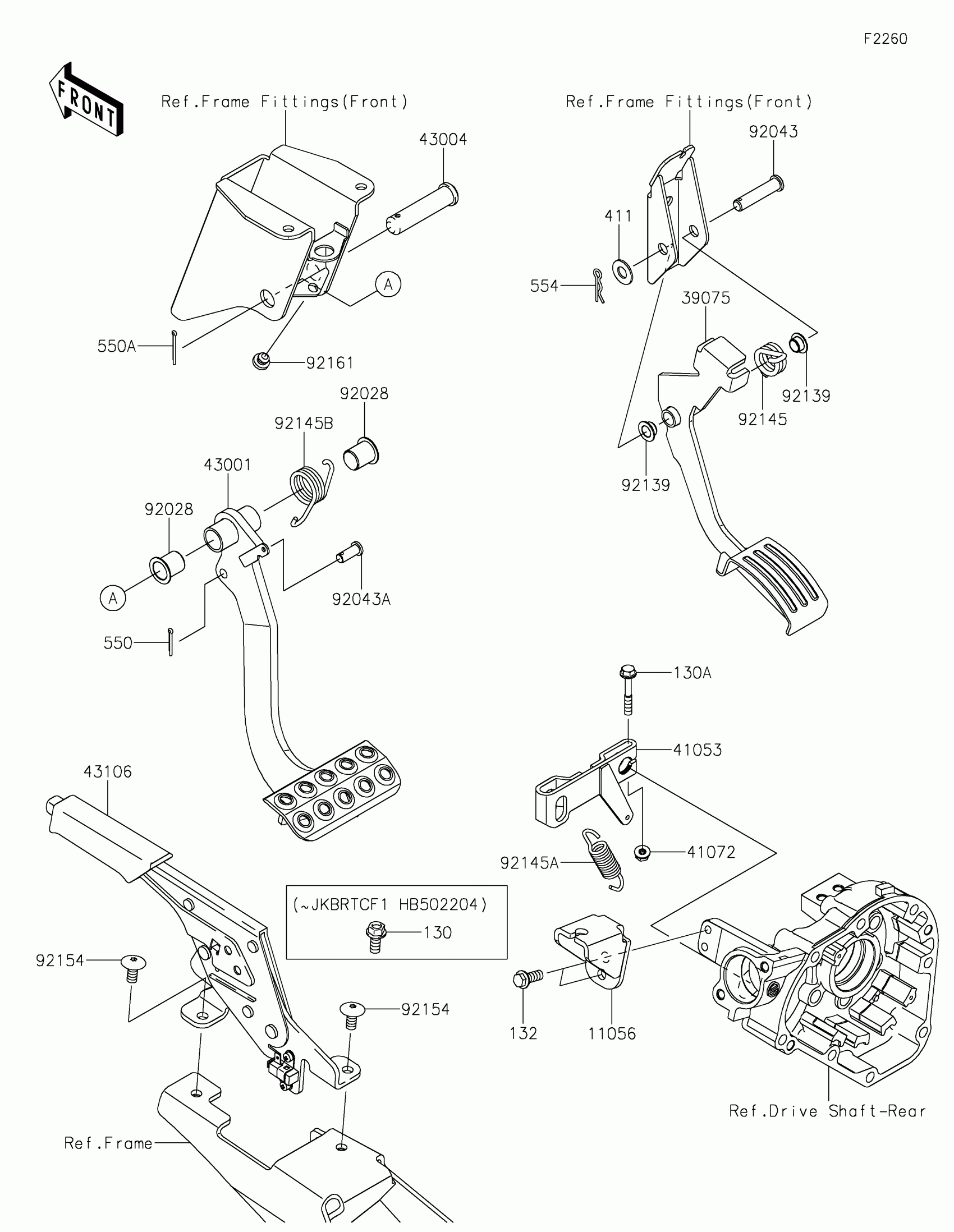

Kawasaki TERYX4™ Brake Pedal/Throttle Lever Diagram

Description

Price

11056

BRACKET

11056-2267

$11.92

39075

LEVER-THROTTLE

39075-0019

$33.19

41053

LEVER-BRAKE CAM

41053-0023

$54.41

41072

NUT,6MM

41072-007

$2.99

43001

LEVER-BRAKE,PEDAL

43001-0739

$46.69

43004

SHAFT-BRAKE

43004-1128

$16.64

43106

LEVER-ASSY-PARKING BRAKE

43106-0005

$110.93

92028

BUSHING

92028-1571

$10.27

92043

PIN,10X42.5

92043-0707

$5.25

92043A

92043-1039

$7.54

92139

BUSHING

92139-0230

$4.10

92145

SPRING,THROTTLE

92145-0831

$9.34

92145A

SPRING,BRAKE CAM LEVER

92145-0880

$4.93

92145B

SPRING,BRAKE PEDAL RETURN

92145-1615

$7.56

92154

BOLT-FLANGED,8X18

92154-2692

$0.89

92161

DAMPER

92161-1084

$1.89

130A

BOLT-FLANGED,6X40

130CA0640

$2.29

132

BOLT-FLANGED-SMALL,8X20

132BA0820

$3.14

411

WASHER-PLAIN,10MM

411AA1000

$0.81

550

PIN-COTTER,2.5X18

550AA2518

$0.61

550A

PIN-COTTER,2.5X25

550AA2525

$1.05

554

PIN-SNAP,10MM

554DA1000

$0.73
