Partiron

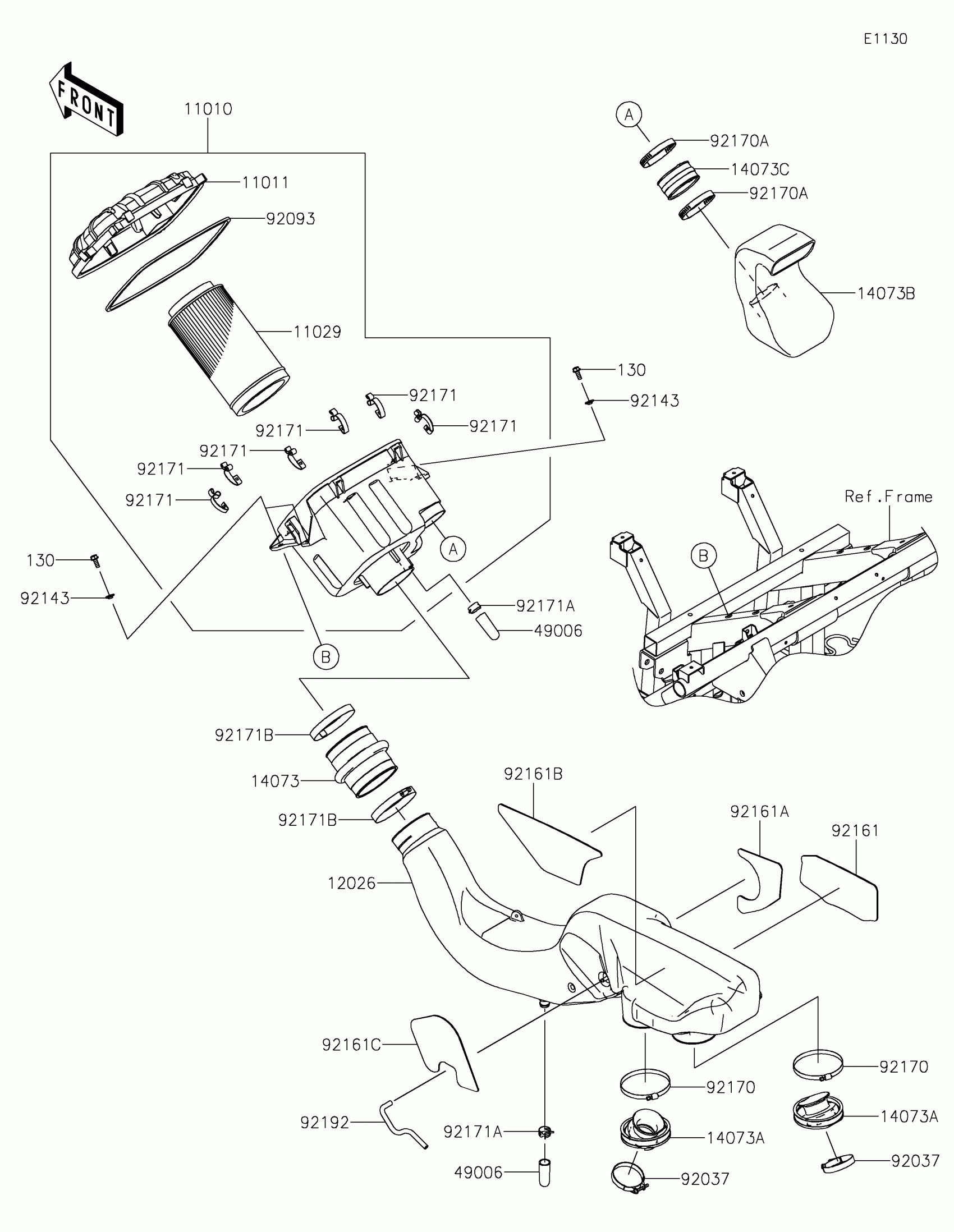

Kawasaki TERYX4™ Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-0777

$153.15

11011

CASE-AIR FILTER

11011-0784

$31.66

11029

ELEMENT-ASSY-AIR FILTER

11029-0025

$38.01

12026

CHAMBER

12026-0016

$195.70

14073

DUCT,JOINT,A/C SIDE

14073-0757

$13.36

14073A

DUCT,THROTTLE-CHAMBER

14073-0758

$10.58

14073B

DUCT,INTAKE

14073-0767

$34.23

14073C

DUCT,JOINT

14073-1775

$3.32

49006

BOOT

49006-1351

$5.74

92037

CLAMP

92037-1523

$9.39

92093

SEAL

92093-0585

$6.00

92143

COLLAR

92143-1087

$2.98

92161

DAMPER,CHAMBER,RH,RR

92161-1518

$14.86

92161A

DAMPER,CHAMBER,RH,FR

92161-1519

$15.36

92161B

DAMPER,CHAMBER,LH,RR

92161-1520

$23.07

92161C

DAMPER,CHAMBER,LH,FR

92161-1521

$22.61

92170

CLAMP

92170-1676

$7.04

92170A

CLAMP

92170-1764

$8.62

92171

CLAMP

92171-0225

$1.44

92171A

CLAMP

92171-1277

$2.25

92171B

CLAMP

92171-3716

$7.79

92192

TUBE,4X8X143

92192-1230

$5.39

130

BOLT-FLANGED,6X16

130AA0616

$0.51
