2013 Kawasaki Teryx4™ 750 4x4 EPS LE Control Diagram

← All diagrams

Find the part on the Control diagram for your 2013 Kawasaki Teryx4™ 750 4x4 EPS LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

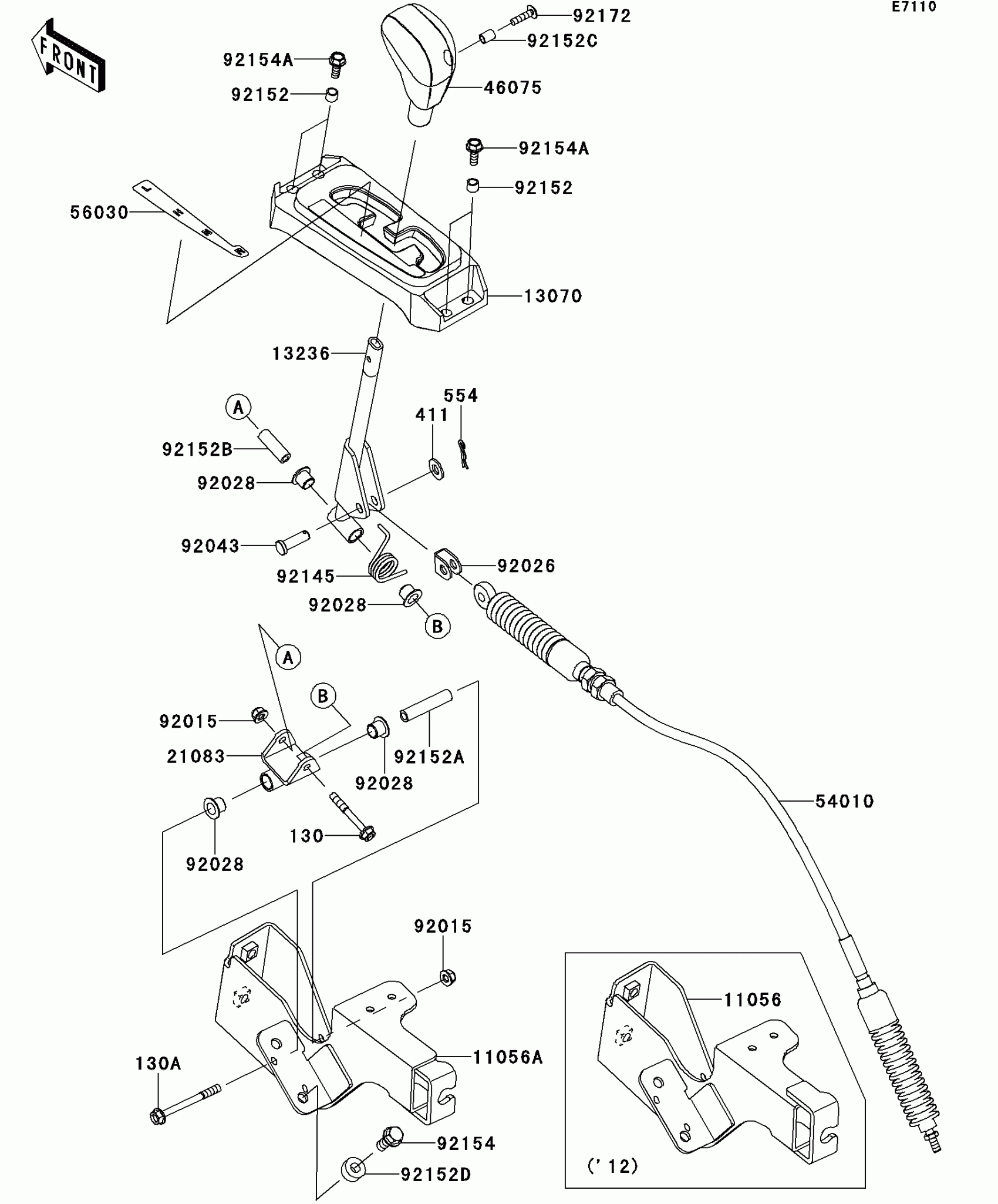

2013 Kawasaki Teryx4™ 750 4x4 EPS LE Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056A

BRACKET

11056-2203

1
Out of stock

130

BOLT-FLANGED,6X45

130CA0645

1

$1.29

In stock

13070

GUIDE,SHIFT GATE

13070-0711

1
Out of stock

130A

BOLT-FLANGED,6X65

130CA0665

1

$1.49

In stock

13236

LEVER-COMP,SHIFT

13236-0710

1
Out of stock

21083

ARM

21083-0710

1
Out of stock

411

WASHER-PLAIN,8MM

411AA0800

1
Out of stock

46075

GRIP

46075-0569

1

$21.39

In stock

54010

CABLE,SHIFT

54010-0583

1
Out of stock

554

PIN-SNAP

554DA0800

1
Out of stock

56030

LABEL,SHIFT POSITION

56030-0727

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92026

SPACER

92026-0074

1
Out of stock

92028

BUSHING

92028-1507

1
Out of stock

92043

PIN

92043-0053

1
Out of stock

92145

SPRING

92145-0832

1
Out of stock

92152

COLLAR

92152-1332

1
Out of stock

92152A

COLLAR,6.0X10X47

92152-1517

1
Out of stock

92152B

COLLAR,6.0X10X30

92152-1518

1
Out of stock

92152C

COLLAR,5.6X8X10.5

92152-1545

1
Out of stock

92152D

COLLAR,8.2X18X8

92152-1553

1
Out of stock

92154

BOLT,FLANGED,8X20

92154-0100

1
Out of stock

92154A

BOLT,FLANGED,6X16

92154-0887

1
Out of stock

92172

SCREW,5X20

92172-2081

1
Out of stock
