2013 Kawasaki TERYX4™ 750 4x4 EPS Front BOX Diagram

← All diagrams

Find the part on the Front BOX diagram for your 2013 Kawasaki TERYX4™ 750 4x4 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

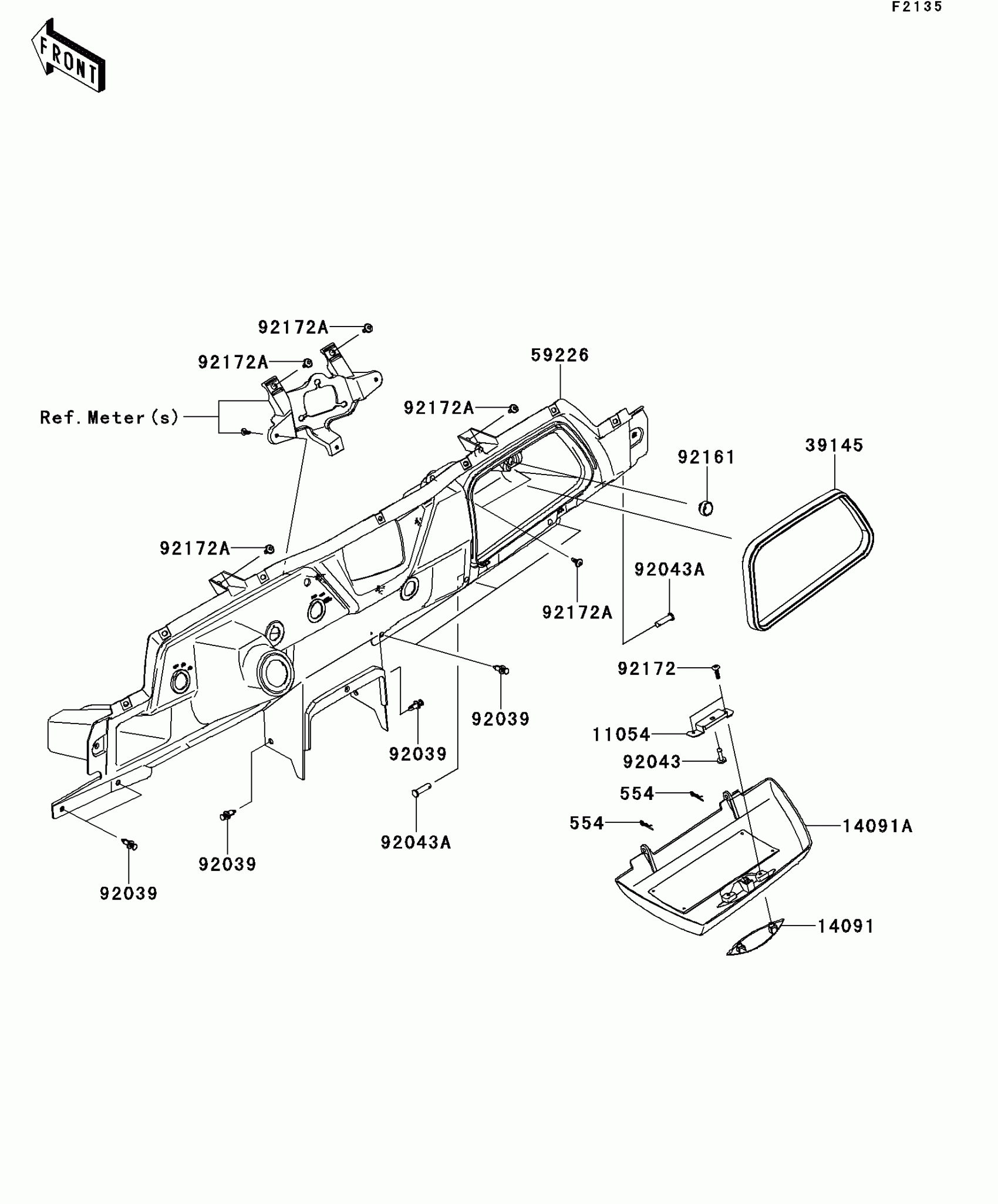

2013 Kawasaki TERYX4™ 750 4x4 EPS Front BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET

11054-1789

1

$4.12

In stock

14091

COVER,STORAGE CAP,F.BLACK

14091-0700-6Z

1
Out of stock

14091A

COVER,STORAGE,F.BLACK

14091-0985-6Z

1
Out of stock

39145

TRIM-SEAL,L=940

39145-0029

1

$18.54

In stock

554

PIN-SNAP,1.2X21.2

554DA0600

1
Out of stock

59226

PANEL-CONTROL

59226-0713

1
Out of stock

92039

RIVET

92039-1229

1
Out of stock

92043

PIN

92043-0138

1
Out of stock

92043A

PIN,6X23

92043-0164

1
Out of stock

92161

DAMPER

92161-0568

1
Out of stock

92172

SCREW,TAPPING,4X16

92172-0347

1
Out of stock

92172A

SCREW,6X16

92172-0711

1
Out of stock
