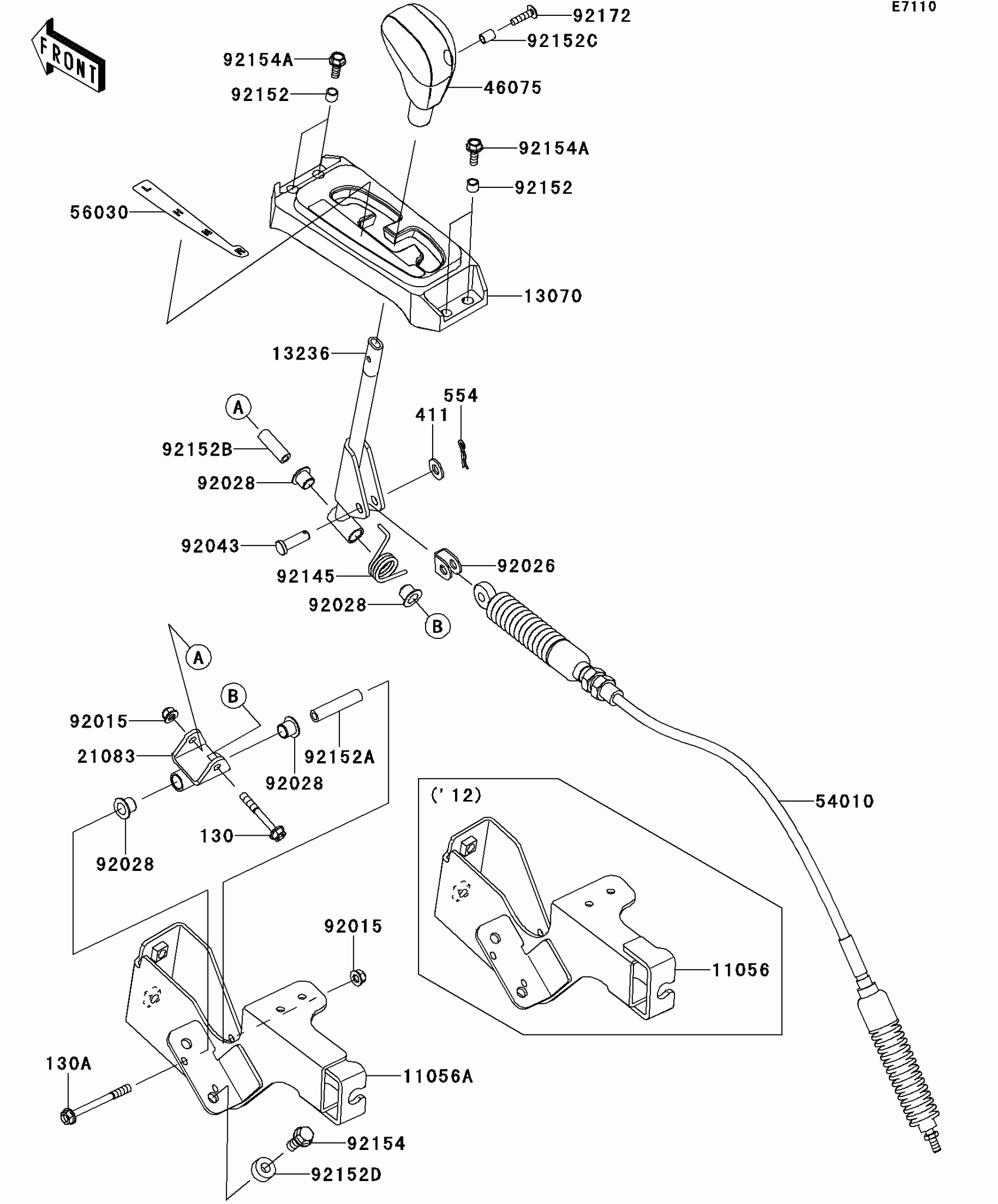

Kawasaki TERYX4™ 750 4x4 (Canadian) Control Diagram

Description

Price

11056A

BRACKET

11056-2203

$70.28

130

BOLT-FLANGED,6X45

130CA0645

$1.49

13070

GUIDE,SHIFT GATE

13070-0711

$23.96

130A

BOLT-FLANGED,6X65

130CA0665

$1.77

13236

LEVER-COMP,SHIFT

13236-0710

Unavailable

21083

ARM

21083-0710

$25.95

411

WASHER-PLAIN,8MM

411AA0800

$1.49

46075

GRIP

46075-0569

$22.85

54010

CABLE,SHIFT

54010-0583

$117.31

554

PIN-SNAP

554DA0800

$1.49

56030

LABEL,SHIFT POSITION

56030-0727

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92026

SPACER

92026-0074

$3.90

92028

BUSHING

92028-1507

$5.25

92043

92043-0053

$5.65

92145

SPRING

92145-0832

$5.29

92152

COLLAR

92152-1332

$4.18

92152A

COLLAR,6.0X10X47

92152-1517

$7.43

92152B

COLLAR,6.0X10X30

92152-1518

$6.63

92152C

COLLAR,5.6X8X10.5

92152-1545

$2.67

92152D

COLLAR,8.2X18X8

92152-1553

$5.90

92154

BOLT,FLANGED,8X20

92154-0100

$2.24

92154A

BOLT,FLANGED,6X16

92154-0887

$1.63

92172

SCREW,5X20

92172-2081

$1.49
