Description

Price

11065

CAP

11065-0072

$5.73

14091

COVER,THROTTLE LINK

14091-1731

$21.24

16163

THROTTLE-ASSY,36EIS

16163-0790

$1,039.48

21176

SENSOR,PRESSURE

21176-0111

$226.99

49033

NOZZLE-INJECTION

49033-0011

$83.76

49056

PIPE-INJECTION

49056-0033

Unavailable

49116

VALVE-ASSY,ISC

49116-0021

$188.10

92009

SCREW,6X12

92009-1480

$2.59

92022

WASHER,5.2X13X1

92022-1380

$3.43

92037

CLAMP,TUBE

92037-1124

$4.83

92037A

CLAMP,L=45

92037-1539

$4.42

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.64

92055A

RING-O,AIR SCREW

92055-1658

$4.75

92093

SEAL

92093-0082

$4.70

92093A

SEAL

92093-0127

$8.38

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$4.54

92172

SCREW

92172-0156

$14.39

92191

TUBE,3.2X7.4X70

92191-1552

$3.71

92192

TUBE,ISC-CHAMBER

92192-0948

$12.22

92192A

TUBE,ISC-THROTTLE RR

92192-1211

$7.15

92192B

TUBE,ISC-THROTTLE FR

92192-1212

$10.24

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.12

220

SCREW-PAN-CROS,4X8

220AA0408

$0.73

220A

SCREW-PAN-CROS,5X16

220AA0516

$1.73

220B

SCREW-PAN-CROS,6X12

220AA0612

$1.10

220C

SCREW-PAN-CROSS,6X14

220AA0614

$1.32

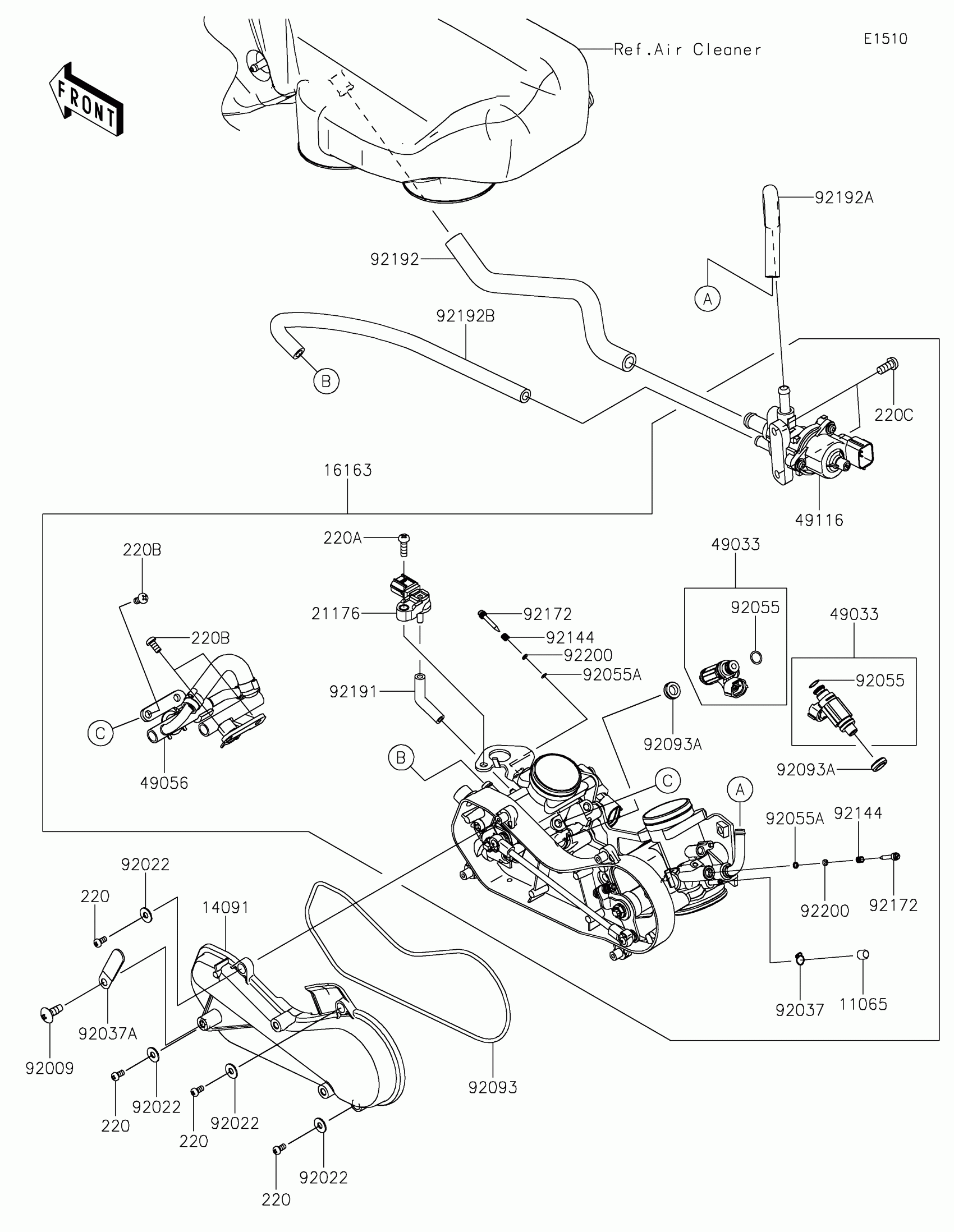

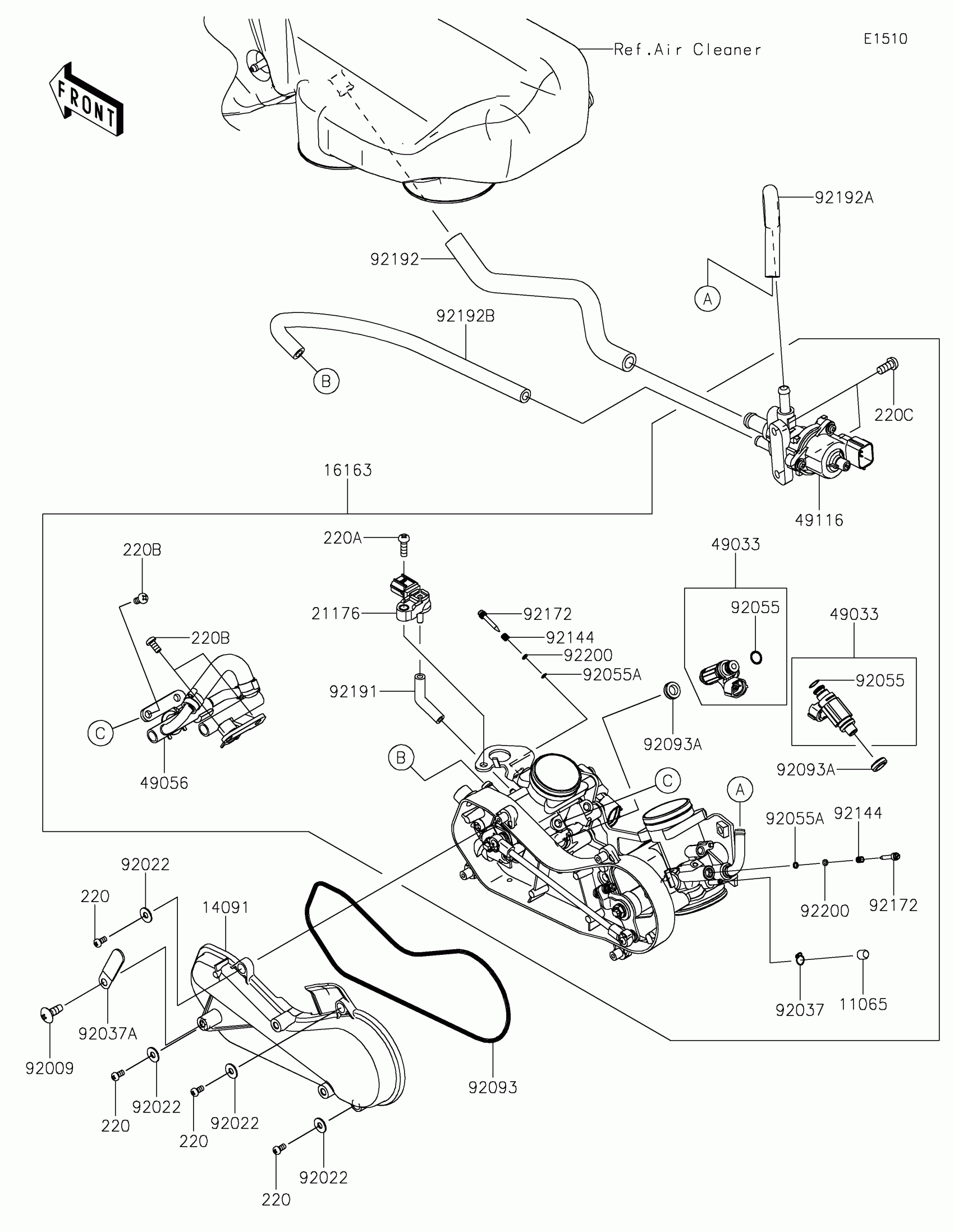

Kawasaki TERYX® Throttle Diagram

PIPE-INJECTION
