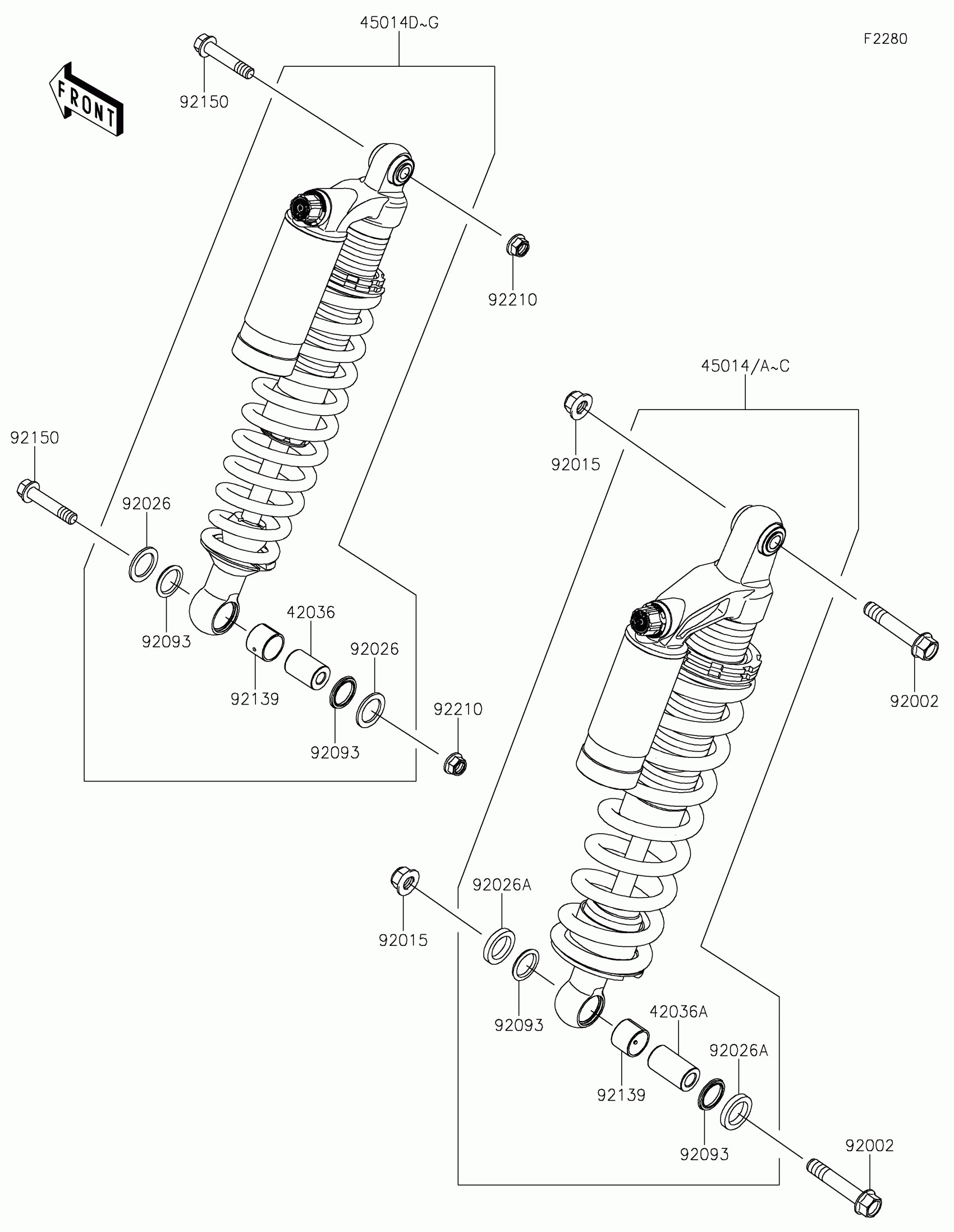

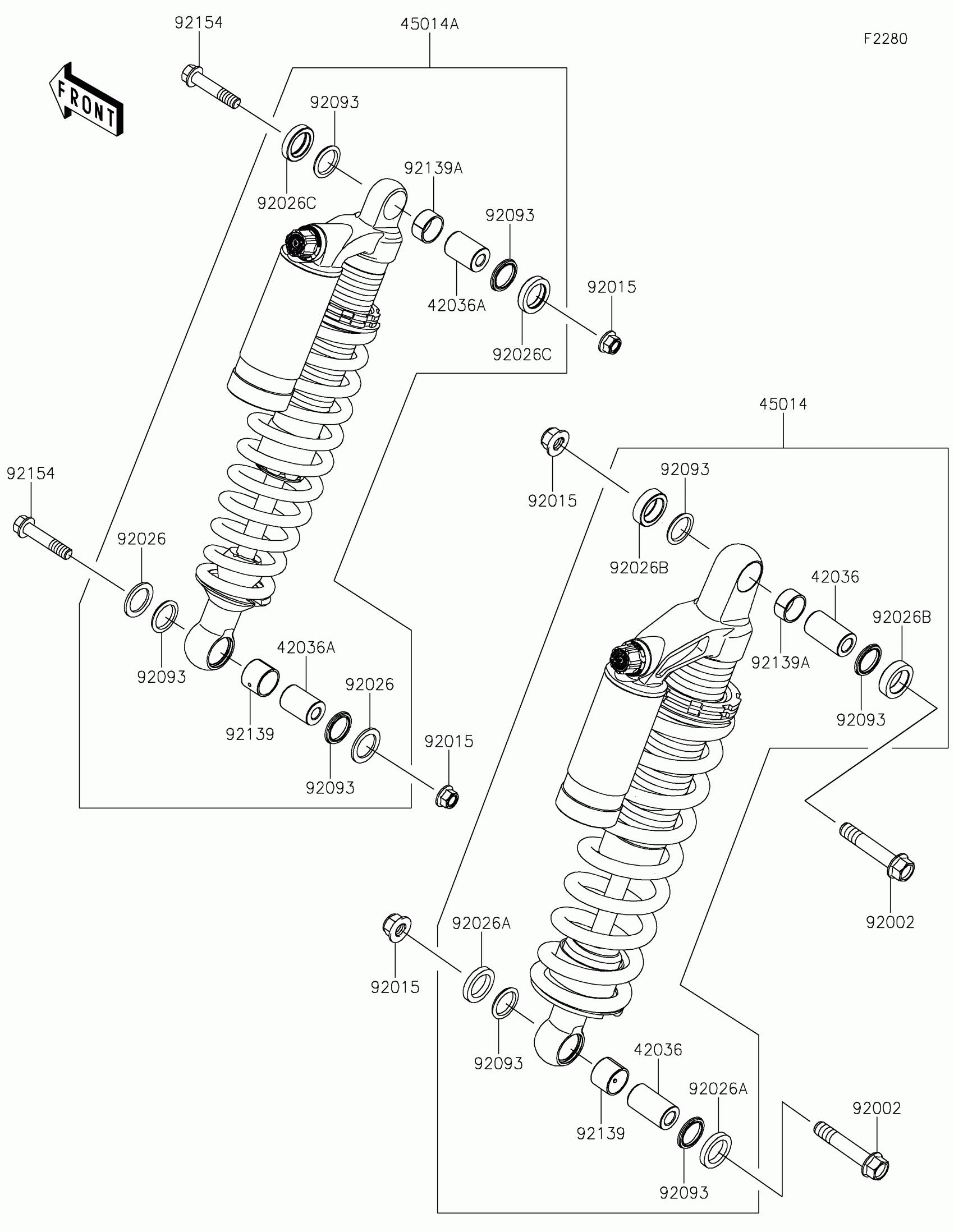

Kawasaki TERYX® Shock Absorber(s) Diagram

Description

Price

42036

SLEEVE

42036-0772

$14.37

42036A

SLEEVE

42036-0773

$13.88

45014B

SHOCKABSORBER,RR,C.B.ORANGE

45014-0485-42M

$717.50

45014C

SHOCKABSORBER,RR,SILVER

45014-0485-42P

$717.50

45014F

SHOCKABSORBER,FR,C.B.ORANGE

45014-0486-42M

$915.23

45014G

SHOCKABSORBER,FR,SILVER

45014-0486-42P

$915.23

92002

BOLT,ROD,12MM

92002-1757

$10.07

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92026

SPACER

92026-0793

$2.47

92026A

SPACER

92026-0794

$2.47

92093

SEAL

92093-0609

$2.37

92139

BUSHING

92139-0809

$9.93

92150

BOLT,FLANGED,10X50

92150-1125

$5.84

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$8.16
