Description

Price

13272

PLATE

13272-2064

$12.54

13272A

PLATE,FRONT,T.BLACK

13272-2232-388

$34.98

39043

CROSSMEMBER-COMP,UPP,RR,T.BLK

39043-0009-388

$112.49

39043A

CROSSMEMBER-COMP,UPP,FR,T.BLK

39043-0010-388

$98.32

39043B

CROSSMEMBER-COMP,T.BLACK

39043-0015-388

$147.90

39156

PAD,SHOULDER

39156-0939

$17.80

55020

GUARD,SKID,FR

55020-0723

$30.77

55020A

GUARD,FR FRAME

55020-0741

$30.86

55020B

GUARD,SKID,RR

55020-0812

$60.86

55020C

GUARD,SKID,FR MIDDLE

55020-0890

$134.19

55020D

GUARD,FRONT,T.BLACK

55020-1859-388

$258.50

55020E

GUARD,SKID,CNT

55020-1884

$116.72

55020F

GUARD

55020-1951

$29.32

55047

BAR-COMP,B-PILLAR,LH,T.BLACK

55047-0359-388

$86.72

55047A

BAR-COMP,B-PILLAR,RH,T.BLACK

55047-0360-388

$86.72

55047B

BAR-COMP,A-PILLAR,RH,T.BLACK

55047-0372-388

$224.15

55047C

BAR-COMP,A/C-PILLAR,LH,T.BLACK

55047-0373-388

$224.15

92066

PLUG,42MM

92066-0830

$1.33

92152

COLLAR

92152-0784

$1.54

92154

BOLT,FLANGED,6X16

92154-0887

$1.24

92161

DAMPER,32X270X3

92161-1597

$4.64

92161A

DAMPER,32X140X3

92161-1598

$3.14

92161B

DAMPER,32X390X3

92161-1599

$4.15

92172

SCREW,6X16

92172-0826

$1.62

92172A

SCREW,TAPPING,6X16

92172-1388

$1.14

92210

NUT,12MM

92210-0603

$6.85

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X14

130BA0614

$0.97

130B

BOLT-FLANGED,10X16

130BA1016

$3.63

130C

BOLT-FLANGED,12X55

130BA1255

$7.69

130D

BOLT-FLANGED,10X14

130CA1014

$2.31

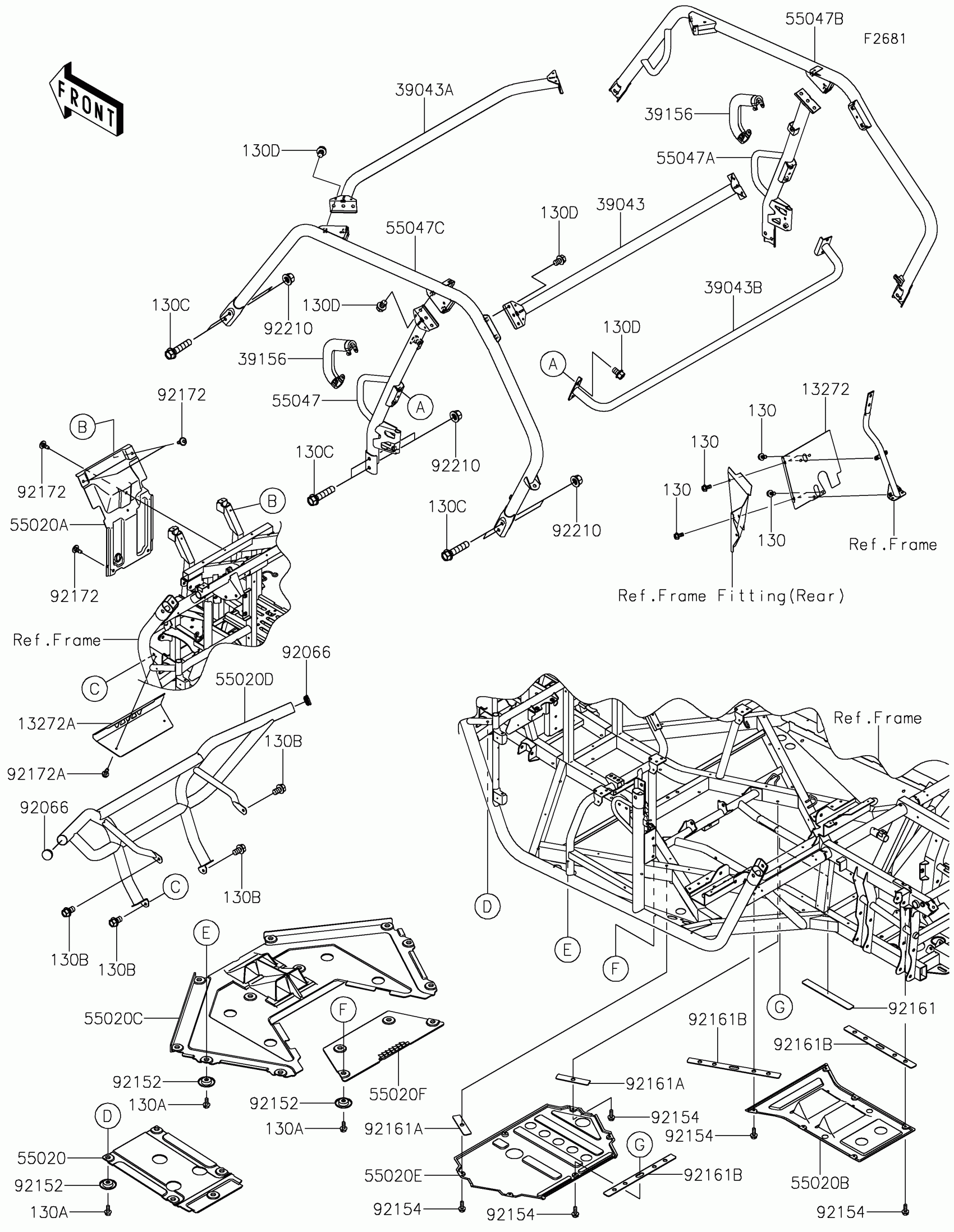

Kawasaki TERYX® S Guards/Cab Frame Diagram
