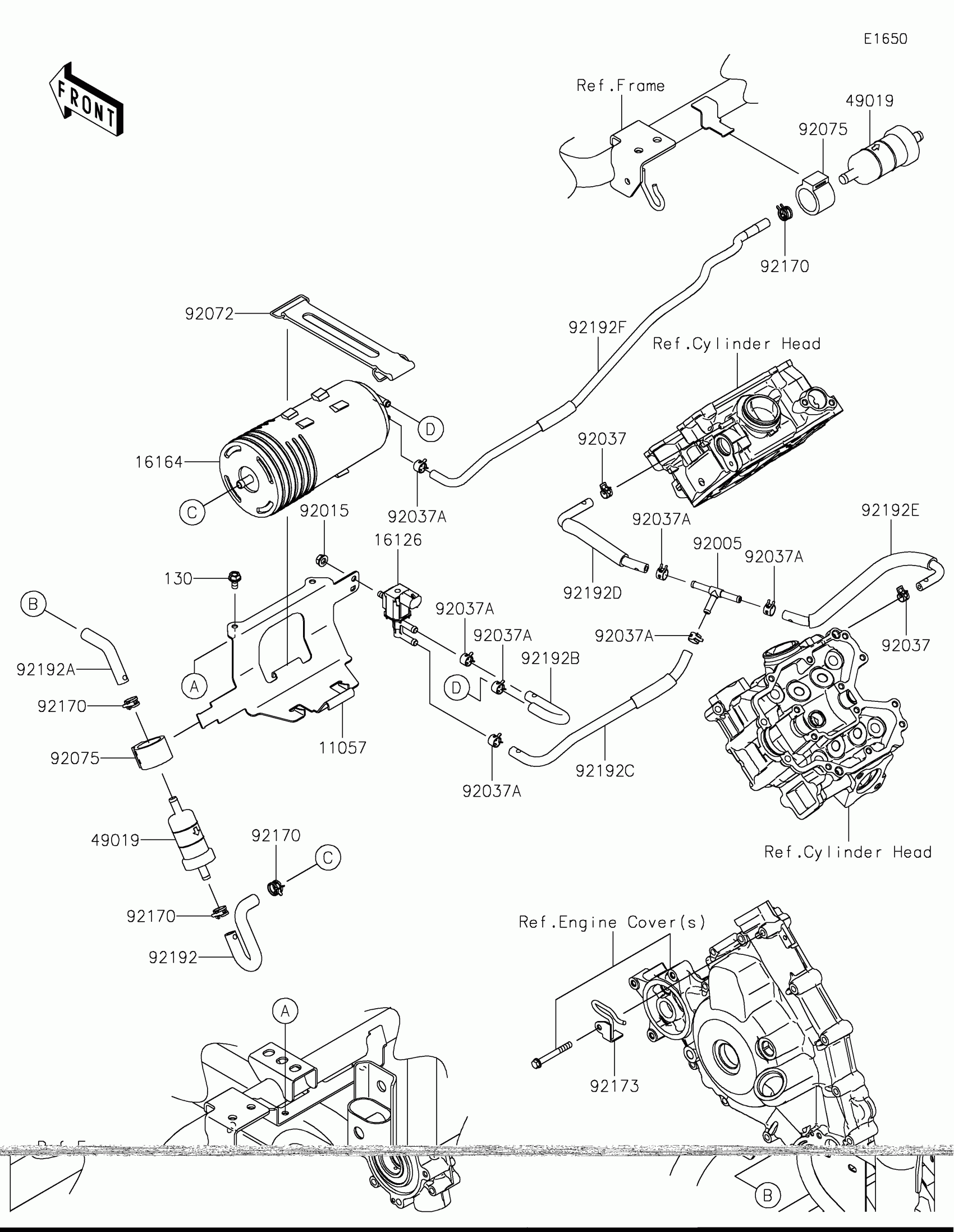

Kawasaki TERYX® S Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-0609

$31.48

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0016

$209.81

49019

FILTER-FUEL

49019-0032

$18.12

92005

FITTING,T

92005-0885

$4.07

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,TUBE

92037-1461

$2.93

92037A

CLAMP

92037-2113

$0.97

92072

BAND,L=168

92072-1306

$10.44

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92170

CLAMP

92170-2082

$0.71

92173

CLAMP,TUBE GUIDE

92173-1837

$31.18

92192

TUBE,CANISTER-FUEL FILTER

92192-1737

$2.42

92192A

TUBE,AIR-FUEL FILTER

92192-1738

$3.36

92192B

TUBE,CANISTER-VALVE

92192-1739

$25.24

92192C

TUBE,VALVE-FITTING

92192-1740

$42.63

92192D

TUBE,FITTING-HEAD(FR)

92192-1742

$39.50

92192E

TUBE,FITTING-HEAD(RR)

92192-1743

$46.52

92192F

TUBE,FILTER-FUEL-CANISTER

92192-2258

$76.23

130

BOLT-FLANGED,6X12

130BA0612

$1.25
