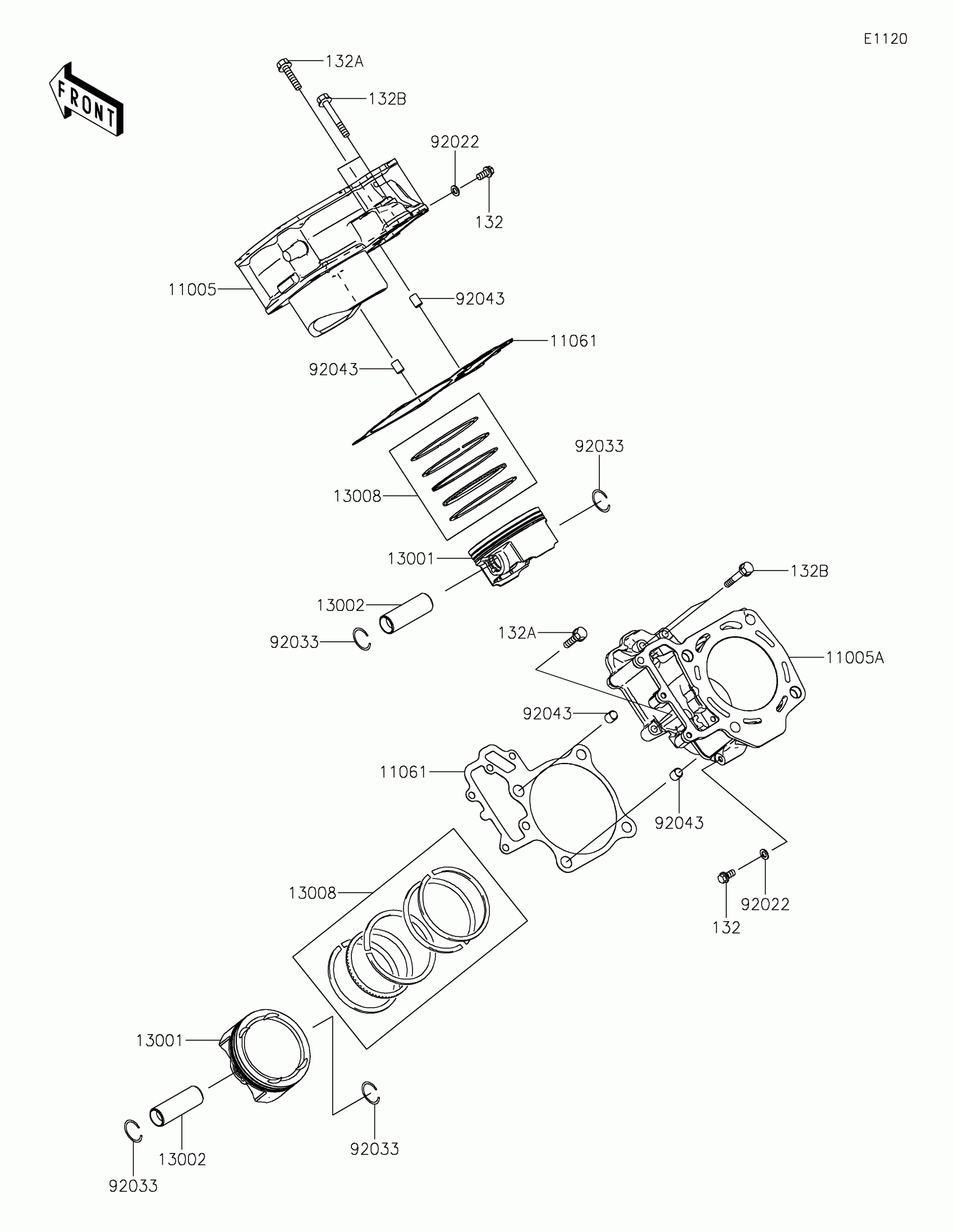

Kawasaki TERYX® S Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE,FR

11005-0628

$561.87

11005A

CYLINDER-ENGINE,RR

11005-0629

$561.87

11061

GASKET,CYLINDER BASE

11061-0730

$17.69

13001

PISTON-ENGINE

13001-0740

$130.25

13002

PIN-PISTON

13002-0711

$36.83

13008

RING-SET-PISTON

13008-0042

$50.60

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP

92033-1207

$1.65

92043

PIN,10.1X12X14

92043-4009

$4.67

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

132B

BOLT-FLANGED-SMALL,6X40

132BA0640

$3.39
