Description

Price

11065

CAP

11065-0253

$3.08

39007B

ARM-SUSP,RR,UPP,LH,C.B.ORANGE

39007-0345-42R

$133.00

39007C

ARM-SUSP,RR,UPP,LH,ORANGE

39007-0345-57V

$133.00

39007F

ARM-SUSP,RR,UPP,RH,C.B.ORANGE

39007-0346-42R

$133.00

39007G

ARM-SUSP,RR,UPP,RH,ORANGE

39007-0346-57V

$133.00

39007J

ARM-SUSP,RR,LWR,LH,C.B.ORANGE

39007-0347-42R

$133.00

39007K

ARM-SUSP,RR,LWR,LH,ORANGE

39007-0347-57V

$133.00

39007N

ARM-SUSP,RR,LWR,RH,C.B.ORANGE

39007-0348-42R

$133.00

39007O

ARM-SUSP,RR,LWR,RH,ORANGE

39007-0348-57V

$133.00

39186

KNUCKLE,RR

39186-0316

$151.47

42036

SLEEVE

42036-0062

$22.11

42036A

SLEEVE,10X17X88

42036-0710

$12.27

55020

GUARD,REAR ARM

55020-0805

$10.90

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92026

SPACER,17X28.6X3

92026-0746

$2.21

92045

BEARING-BALL,30X62X40

92045-0801

$91.16

92049

SEAL-OIL,17X24X3

92049-0726

$6.03

92092

BUSHING-RUBBER

92092-0555

$15.04

92139

BUSHING

92139-0231

$6.12

92139A

BUSHING,17X24X21.5

92139-0736

$11.46

92143

COLLAR

92143-1087

$3.11

92153

BOLT,FLANGED,12X76.5

92153-1733

$6.16

92154

BOLT,FLANGED,10X117

92154-0743

$7.29

92200

WASHER,10.3X23X1.6

92200-2009

$1.20

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$8.16

130

BOLT-FLANGED,6X12

130BA0612

$1.46

481

CIRCLIP

481J6200

$8.92

670

O RING,18MM

670B2018

$1.25

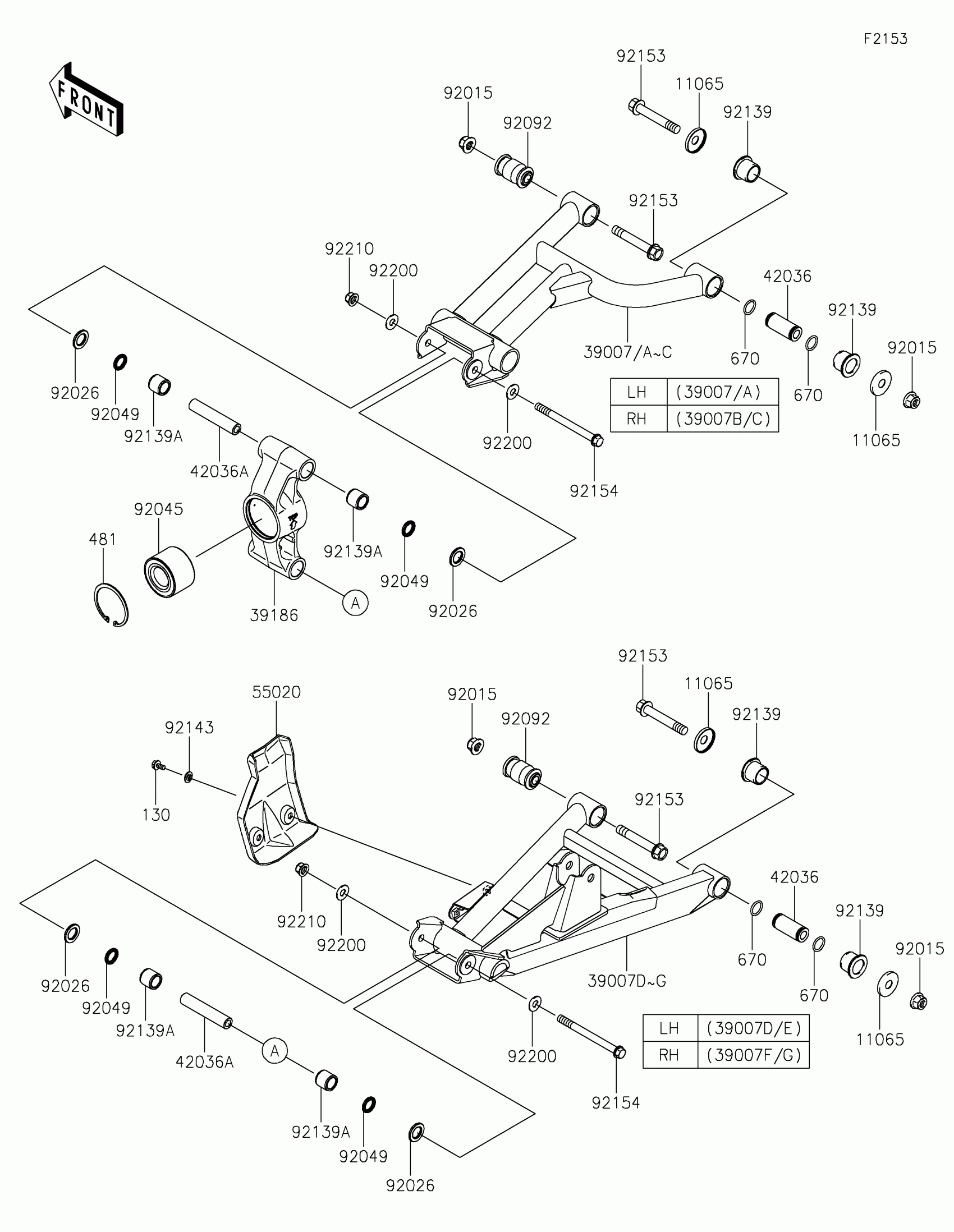

Kawasaki TERYX® Rear Suspension Diagram
