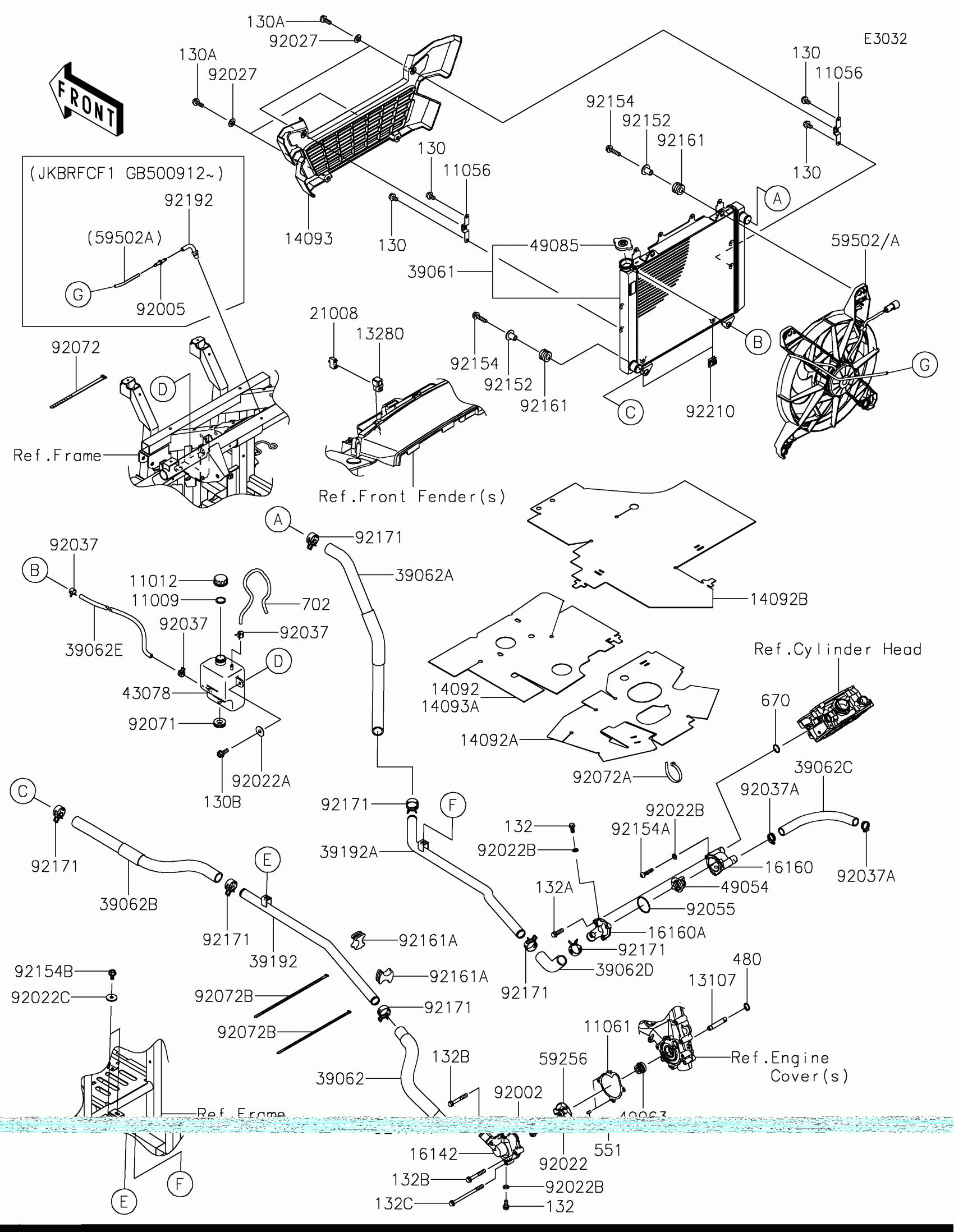

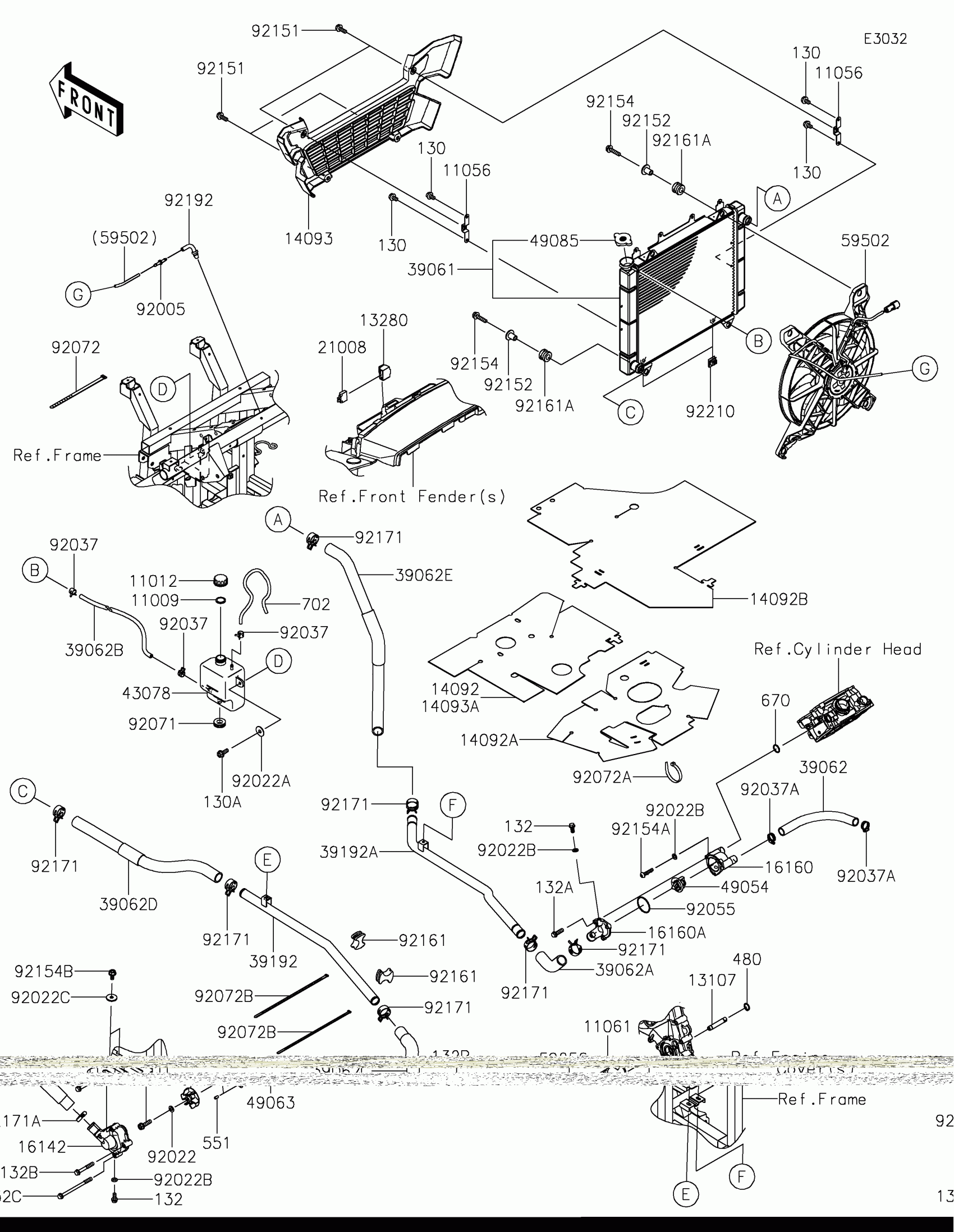

Kawasaki TERYX® Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.25

11012

CAP

11012-1084

$1.31

11056

BRACKET

11056-7103

$9.78

11061

GASKET,WATER PUMP COVER

11061-0731

$7.19

13107

SHAFT,WATER PUMP

13107-0719

$20.00

13280

HOLDER,BREAKER

13280-0082

$4.92

14092A

COVER,HEAT GUARD,RR

14092-1061

$22.81

14092B

COVER,CHAMBER

14092-1142

$52.26

14093

COVER,RADIATOR

14093-0206

$28.57

16142

COVER-PUMP,WATER

16142-0743

$65.17

16160

BODY,THERMOSTAT,LWR

16160-0734

$81.56

16160A

BODY,THERMOSTAT,UPP

16160-0735

$68.51

21008

BREAKER,RAD. FAN,20A

21008-0554

$28.82

39061

RADIATOR-ASSY

39061-0568

$489.18

39062

HOSE-COOLING,WATER PUMP IN

39062-0580

$33.48

39062A

HOSE-COOLING,RADIATOR IN

39062-0619

$64.84

39062B

HOSE-COOLING,RADIATOR OUT

39062-0620

$43.44

39062C

HOSE-COOLING,RR HEAD-THERMO.

39062-0621

$13.54

39062D

HOSE-COOLING,THERMO OUT

39062-0669

$14.97

39062E

HOSE-COOLING,RESERVOIR-RAD.

39062-0698

$2.29

39192

PIPE-WATER,LH

39192-0569

$32.96

39192A

PIPE-WATER,RH

39192-0571

$41.34

43078

RESERVOIR

43078-0070

$39.99

49054

THERMOSTAT

49054-1055

$49.29

49063

SEAL-MECHANICAL

49063-1055

$18.61

49085

CAP-ASSY-PRESSURE

49085-0005

$41.25

59256

IMPELLER

59256-0555

$38.51

59502A

FAN-ASSY

59502-0610

$394.57

92002

BOLT,6X22

92002-1154

$3.72

92005

FITTING

92005-0851

$1.86

92022

WASHER OIL PUMP BANJO

92022-077

$3.13

92022A

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92022B

WASHER,6.2X11X1

92022-304

$2.92

92022C

WASHER,6.2X20X2

92022-3714

$3.33

92027

COLLAR

92027-4020

$3.69

92037

CLAMP,TUBE

92037-1461

$3.08

92037A

CLAMP,COOLING HOSE

92037-1589

$14.60

92055

RING-O,44.7X2.4

92055-1279

$5.84

92071

GROMMET

92071-1115

$4.34

92072

BAND,L=218

92072-032

$3.97

92072A

BAND,L=250

92072-1237

$1.80

92072B

BAND,L=368.3

92072-3872

$1.39

92152

COLLAR

92152-1512

$3.36

92154

BOLT,FLANGED,6X25

92154-0707

$1.10

92154A

BOLT,SOCKET,6X25

92154-1142

$1.44

92154B

BOLT,FLANGED,6X12

92154-1195

$1.32

92161

DAMPER

92161-1349

$0.69

92161A

DAMPER,PIPE WATER

92161-1513

$2.92

92171

CLAMP,COOLING HOSE

92171-0060

$3.50

92171A

CLAMP

92171-0179

$6.51

92192

TUBE,BREATHER

92192-1703

$4.75

92210

NUT,CLIP,6MM

92210-0867

$2.25

130

BOLT-FLANGED,6X10

130BA0610

$1.12

130A

BOLT-FLANGED,6X14

130BA0614

$1.12

130B

BOLT-FLANGED,6X16

130BA0616

$1.12

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.12

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.05

132B

BOLT-FLANGED-SMALL,6X40

132BA0640

$3.53

132C

BOLT-FLANGED-SMALL,6X80

132BA0680

$3.97

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.67

551

PIN-DOWEL,4X8

551A0408

$0.80

670

O RING,20MM

670B2020

$1.12

702

TUBE-RUBBER,5X8X380

702A05380

Unavailable
