Description

Price

12046

SPROCKET,OIL PUMP,37T

12046-0577

$89.63

12053

GUIDE-CHAIN

12053-0180

$20.80

13107

SHAFT,OIL PUMP

13107-0718

$10.57

13272

PLATE

13272-0988

$2.44

16097

FILTER-ASSY-OIL

16097-0007

$12.25

16130

VALVE-ASSY-RELIEF

16130-1058

$38.20

16142

COVER-PUMP

16142-0704

$22.73

16154

ROTOR-PUMP,OUTER

16154-0706

$23.74

16154A

ROTOR-PUMP,INNER

16154-0707

$18.47

26011

WIRE-LEAD

26011-0818

$10.32

27010

SWITCH,OIL PRESSURE

27010-1313

$36.57

32033

PIPE,OIL FILTER

32033-1535

$10.27

39193

PIPE-OIL

39193-0570

$34.65

49065

FILTER-OIL

49065-0710

$26.48

92042

PIN,DOWEL,4X16.8

92042-029

$4.52

92042A

PIN,DOWEL,4X13.8

92042-030

$3.12

92057

CHAIN,DID SCR-0409 SV

92057-0561

$26.73

92145

SPRING

92145-0830

$3.25

92154

BOLT,FLANGED,6X8.3

92154-0709

$8.37

92200

WASHER,11.3X23X1

92200-0719

$2.19

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.12

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.17

132B

BOLT-FLANGED-SMALL,6X35

132BA0635

$1.73

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.99

551

PIN-DOWEL,4X8

551A0408

$0.80

670

O RING,7MM

670D1507

$1.44

670A

O RING,18MM

670D2018

$1.61

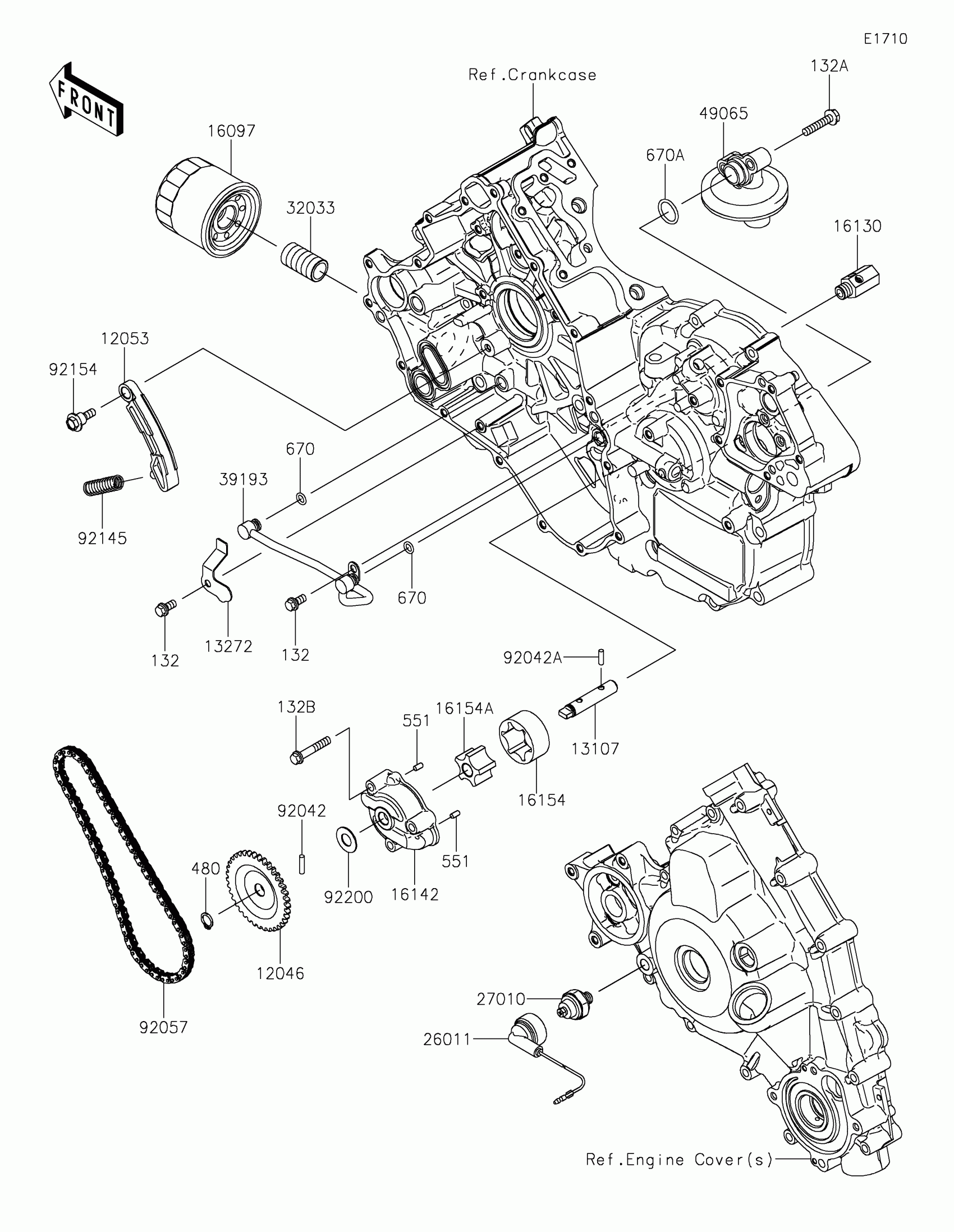

Kawasaki TERYX® Oil Pump/Oil Filter Diagram
