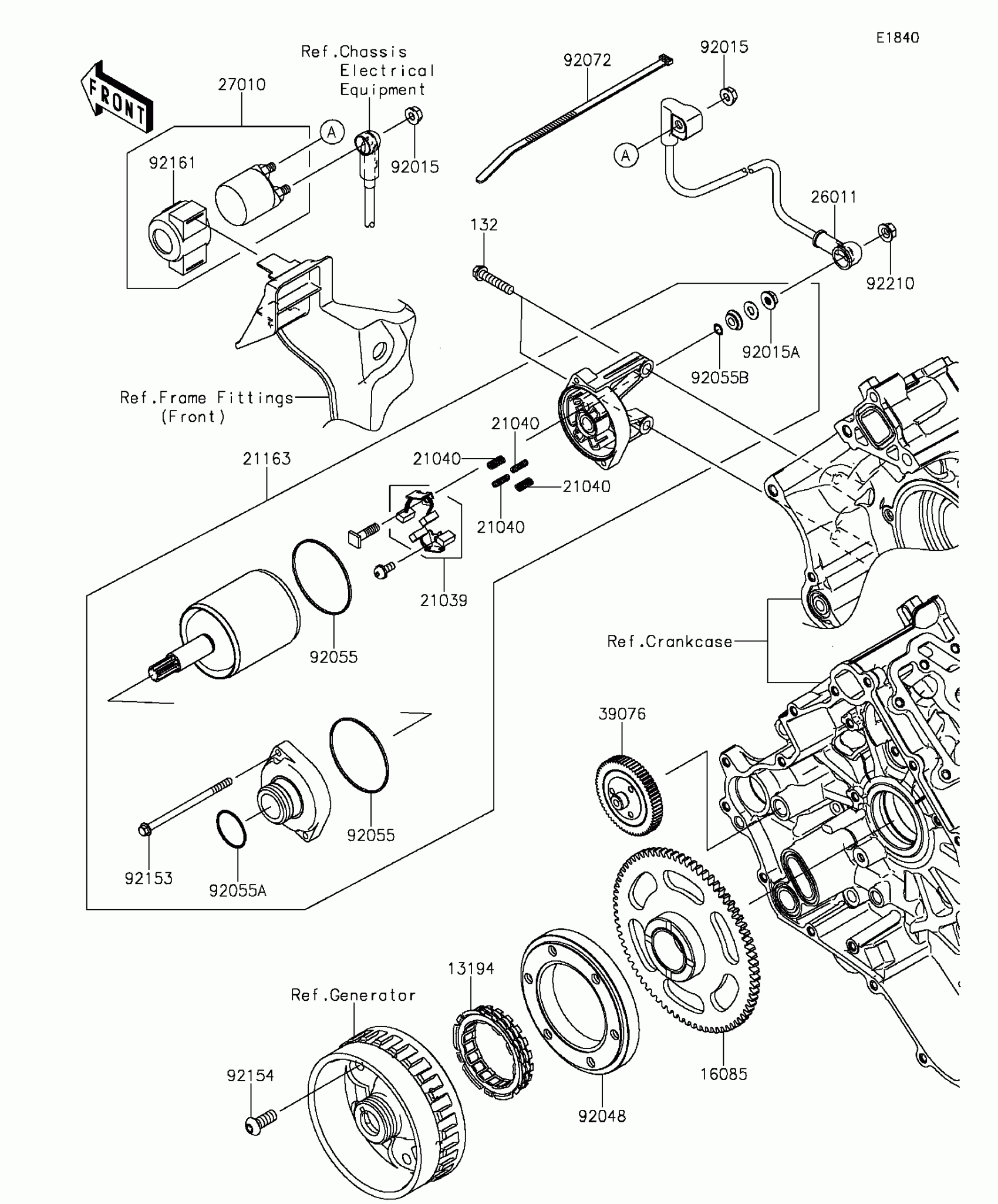

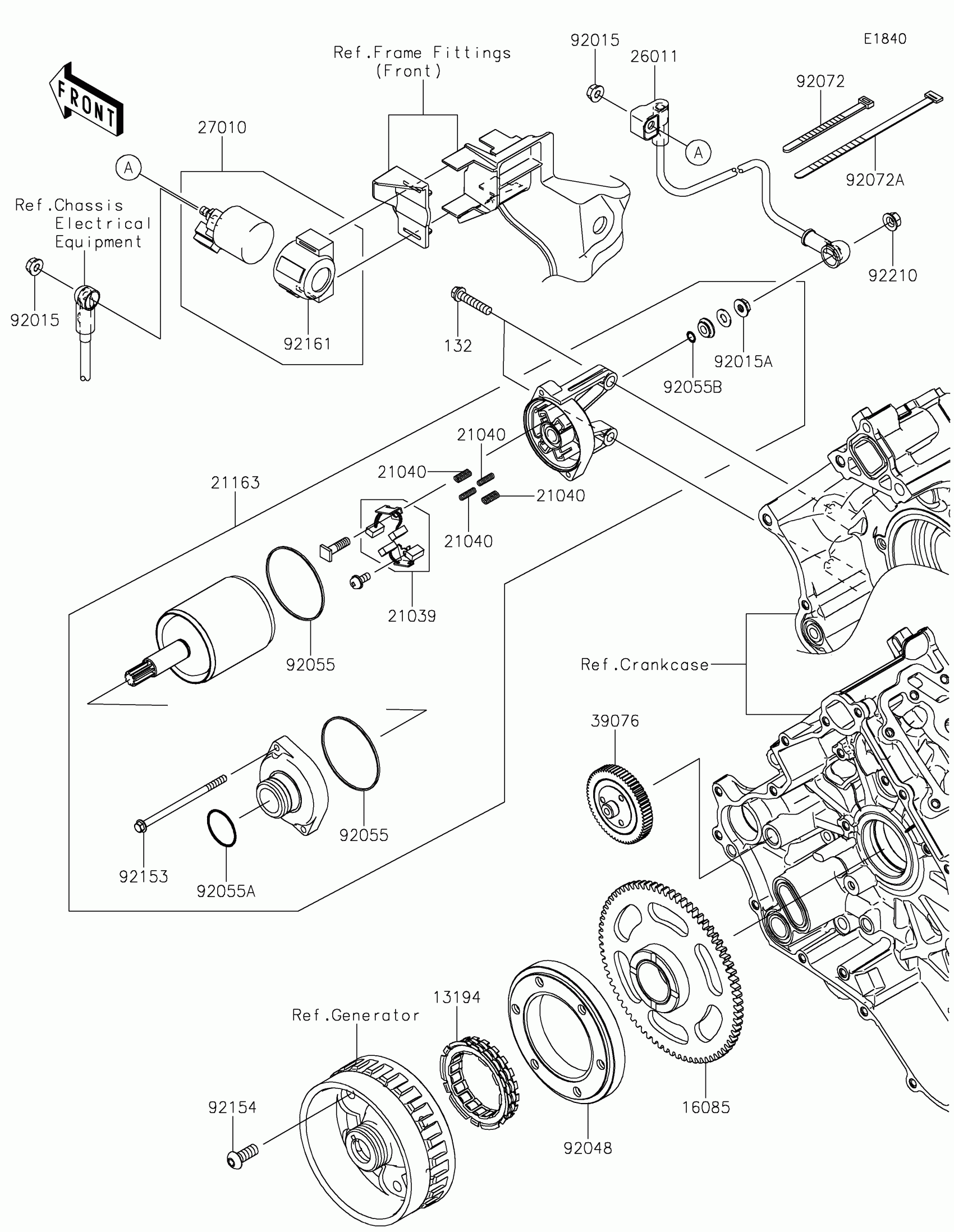

Kawasaki TERYX® LE Starter Motor Diagram

Description

Price

13194

CLUTCH-ONEWAY

13194-1094

$117.48

16085

GEAR,STARTER

16085-0591

$108.81

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0037

$763.64

26011

WIRE-LEAD,STARTER

26011-0800

$59.93

27010

SWITCH,MAGNETIC

27010-0766

$118.93

39076

LIMITER,STARTER

39076-0555

$246.88

92015

NUT,FLANGED,6MM

92015-1367

$2.63

92015A

NUT,STARTER MOTOR

92015-1476

$3.85

92048

RACE,ONEWAY CLUTCH

92048-0553

$113.52

92055

RING-O

92055-0136

$6.16

92055A

RING-O

92055-1276

$7.86

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92072

BAND,L=292.1

92072-3509

Unavailable

92153

BOLT

92153-1850

$11.42

92154

BOLT,TORX,8X20

92154-0421

$4.19

92161

DAMPER,MAGNETIC SWITCH

92161-1722

$18.34

92210

NUT,6MM

92210-0188

$1.81

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.95
