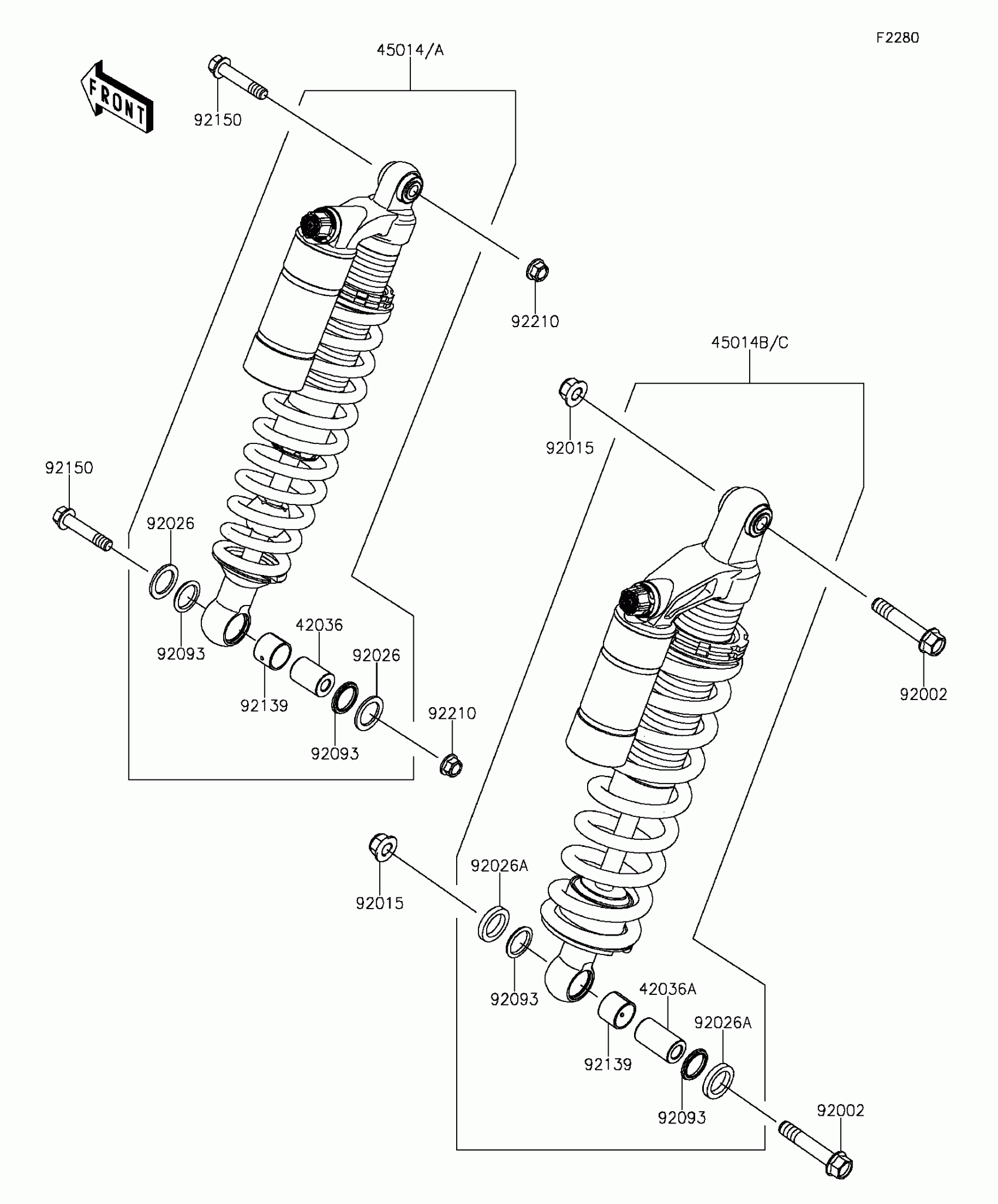

Kawasaki TERYX® LE Shock Absorber(s) Diagram

Description

Price

42036

SLEEVE

42036-0742

$14.37

42036A

SLEEVE

42036-0743

$14.37

45014

SHOCKABSORBER,FR,C.L.GREEN

45014-0412-42K

$964.06

45014B

SHOCKABSORBER,RR,C.L.GREEN

45014-0413-42K

$752.14

92002

BOLT,ROD,12MM

92002-1757

$9.66

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92026

SPACER

92026-0777

$2.47

92026A

SPACER

92026-0778

$2.47

92093

SEAL

92093-0609

$2.37

92139

BUSHING

92139-0809

$9.93

92150

BOLT,FLANGED,10X50

92150-1125

$5.61

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83
