Description

Price

53007

FRAME-SEAT,FR,LH

53007-0347

$113.08

53007A

FRAME-SEAT,FR,RH

53007-0348

$113.08

53045

HOOK-ASSY

53045-0019

$7.63

53061

BELT-SEAT,BUCKLE,SW.

53061-0038

$56.84

53061A

BELT-SEAT,BUCKLE

53061-0039

$27.99

53061B

BELT-SEAT,RETRACTOR,L=2500

53061-0040

$159.72

53066

SEAT-ASSY,BACK,BLK/SIL/GRN

53066-0394-41J

$441.88

53066B

SEAT-ASSY,BOTTOM,BLK/SIL/GRN

53066-0420-41Y

Unavailable

92145

SPRING,SEAT LATCH

92145-0022

$5.43

92154

BOLT,10X16

92154-1136

$7.25

92161

DAMPER,SEAT

92161-1489

$2.31

92200

WASHER,8.2X20.0X2.5

92200-0205

$2.68

130

BOLT-FLANGED,12X20

130BA1220

$2.84

132

BOLT-FLANGED-SMALL,8X22

132BA0822

$1.90

132A

BOLT-FLANGED-SMALL,6X14

132BB0614

$1.77

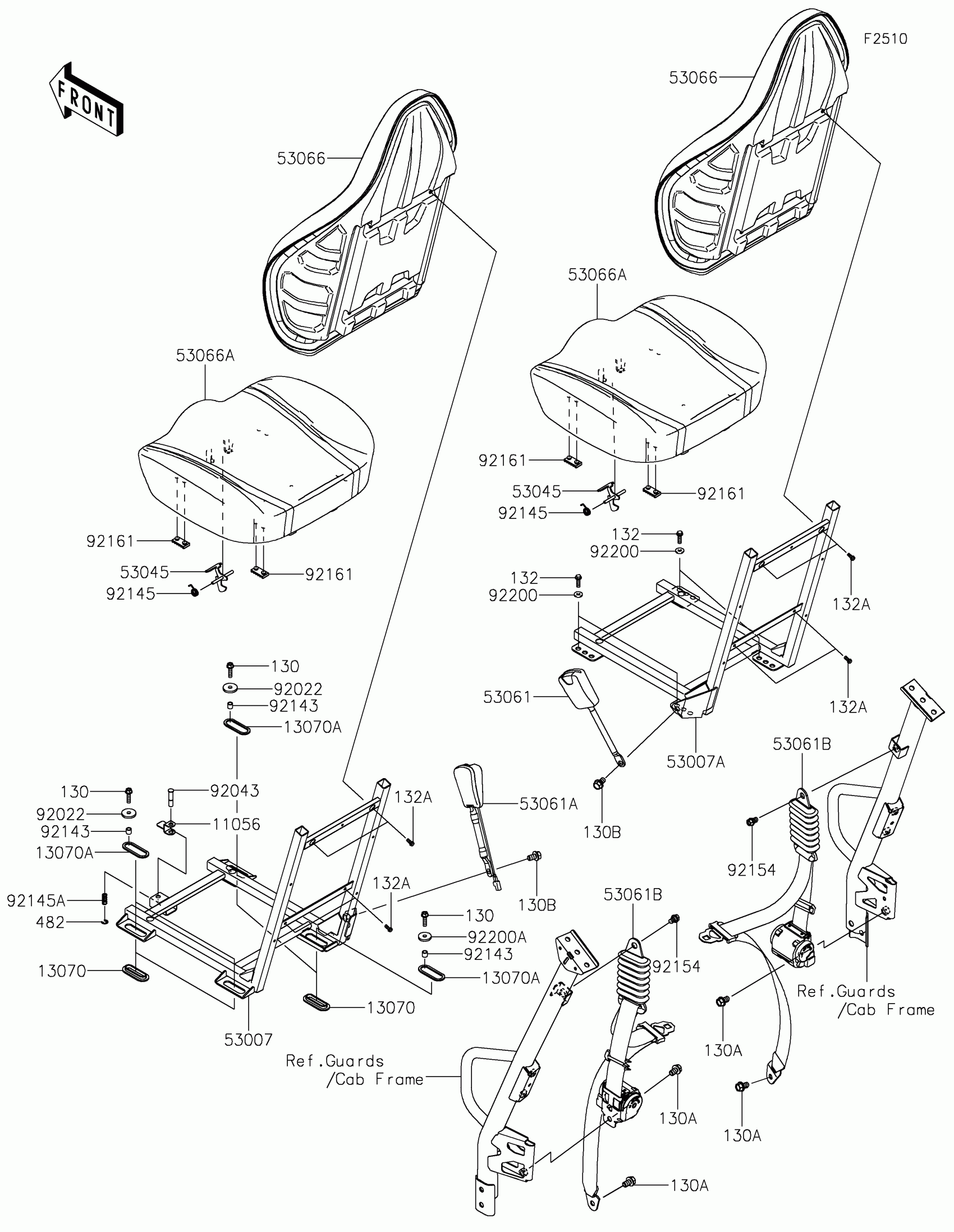

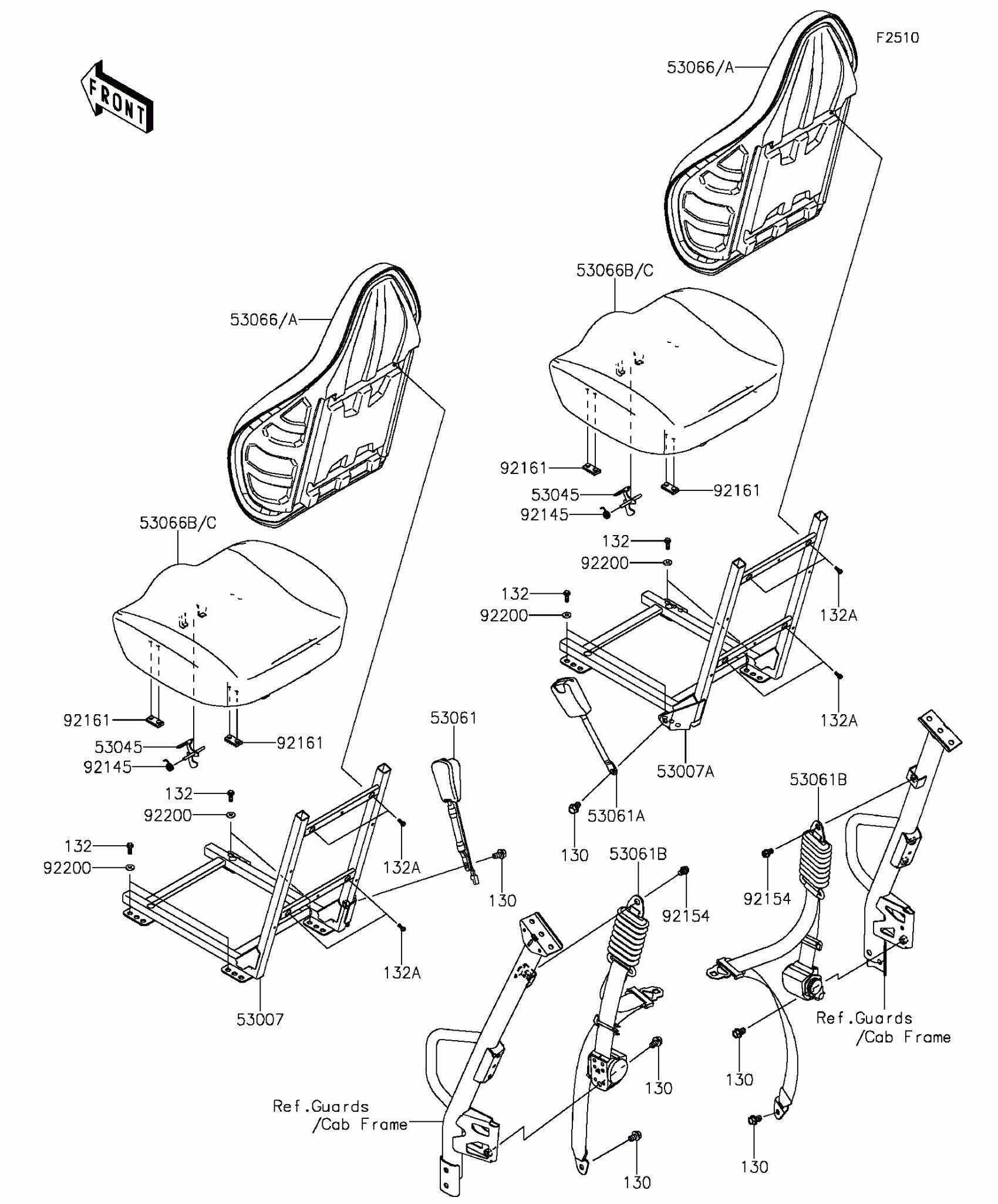

Kawasaki TERYX® LE Seat Diagram
