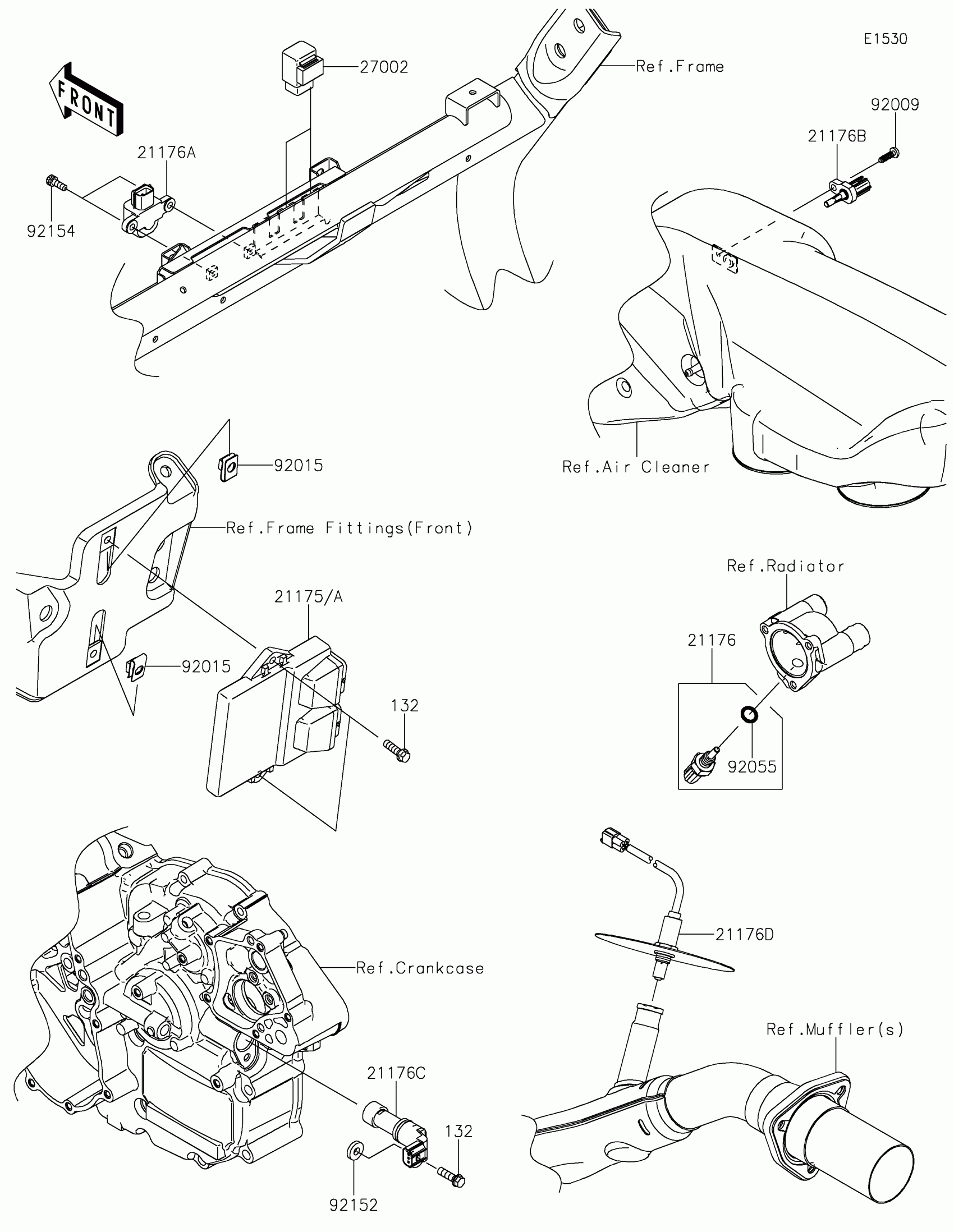

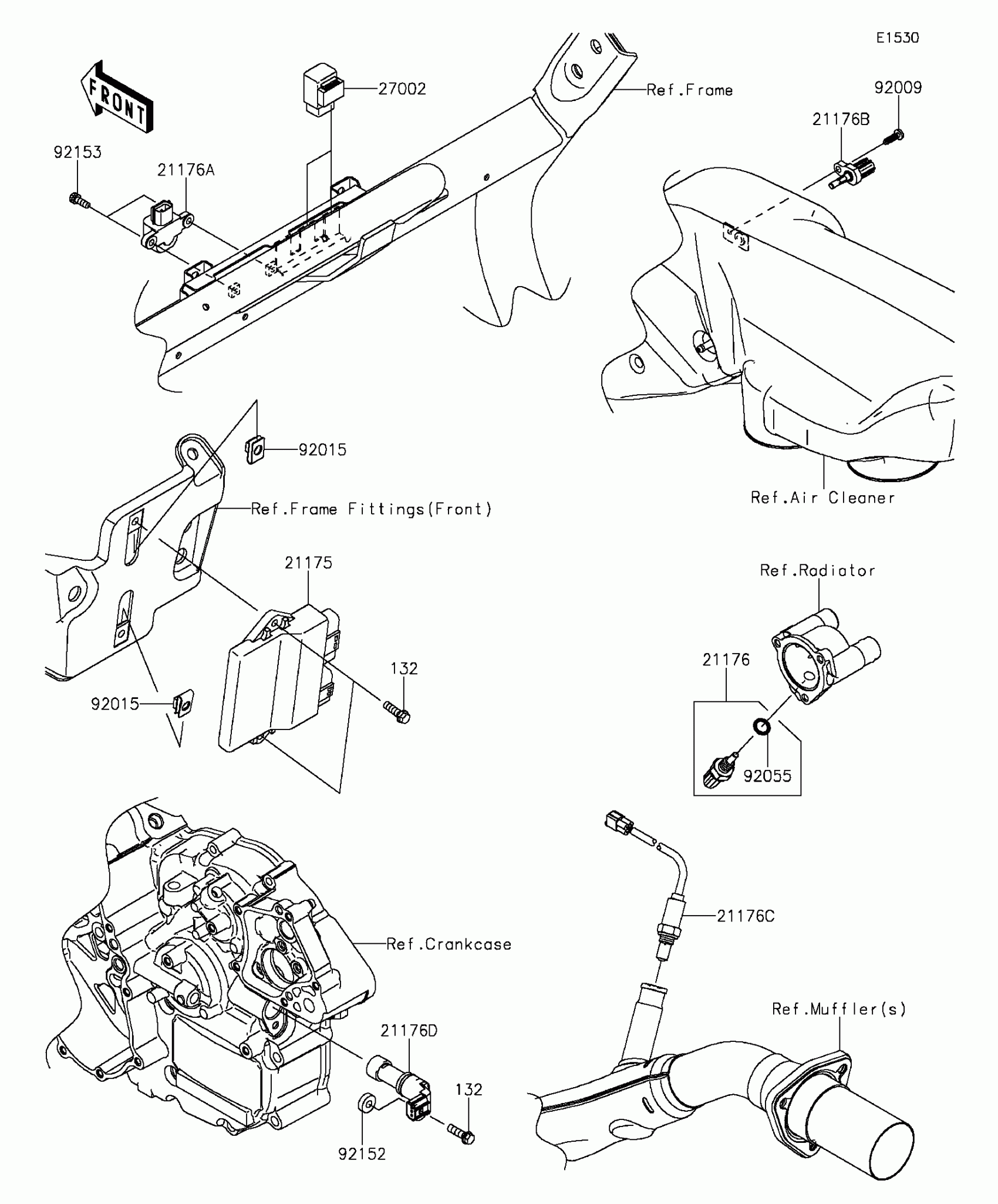

Kawasaki TERYX® LE Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-0966

$837.53

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

21176C

SENSOR,OXYGEN

21176-0114

$226.22

21176D

SENSOR,SPEED

21176-0712

$82.37

27002

RELAY-ASSY

27002-1062

$40.25

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92015

NUT,6MM

92015-1602

$5.61

92055

RING-O,9.5X1.9

92055-0016

$6.77

92152

COLLAR,6.5X16X4.8

92152-1729

$5.02

92153

BOLT,SOCKET,5X14

92153-1286

$1.20

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77
