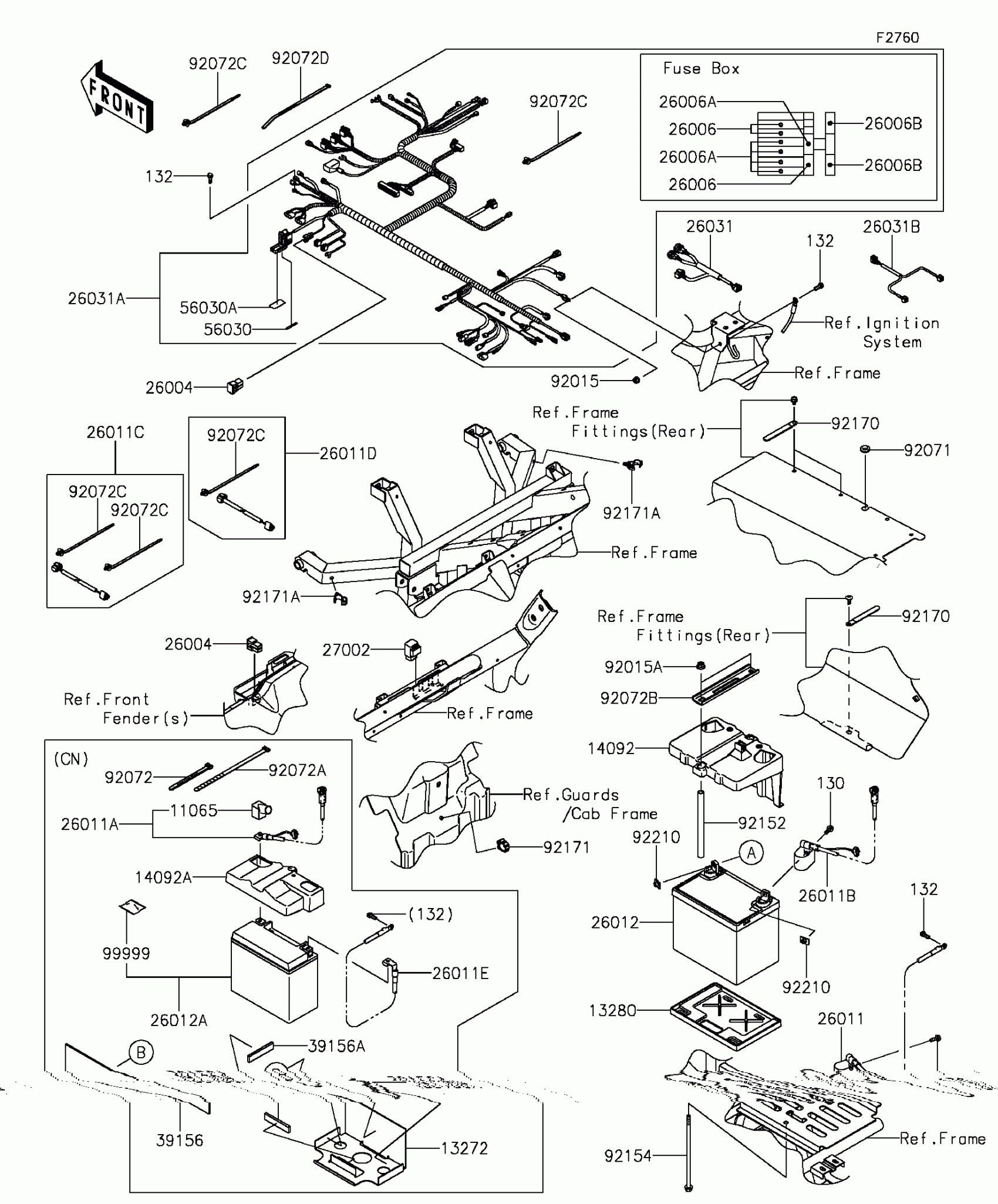

Kawasaki TERYX® LE Chassis Electrical Equipment Diagram

Description

Price

13280

HOLDER,BATTERY

13280-0709

$7.64

26004

FUSE-ASSY,40A

26004-1093

$4.21

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011C

WIRE-LEAD,HEAD LAMP,LH

26011-0842

$61.55

26011D

WIRE-LEAD,HEAD LAMP,RH

26011-0843

$56.70

26031

HARNESS,SUB,TPS

26031-1264

Unavailable

26031A

HARNESS,MAIN

26031-1441

$699.82

26031B

HARNESS,SUB,TAIL

26031-1563

$86.34

27002

RELAY-ASSY

27002-1062

$40.25

56030

LABEL,FUSE BOX,30A

56030-0404

$3.31

56030A

LABEL,FUSE BOX

56030-0703

$3.31

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92015A

NUT,FLANGED,8MM

92015-1406

$3.39

92071

GROMMET,10X20X6

92071-0733

$0.92

92072B

BAND

92072-0707

$7.44

92072C

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072D

BAND,L=292.1

92072-3509

Unavailable

92152

COLLAR,10.2X12.7X165.8

92152-1555

$2.58

92154

BOLT,FLANGED,8X185

92154-0889

$8.92

92170

CLAMP

92170-1925

$1.98

92171

CLAMP,BRAKE HOSE

92171-0316

$2.93

92171A

CLAMP,13MM DIA.

92171-1415

$1.69

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16
