2025 Kawasaki Teryx® KRX4™ 1000 Lifted Edition Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2025 Kawasaki Teryx® KRX4™ 1000 Lifted Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

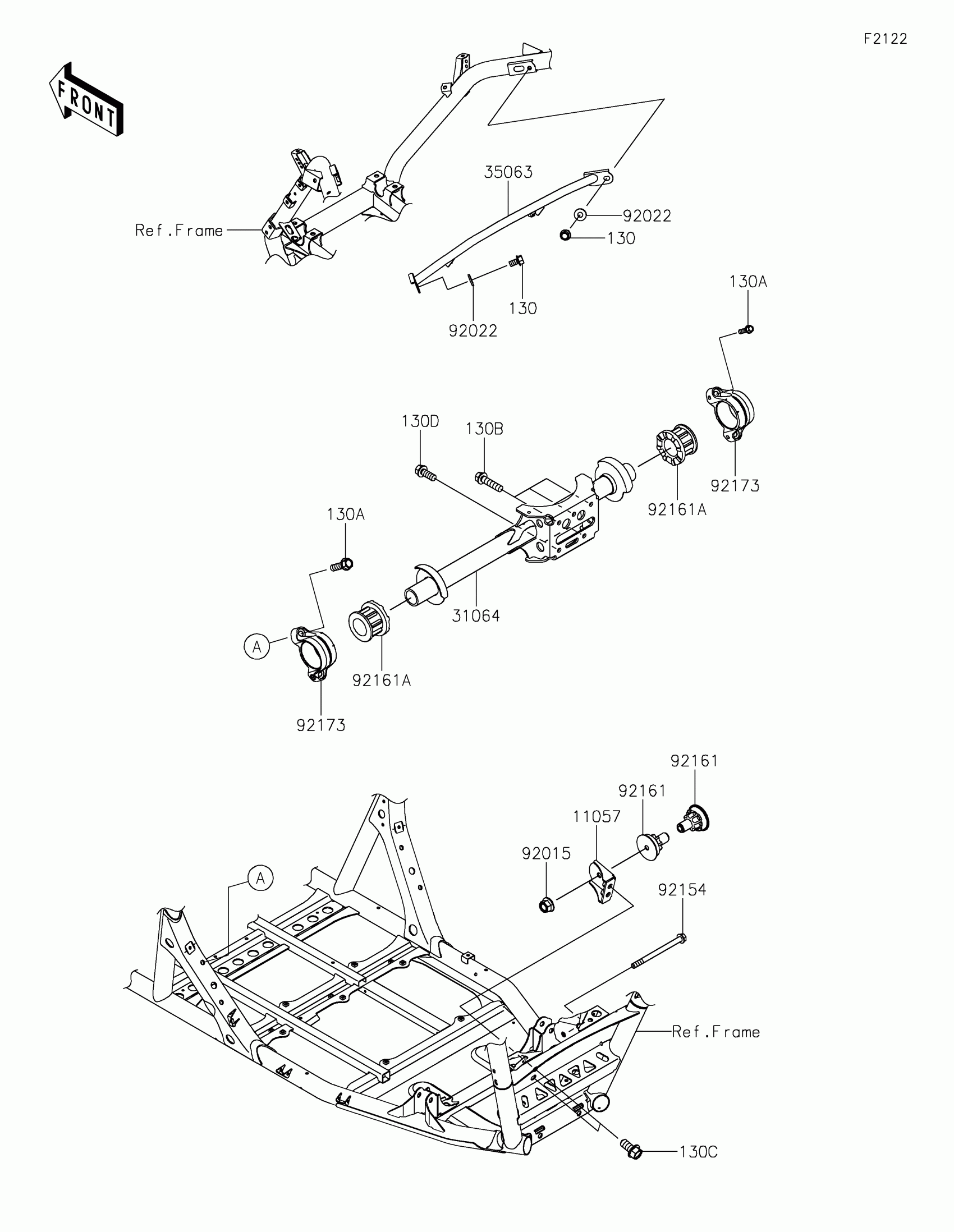

2025 Kawasaki Teryx® KRX4™ 1000 Lifted Edition Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RR

11057-2103

1

$10.12

In stock

31064

PIPE-COMP,FR

31064-0732

1

$271.46

In stock

35063

STAY,UPP

35063-1606

1

$41.28

In stock

92015

1

$7.04

In stock

92022

WASHER,8.2X19X2

92022-1533

1

$4.85

In stock

92154

BOLT,FLANGED,12X160

92154-3916

1

$18.22

In stock

92161

DAMPER

92161-2171

1

$35.55

In stock

92161A

DAMPER

92161-2205

1

$23.11

In stock

92173

CLAMP

92173-2399

1

$58.57

In stock

130

BOLT-FLANGED,8X14

130BA0814

1

$1.78

In stock

130A

BOLT-FLANGED,10X35

130CA1035

1

$5.35

In stock

130B

BOLT-FLANGED,10X40

130CA1040

1

$2.29

In stock

130C

BOLT-FLANGED,12X25

130CA1225

1

$6.16

In stock

130D

BOLT-FLANGED,10X25

130CB1025

1

$2.29

In stock
